Figure 23: Settings Menu; Figure 24: Settings Inputs Submenu - Tektronix PRISM User Manual

How to configure the instrument
Configuring SDI inputs The Single and Quad link buttons are only available when software option
MP-FMT-4K is present. If this option is not present, only a single input can be
configured.
Single input configuration. Perform the following procedures to configure a
Single signal input:
1. Touch the Settings icon ( ) to open the Settings menu.
2. Select Inputs to open the Inputs submenu.

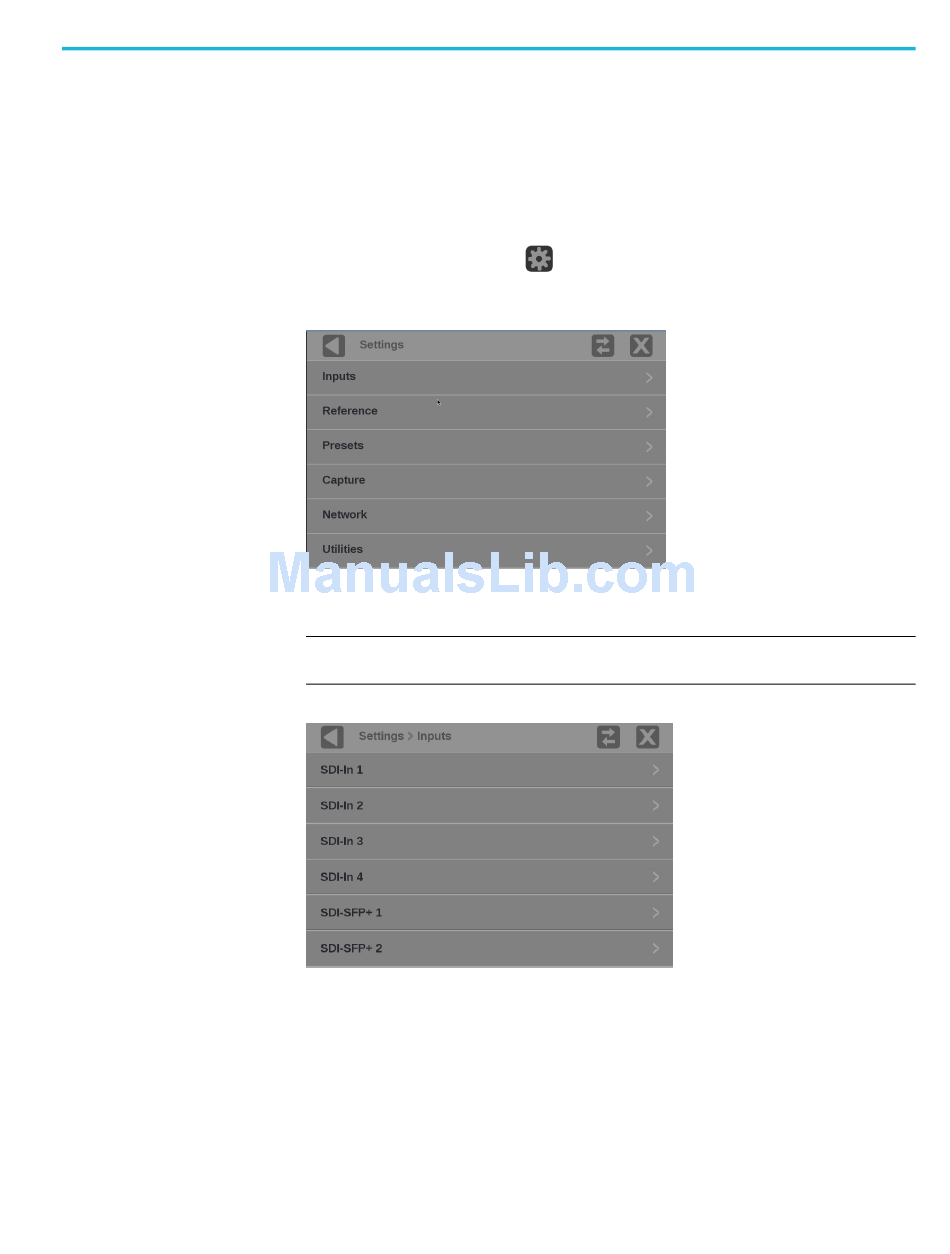

Figure 23: Settings menu

NOTE.
In the following figure are six virtual inputs to choose from. Inputs can be
given any meaningful name, (See page 47, To rename a signal input.)

Figure 24: Settings inputs submenu

3. Select an SDI input.
PRISM Media Analysis Platform User Manual 41
