Message Center

PRISM Media Analysis Platform User Manual
The Message Center enables you to view messages. For example, you can
view messages that allow you to eject devices mounted to the instrument. The
following steps show you how to eject a USB stick from the instrument using the
Message Center:
1. A number above the icon indicates the number of messages on the instrument.

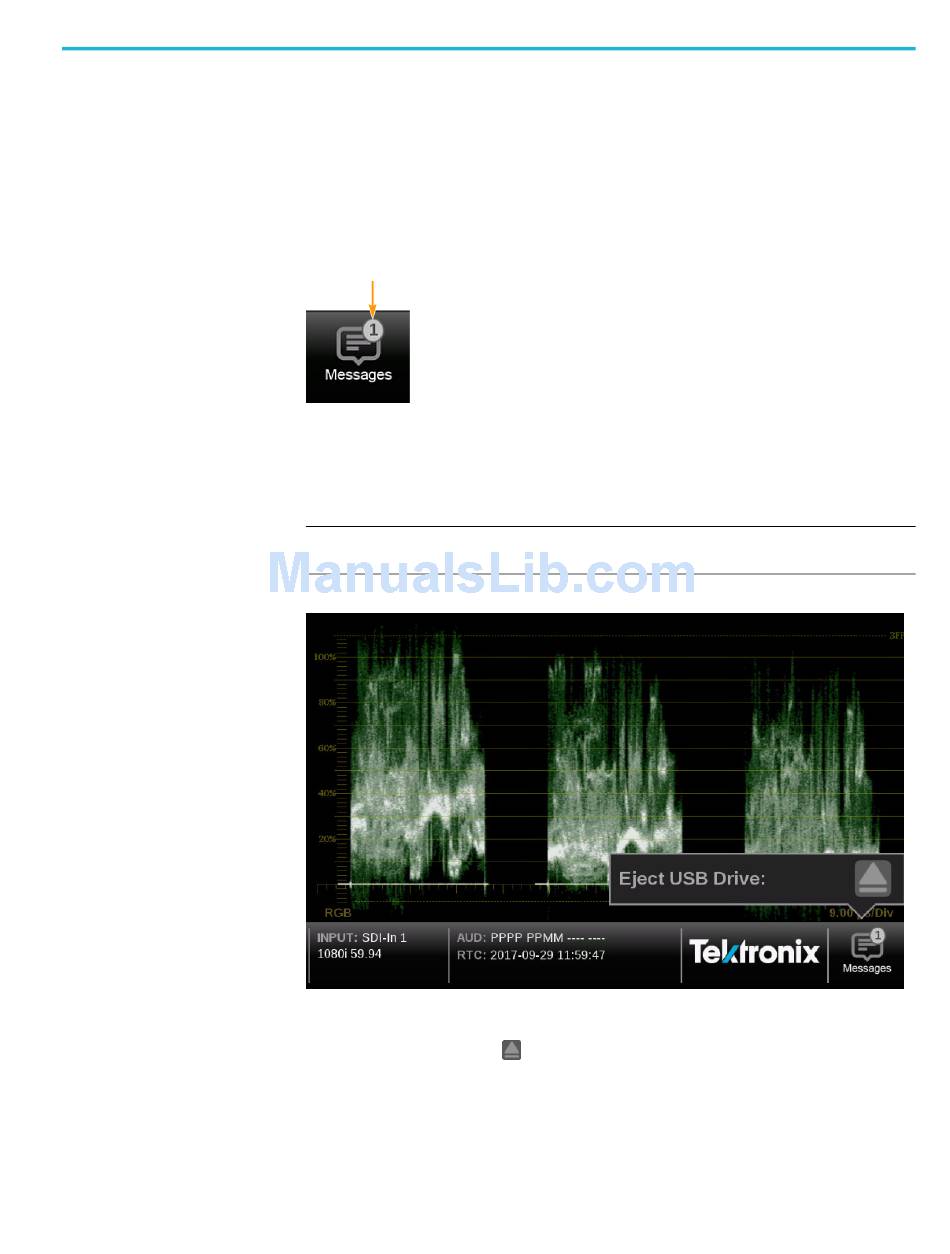

Figure 17: Messages icon with one message

2. Select the Messages icon to view the messages or devices mounted to the
instrument.
NOTE.
After using a USB stick, it must be unmounted using the Message Center
before removing it from the instrument.

Figure 18: Message Center popup window

3. Select the Eject icon ( ) to unmount the USB stick from the instrument.
4. Select the Messages icon again to hide the Message Center popup window.
