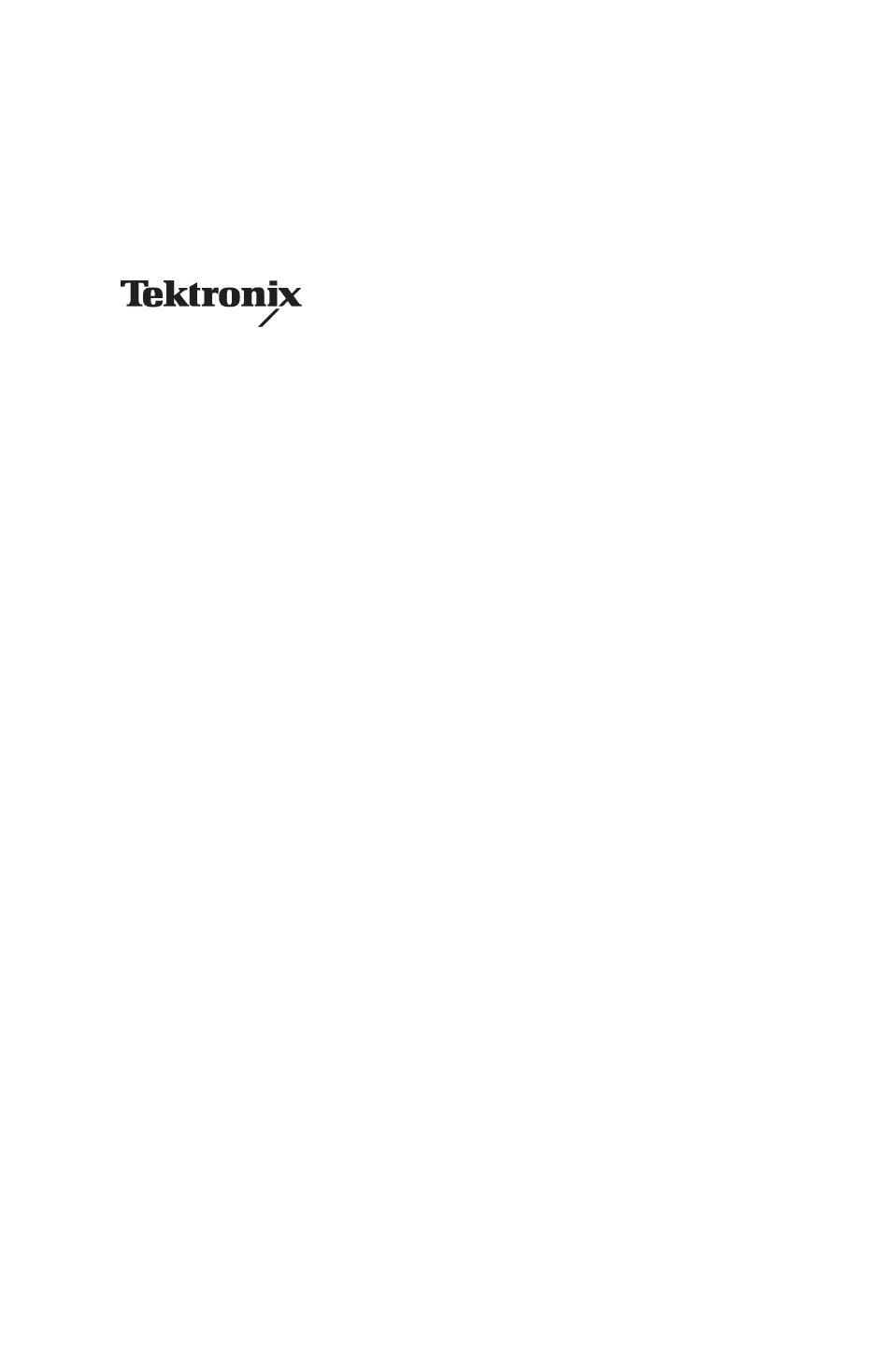

- Page 1 Instructions P2100 100 MHz 1X/10X Passive Probe 071-0774-01 P071077401 071077401...
- Page 2 Copyright Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. Tektronix, Inc., P.O. Box 500, Beaverton, OR 97077...
- Page 3 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
-
Page 4: Contacting Tektronix
1-800-833-9200 6:00 a.m. – 5:00 p.m. Pacific time Or contact us by e-mail: tm_app_supp@tek.com For product support outside of North America, contact your local Tektronix distributor or sales office. Service Tektronix offers a range of services, including support Extended Warranty Repair and Calibration services. -
Page 5: General Safety Summary
Do Not Operate With Suspected Failures. If you suspect there is damage to this product, have it inspected by qualified service personnel. Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. P2100 Probe Instructions... - Page 6 WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. Symbols on the Product. These symbols may appear on the product: Double CAUTION Protective Ground Insulated Refer to Manual (Earth) Terminal P2100 Probe Instructions...
-
Page 7: Features And Accessories

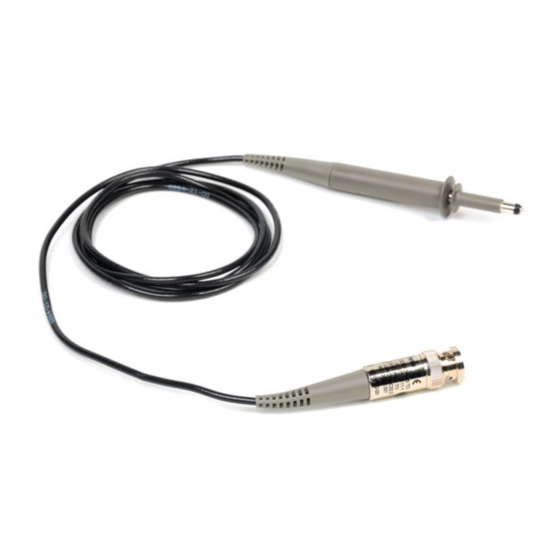

P2100 Passive Probe The P2100 is a compact, 1.5 meter passive probe with selectable 1X/10X attenuation. The probe is designed for use with general purpose oscilloscopes with input capacitance between 18 and 35 pF. There are no user-serviceable parts in the P2100 probe. - Page 8 P2100 Passive Probe Table 3: Features and standard accessories (Cont.) Feature/Accessory Description Adjustment tool. Used to adjust probe compensation. Access the adjustment through the opening near the BNC connector. Replacement part number: 003-1873-00 Instructions. Provides instructions for operating the probe.
-
Page 9: Probe Compensation
P2100 Passive Probe Probe Compensation Due to variations in oscilloscope input characteristics, probe low-frequency compensation may need adjustment after moving the probe from one oscilloscope to another. If a 1 kHz calibrated square wave displayed at 1 ms/division shows significant differences between the leading and trailing edges, perform the following steps to optimize low-frequency compensation. -
Page 10: Specifications
P2100 Passive Probe Specifications Table 4: Electrical characteristics 10X position 1X position Bandwidth DC to 100 MHz DC to 7 MHz Attenuation ratio 10:1 Compensation Range 18 pF-35 pF All oscilloscopes with input ± 2% ± 2% Input resistance 10 M Input capacitance 14.5 pF-17.5 pF... - Page 11 P2100 Passive Probe Table 5: Certifications and compliances EC Declaration of Compliance was demonstrated to the following specification as Conformity listed in the Official Journal of the European Communities: Low Voltage Directive 73/23/EEC as amended by 93/68/EEC: EN 61010-1/A2 Safety requirements for electrical equipment...
- Page 12 P2100 Passive Probe Table 6: Environmental characteristics Temperature Operating 0° C to +50° C Nonoperating –20° C to +60° C Cooling Method Convection ≤ 90% relative humidity Humidity +40° C or below ≤ 60% relative humidity +41° C to +50° C...
