Application information
Jitter Display application
settings menu
104
The following options adjust the Jitter Display application:
The maximize icon ( ) expands the Jitter Display application tile to the full
screen. The minimize icon ( ) collapse the tile back to its original size.
NOTE.
The display readouts will only display when the tile is expanded to full
screen.
The expand icon ( ) expands or collapses the tile vertically. If the tile
expands it will cover the tile above or below, depending on whether you are
expanding the top or bottom quarter tile. Use the collapse icon ( ) to bring
the tile back to its original size.
The gear icon ( ) opens the Jitter Display application settings menu to adjust
the tile settings.
NOTE. After the Jitter Display application settings menu is opened, a move icon
( ) is displayed. Press this icon to move the settings menu horizontally.
The following figure shows the different choices in the Jitter Display application
settings menu.

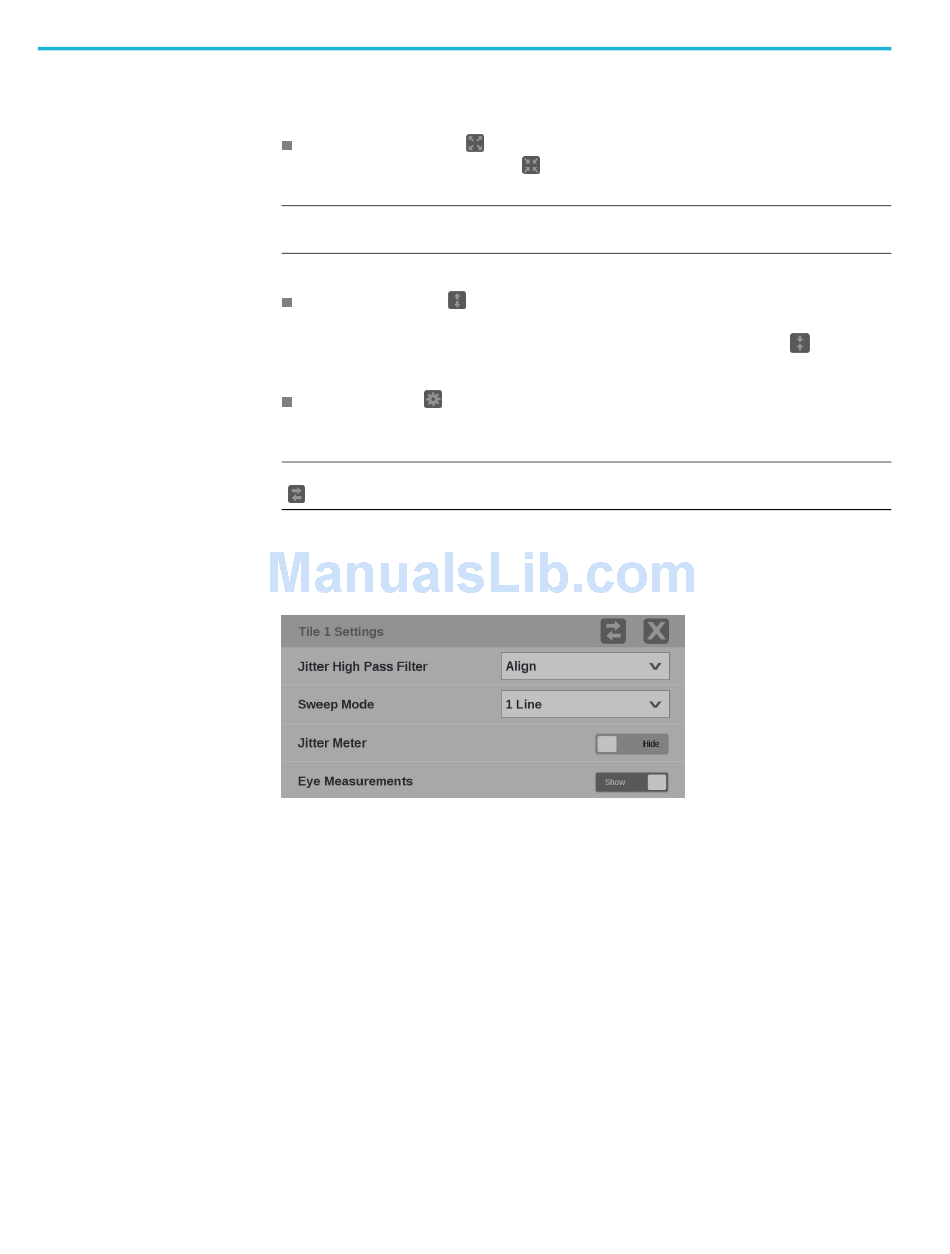

Figure 85: Jitter Display application settings menu

Jitter High Pass Filter. Use the drop-down menu to select the high pass filter to
Timing, Align, 10 Hz, 100 Hz, 1 kHz, 10 kHz, or 100 kHz.
Sweep Mode. Use the drop-down menu to select 1 Line, 2 Line, 1 Field, or 2
Field
Jitter Meter. Use the button to Hide or Show the jitter meter at the top of the
display.
