Figure 62: Application Bar Capture - Tektronix PRISM User Manual

How to take a stream
capture
PRISM Media Analysis Platform User Manual
3. On the application bar select the Capture icon. A screenshot is saved to the
device.

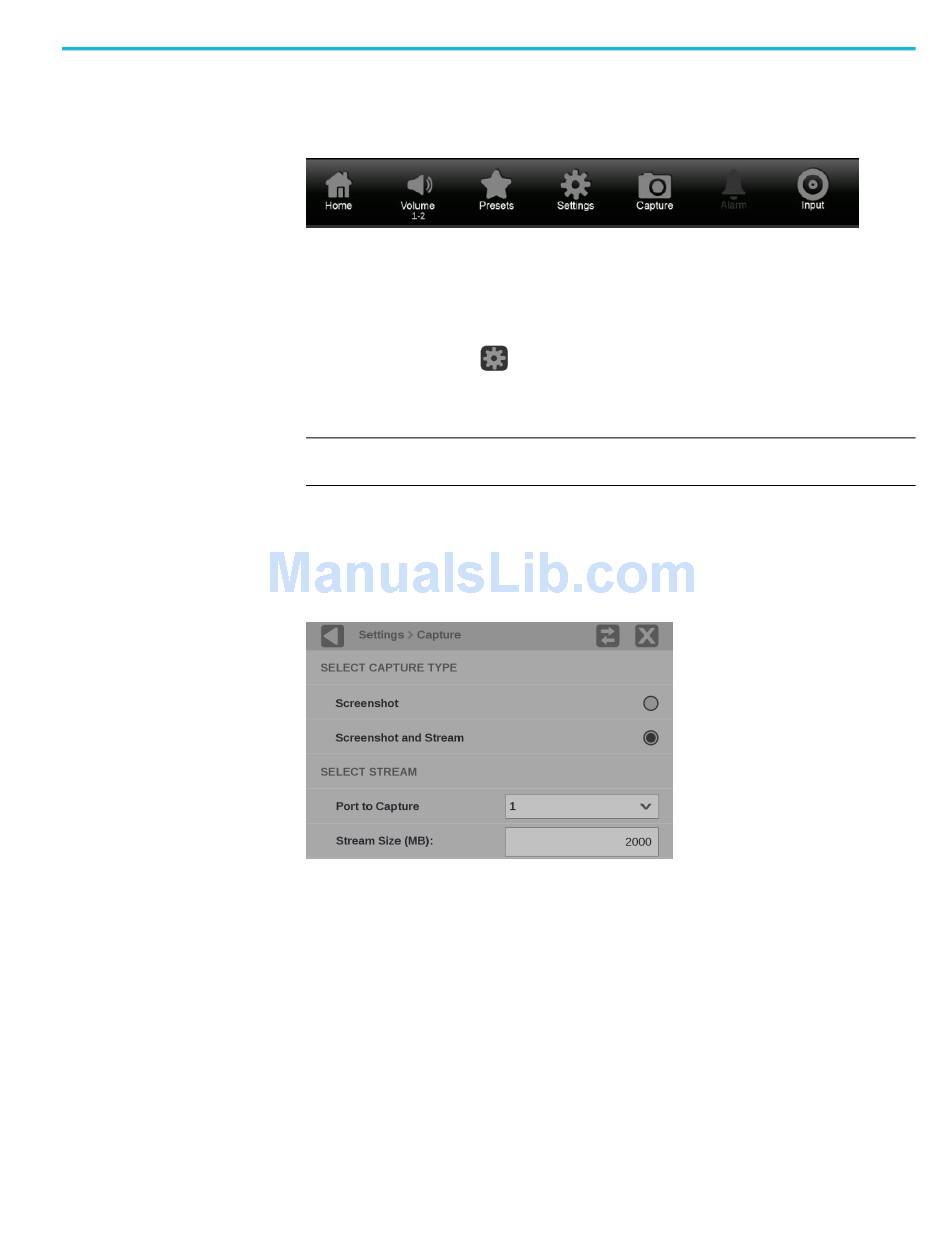

Figure 62: Application bar Capture

1. Verify there is a USB stick connected to the PRISM monitor.
2. Select the Settings
3. From the Settings menu, select Capture.
NOTE. If the Capture configuration menu does not appear under the settings
menu, option MP-IP-CAP and configuring stream captures is disabled.
4. Select Screenshot and Stream under Capture Type.
5. Use the Port to Capture drop-down menu to select from inputs 10G SFP+ 1
or 2.
Figure 63: Selecting Screenshot and Stream
icon.
