MPX SFP+ module
installation

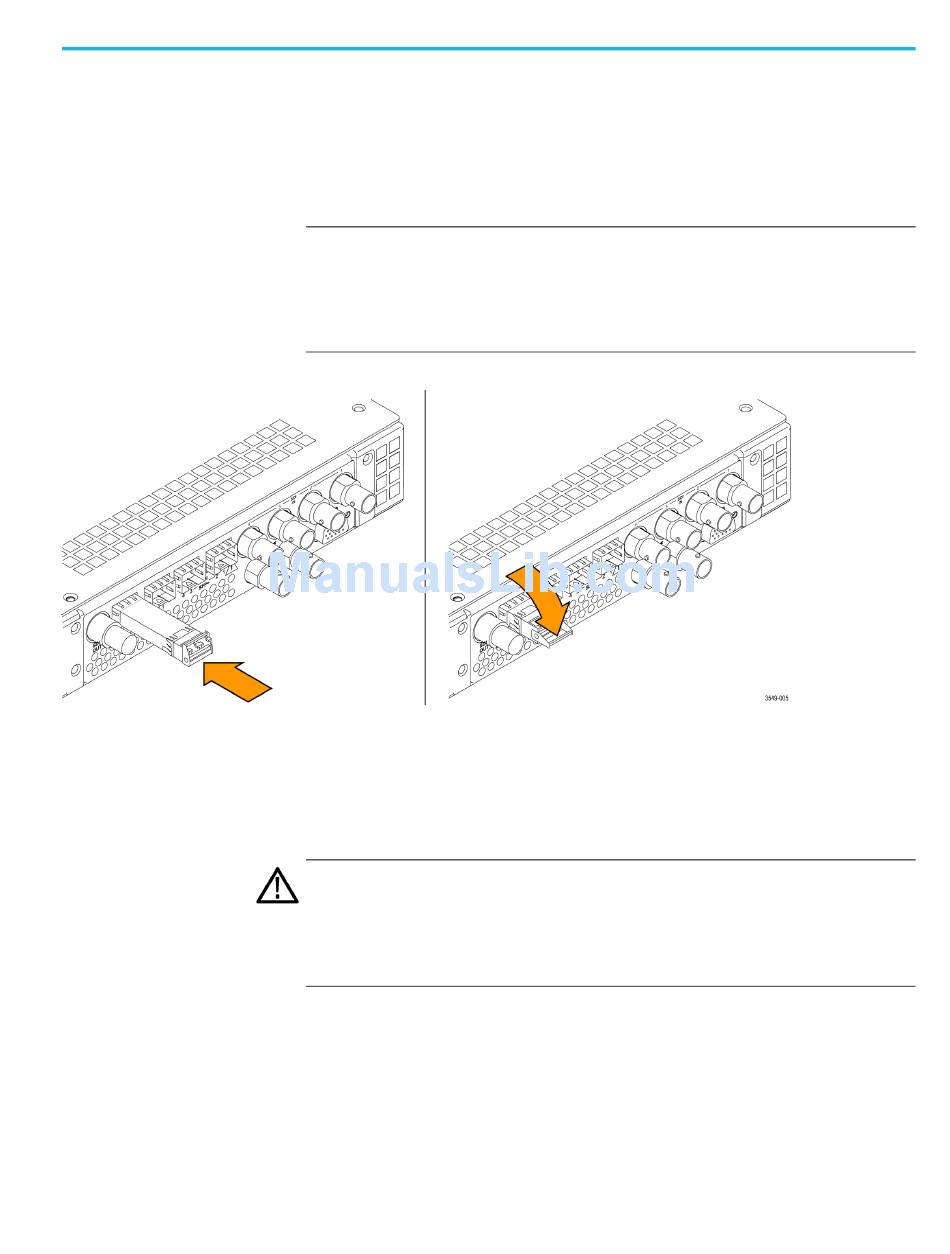

Figure 11: Installing and removing an optical SFP+ module on an MPX monitor

SFP+ module
transportation
PRISM Media Analysis Platform User Manual
To install an SFP+ module on an MPX monitor, insert the SFP+ module into the
SFP+ connector. The module will latch into place when fully inserted.
To remove the SFP+ module, pull down on the latch and then pull the module out
of the SFP+ connector. (optical SFP+ module shown).
NOTE.
To ensure you are using the correct SFP+ connectors, the 10 GbE and SDI
SFP+ connectors are marked on the back of the MPI (See page 22, MPI rear
panel connectors.) and MPX. (See page 25, MPX rear panel connectors.)
An optical SFP+ module is shown above. Other types of SFP+ modules may
have different latching mechanisms.
CAUTION.
To prevent static damage to the SFP+ module, if you remove the SFP+
module from the instrument, always transport the SFP+ module in a anti-static
bag or container.
To prevent possible damage to the PRISM monitor and SFP+ modules, remove
the SFP+ modules before transporting the PRISM monitor.
Getting started
19
