PRISM Media Analysis Platform User Manual
Install instrument(s) in the MPI dual rack cabinet. After you install the dual rack
cabinet in the equipment rack, perform the following steps to install instrument(s)
in the cabinet:
1. Install an MPI monitor in the dual rack cabinet: (See Figure 1.) (See
Figure 2.) (See Figure 3.)
a. Slide an MPI monitor into the left slot in the dual rack cabinet.
NOTE.
For the MPI-RACK-MW cabinet, the MPI monitor must be installed in
the left slot of the cabinet. For the MPI-RACK-MM cabinet, you can install
the MPI monitor in the left or right slot of the cabinet.
b. Use two screws (item 3 in Table 2) to secure the instrument in the dual
rack cabinet. The screws attach to the top right and bottom left holes in
the instrument chassis as viewed from the rear.
c. Connect the cables from the USB ports and headphone jack on the dual
rack cabinet to the rear of the instrument. (See Figure 4.) You can connect
the USB cables to either set of USB ports on the rear panel.
d. Connect power, signal, and Ethernet cables to the instrument as needed.
See the PRISM Installation and Safety Instructions manual for information
about making signal connections to the instrument.

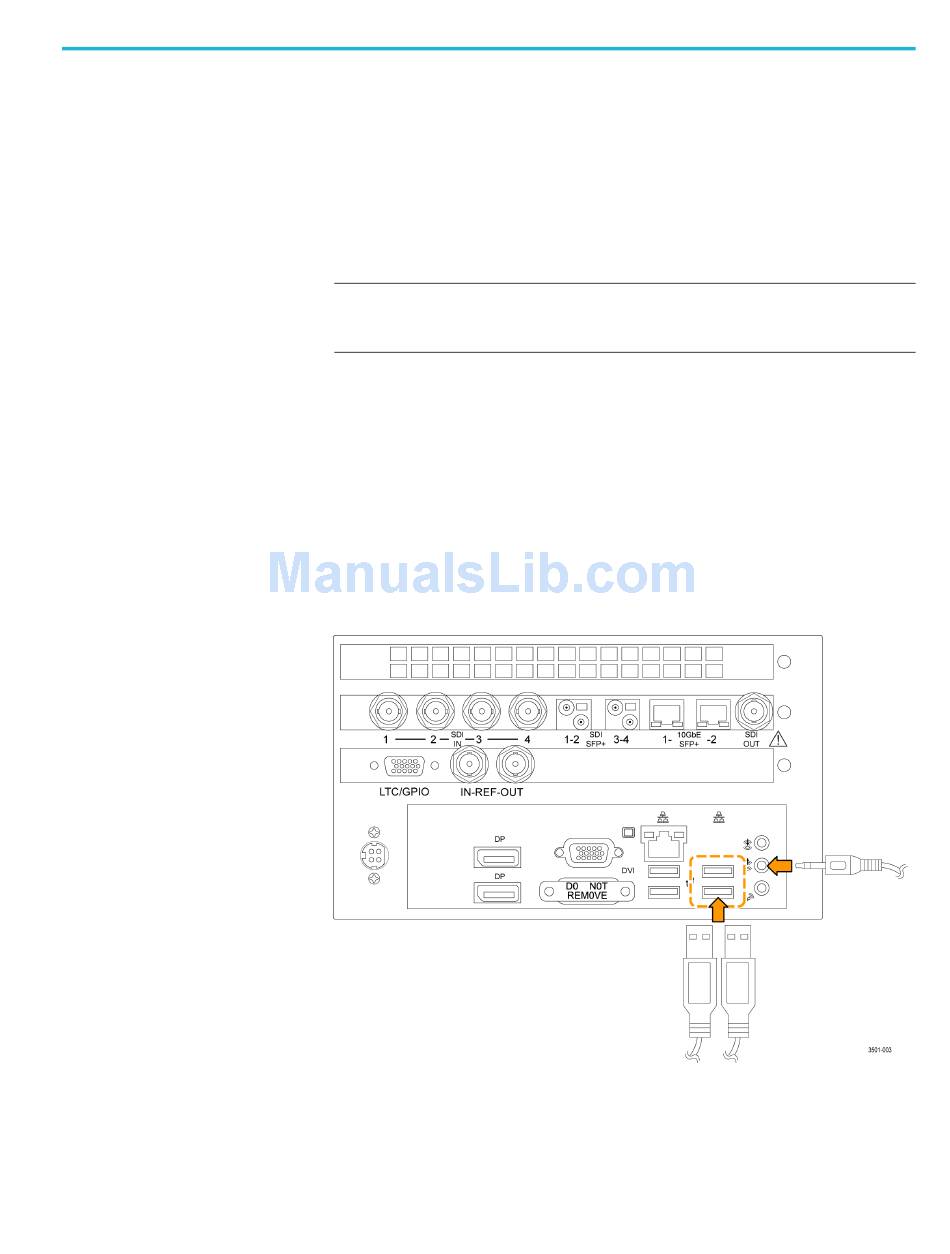

Figure 4: Connecting the rack cabinet USB and audio cables to the MPI monitor

Getting started
11
