Diamond application
settings menu
PRISM Media Analysis Platform User Manual
The expand icon ( ) expands or collapses the tile vertically. If the tile
expands it will cover the tile above or below, depending on whether you are
expanding the top or bottom quarter tile. Use the collapse icon ( ) to bring
the tile back to its original size.
The gear icon ( ) opens the Diamond application settings menu to adjust
the tile settings.
NOTE.
After the Diamond application settings menu is opened, a move icon ( )
is displayed. Press this icon to move the settings menu horizontally.

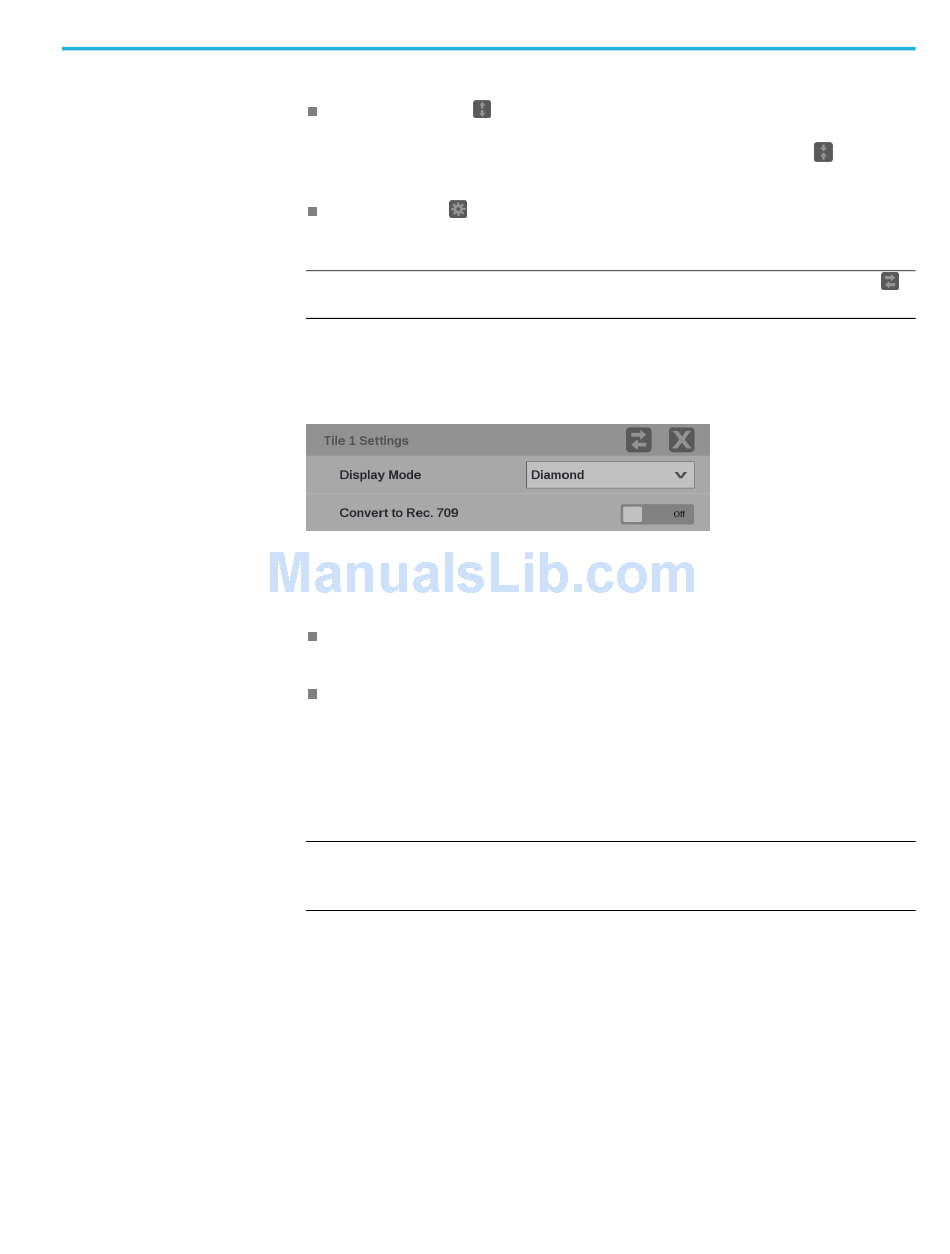

The following figure shows the different choices in the Diamond application
settings menu.

Figure 77: Diamond application settings menu

Display Mode. Use the drop-down menu to select one of the following selections:
Diamond. The Normal Diamond display shows Gamut violations of the SDI
input if translated to RGB color space.
Split Diamond. The Split Diamond display offsets the two halves of the
Diamond to allow you to better see negative RGB Gamut errors.
Convert to Rec. 709. Turn this setting On to allow the trace displays to convert
the Gamma and Color Gamut settings for the signal to SDR Narrow and BT. 709
(requires Option MP-PROD).
NOTE.
Convert to Rec. 709 auto converts to BT.709, otherwise the graticule
selection must be manually changed (See page 53, How to configure the
instrument for HDR / WCG monitoring.)
Application information
97
