Application information

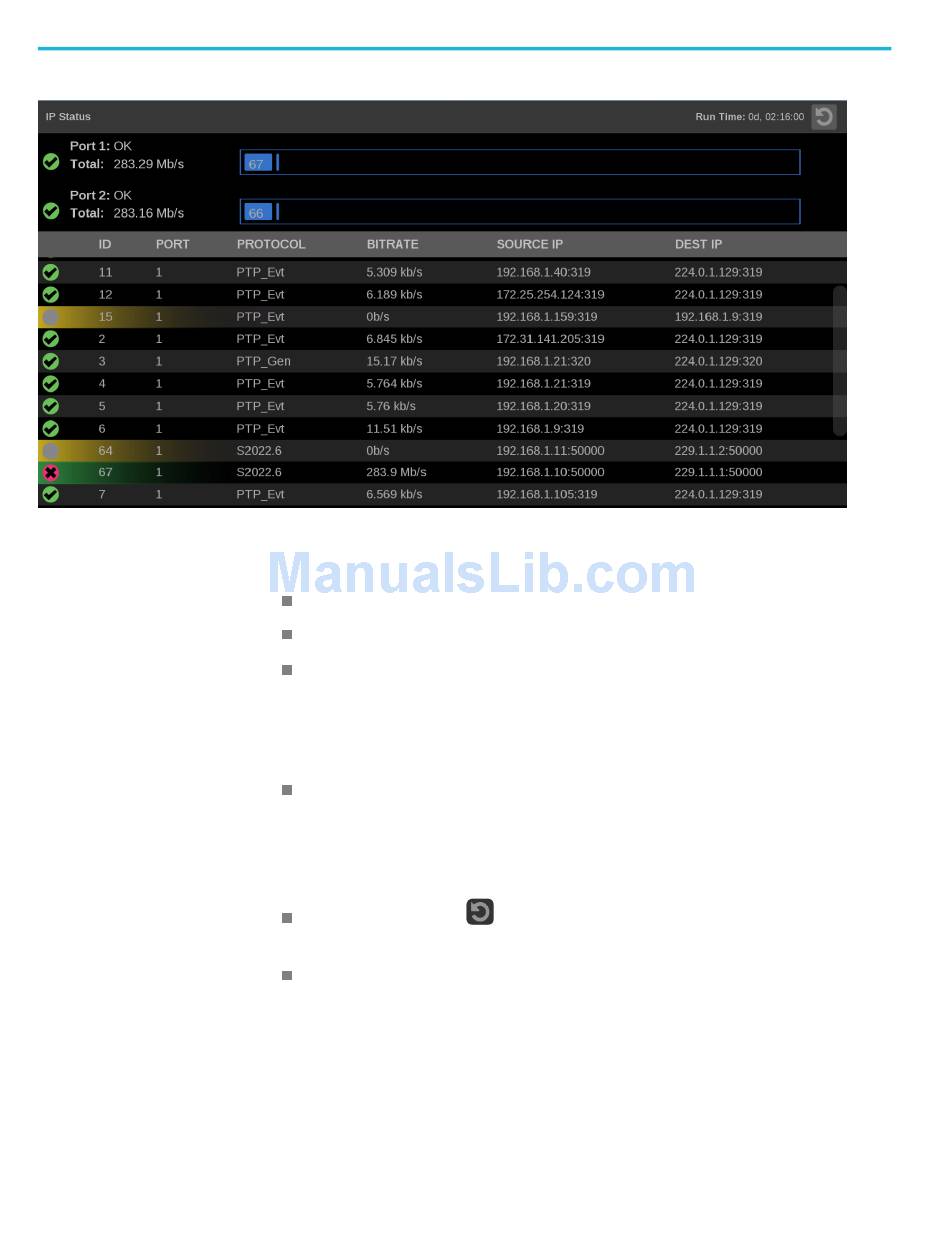

Figure 104: IP Status application with yellow and green gradients

Elements of the IP Status
application display
124
Port 1 and Port 2: Status of Port 1 and Port 2.
Total: Shows the total bit rate of the video in the IP stream.
IP stream bandwidth bar: The blue bar outline at the top of the display
represents the total bandwidth of the 10GbE pipe (10.3125 Gb/s). The blue
bars inside the outline show the relative bandwidth size of items in the IP
stream compared to the total available bandwidth of the stream. Numbers
inside the blue bars correspond to the ID numbers listed in the display.
Run Time. The instrument maintains a running IP Status Session. The Run
Time readout displays the amount of time that has elapsed during the current
IP Status Session. The time is displayed as "DD, HH:MM:SS", where DD
is the number of days, HH is the number of hours, MM is the number of
minutes, and SS is the number of seconds.
Clear icon. Use the
will appear in the list in the order they are detected.
Yellow gradient: When an item in the list has a yellow gradient it indicates
the item was previously detected in the stream but is no longer present. The
yellow gradient can also indicate messages, which occur only for a few
icon to reset the status session. After a reset, items
PRISM Media Analysis Platform User Manual
