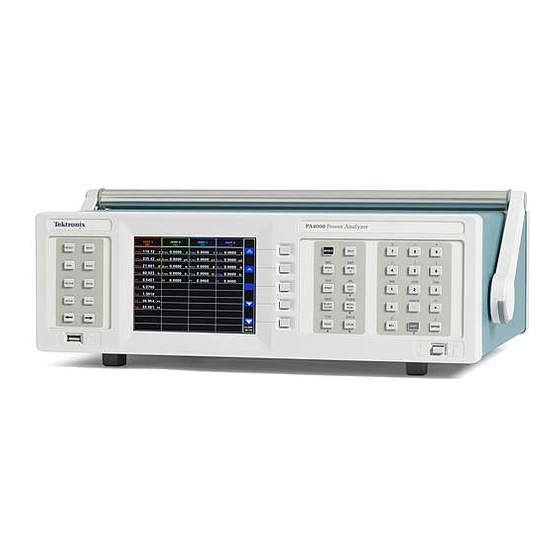

Summary of Contents for Tektronix PA4000

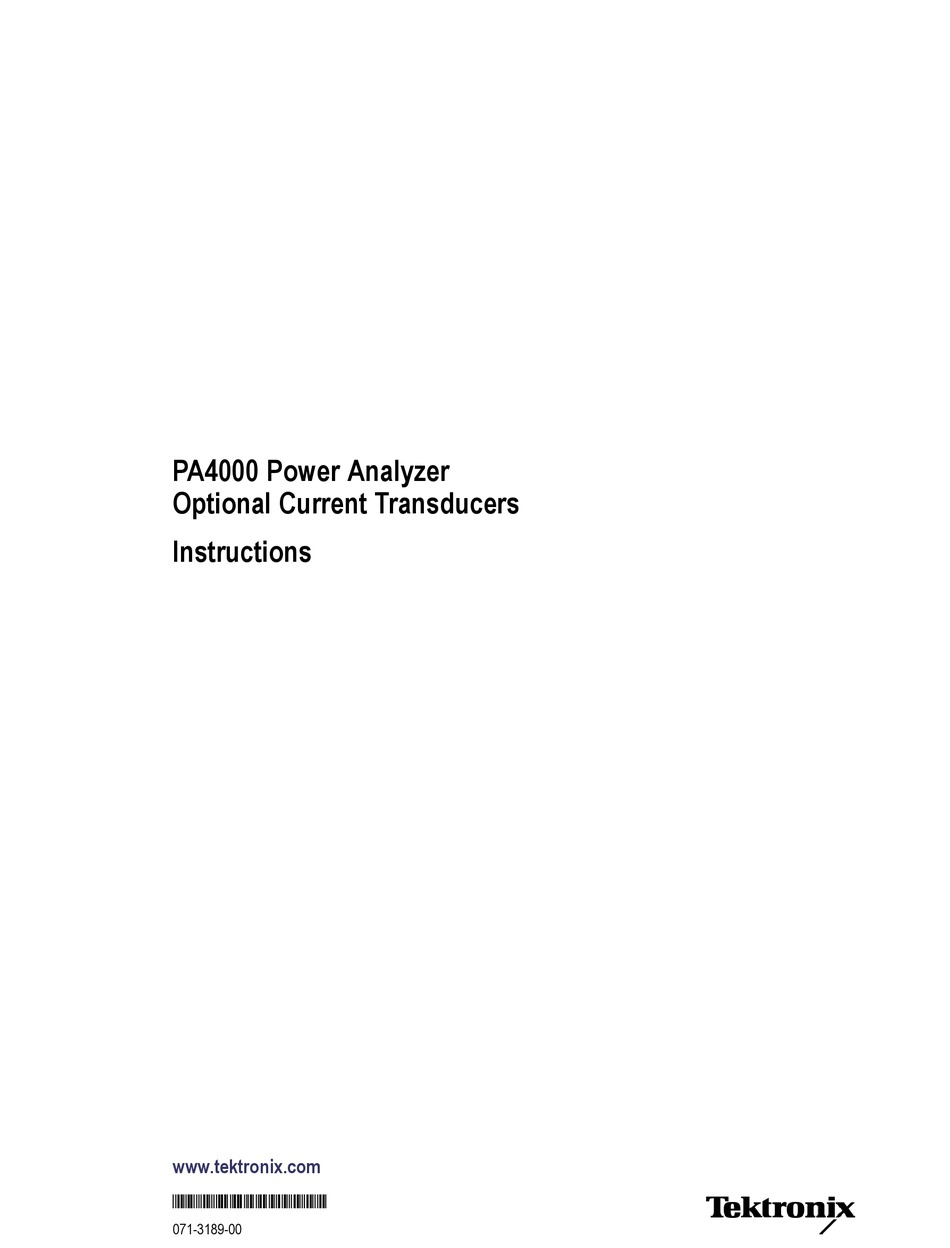

- Page 1 PA4000 Power Analyzer Optional Current Transducers Instructions www.tektronix.com *P071318900* 071-3189-00...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 3: Specifications
Current transducer instructions The high-accuracy fixed core current transducers that are available for the Tektronix PA4000 Power Analyzer are described on the following pages. These transducers are sourced from LEM, a high-quality electronic component supplier. Included with the transducers are Tektronix-designed interface cables that provide easy connections to the PA4000 Power Analyzer. -
Page 4: Standard Accessories
The transducers that are covered in these instructions all use a 1.3–meter long interface cable that connect to the 1 A and ALO inputs on the rear of the PA4000. However, depending on the transducer series and model, an adapter may be included to complete the connection to the transducer or to an external power supply. - Page 5 Current transducer instructions CT-M series transducers All CT-M series transducers include a DB-sub 9-pin to 3-pin adapter, which mates the interface cable to the 3-pin connector on the transducers. Figure 2: CT-M series transducer connections PA4000 Power Analyzer...
- Page 6 CT-S series transducers All CT-S series transducers use the standard interface cable to make the connection to the PA4000 power analyzer. The CT-1000-S model is powered by an external power supply, and is described on the following page. Figure 3: CT-S series transducer connections...
- Page 7 The adapter is included with the CT-1000-S transducer. A suitable power supply is available from Keithley; order model number 2220. The Keithley 2220 power supply is capable of powering two CT-1000-S transducers. Figure 4: CT-1000-S transducer connections PA4000 Power Analyzer...
-
Page 8: Recommended Accessories
Power supply, dual output, ±15 V @ 1 A each (order directly from Keithley) Keithley model number 2220 Connections between CT-M series transducers and the PA4000 require a cable adapter. Order Tektronix part number 174-6353-00. The CT-1000-S transducer requires an external power supply; Keithley model number 2220 is a recommended supply. -
Page 9: Warranty Information
Do not use if cracked or otherwise damaged. Do not operate in wet/damp conditions. Do not operate in an explosive atmosphere. Keep product surfaces clean and dry. Warranty information For warranty information, go to www.tektronix.com/warranty. PA4000 Power Analyzer...
