MPX front panel controls

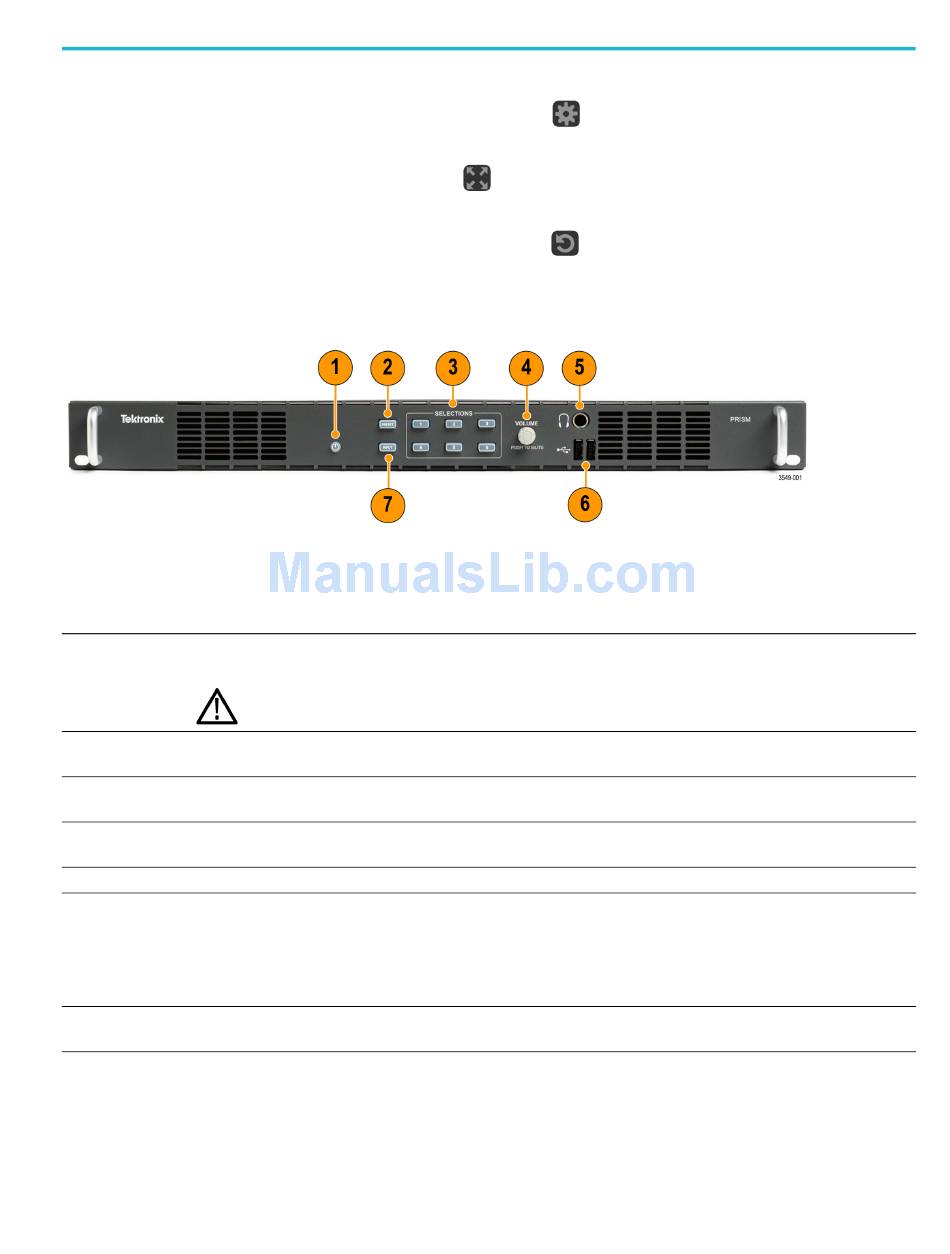

Figure 21: MPX front panel controls

Item number
(See Figure 21.)
1
2
3
4
5
6
7
1
When you use the PRESET and INPUT buttons, the associated menus appear on the display. The menus close after a short time-out period. Similarly, when you
use the VOLUME control, the volume slider and mute controls appear on the display and close after a short time-out period.
PRISM Media Analysis Platform User Manual
5. If available, touch or tap the
menu for the application.
6. Touch or tap the
display to full screen.
7. If available, touch or tap the
Description
Power / Standby button. Press the button to turn the instrument on or off. To completely remove
power from the instrument, remove the power cord.
CAUTION.
To prevent data loss, it is strongly recommended that you first shut down the instrument
using the power button or the Settings > Utilities menu before disconnecting the power cord.
PRESET button. Press the button once to prepare the instrument for a preset selection from preset
Group A using the SELECTIONS buttons (1-6). Press the button repeatedly to select preset Group B-F.
SELECTIONS buttons. After pressing the PRESET or INPUT button, press one of the SELECTIONS
buttons (1-6) to recall an instrument preset or to select an input to monitor.
VOLUME control. Turn the VOLUME control to adjust the volume on the front and rear-panel
headphone outputs. Push the VOLUME control to mute or unmute the audio.
Headphone jack. 1/4 inch headphone jack for listening to the selected audio channel pair.
USB ports. Two USB 2.0 ports for connecting a mouse and keyboard, importing or exporting instrument
presets, or upgrading the instrument firmware.
NOTE.
It is strongly recommended you do NOT use the front USB 2.0 ports for stream captures. Using
a USB 2.0 port for stream captures will take an excessive amount of time. Use the rear panel USB
3.0 ports for stream captures.
INPUT button. Press the button to prepare the instrument for an input selection using the SELECTIONS
buttons (1-6). 1
icon in the menu bar to open the settings
icon in the menu bar to change the selected application
icon to clear or reset the selected display.
Methods of operation
1
1
