How to configure PTP reference settings
56
Perform the following steps to configure the PTP reference settings:
1. Touch the Settings icon (
2. Select Reference to open the PTP settings submenu shown below.

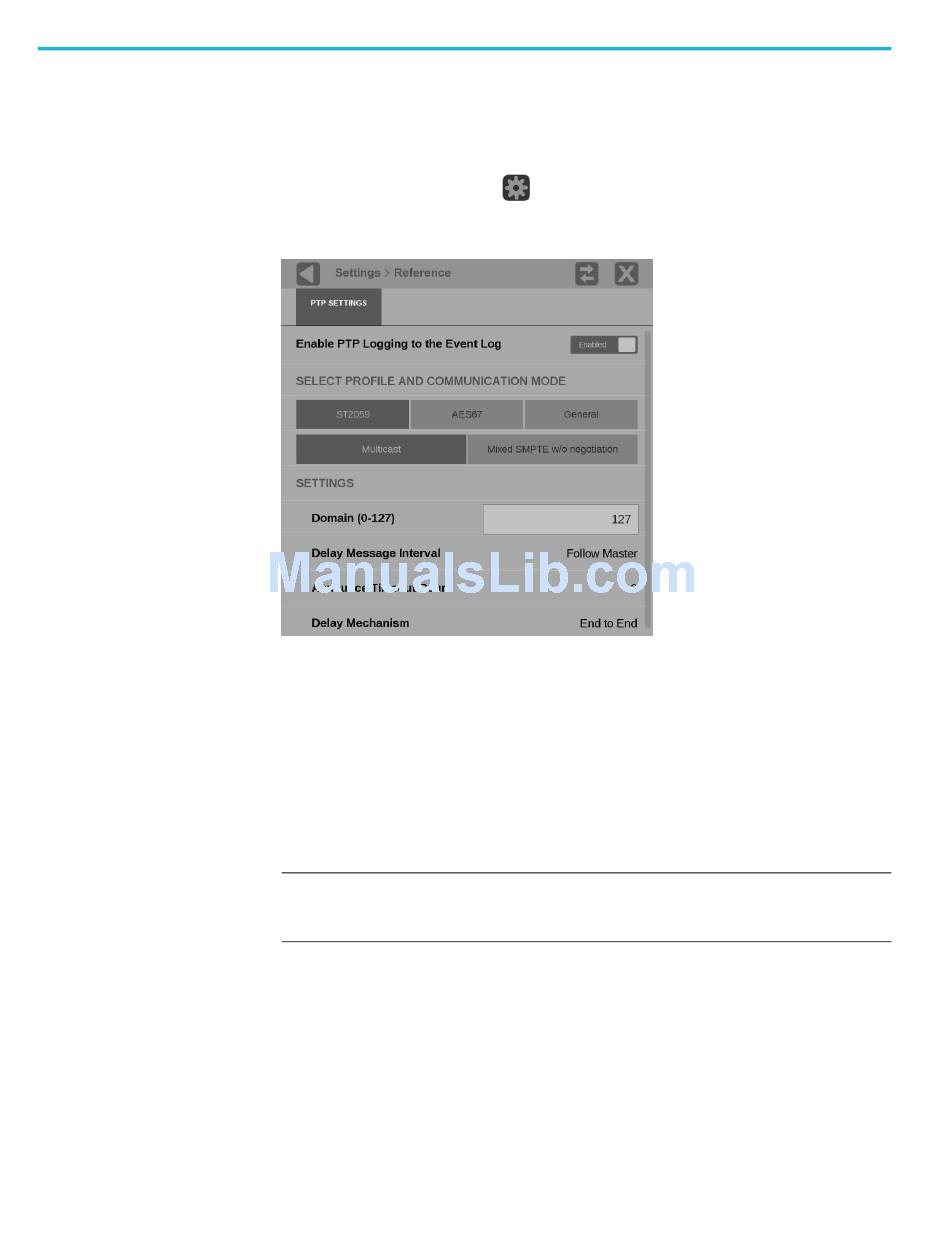

Figure 37: Editing PTP reference settings
3. To enable or disable PTP logging to the Event Log, touch the control box to
toggle the setting to the desired state.
4. Select the profile to configure: ST2059, AES67 or General. The default
communication mode for each profile is Multicast.
5. If you selected the ST2059 profile, select Mixed SMPTE w/o negotiation if
the communication mode will be a mixture of Multicast and Unicast.
NOTE.
On the SMPTE profile mixed mode, the PTP Announce and Sync messages
are sent as Multicast. However, the Delay request and Delay Response messages
are sent as Unicast.
) to open the Settings menu.
PRISM Media Analysis Platform User Manual
