Figure 103: Ip Status Port Settings - Tektronix PRISM User Manual

To view Port 1 and Port 2
PRISM Media Analysis Platform User Manual
The expand icon ( ) expands or collapses the tile vertically. If the tile
expands it will cover the tile above or below, depending on whether you are
expanding the top or bottom quarter tile. Use the collapse icon ( ) to bring
the tile back to its original size.
The gear icon ( ) opens the IP Status application settings menu. Use this
menu to select Port 1, Port 2 or Both.
NOTE.
After the IP Status application settings menu is opened, a move icon ( )
is displayed. Press this icon to move the settings menu horizontally.
1. Launch the IP Status application in one of the tiles (press/hold in the tile and
select from the list of applications).
2. Open the IP Status settings menu by press/hold in the tile and select the
icon.
3. In the IP Status settings menu select "Both" to monitor both Port 1 and Port 2.

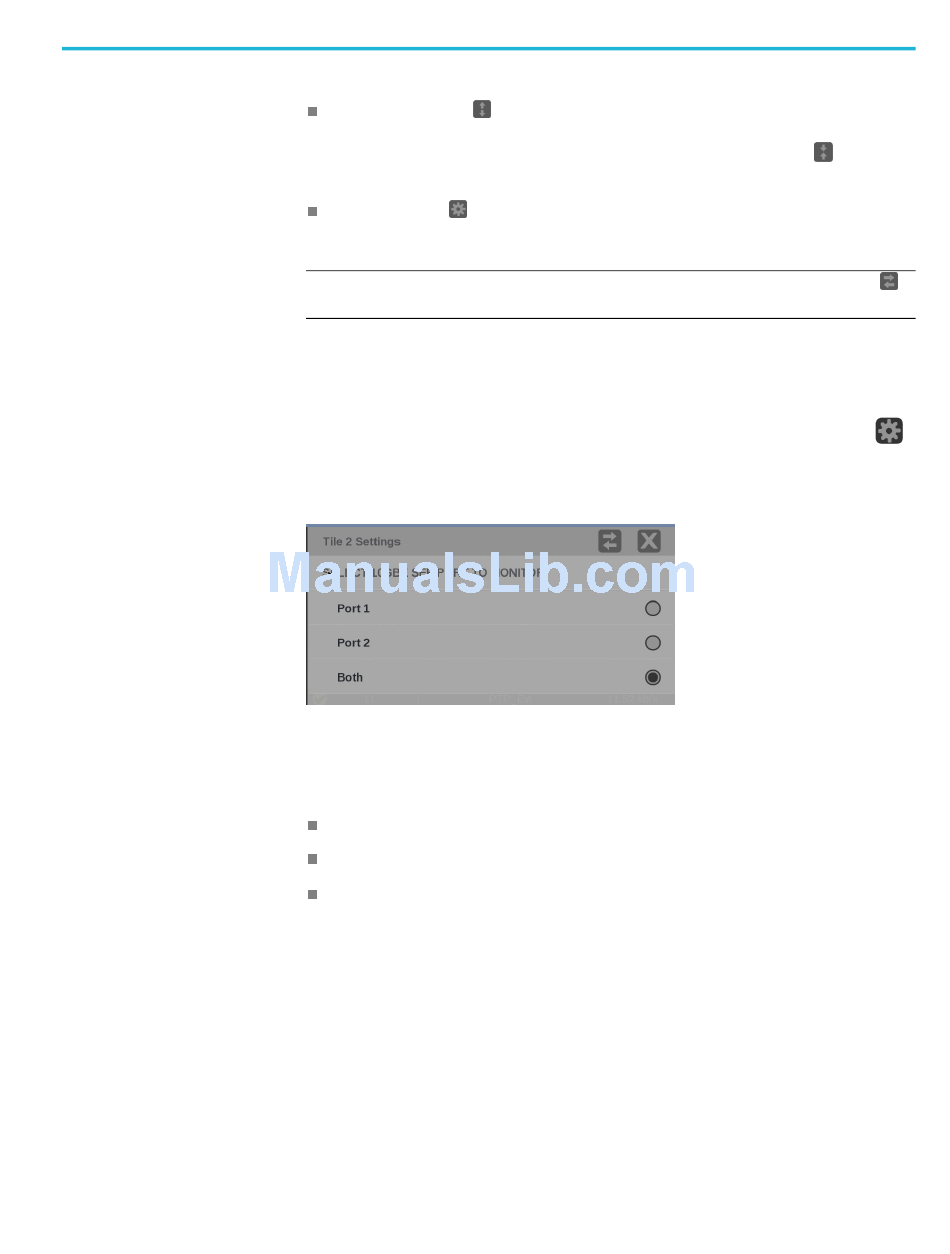

Figure 103: IP Status port settings

With both ports selected there will be two traffic bars showing the amount of
traffic on each port, as well as a traffic table that now indicates a "Port" column.
The columns are sortable.
The selected input is now highlighted in the ID column.
When the row has a yellow gradient it indicates a signal that was present and
is now gone. Press the reset button at the right side of the banner (at top) to
clear the signals that are no longer there.
