Waveform display application

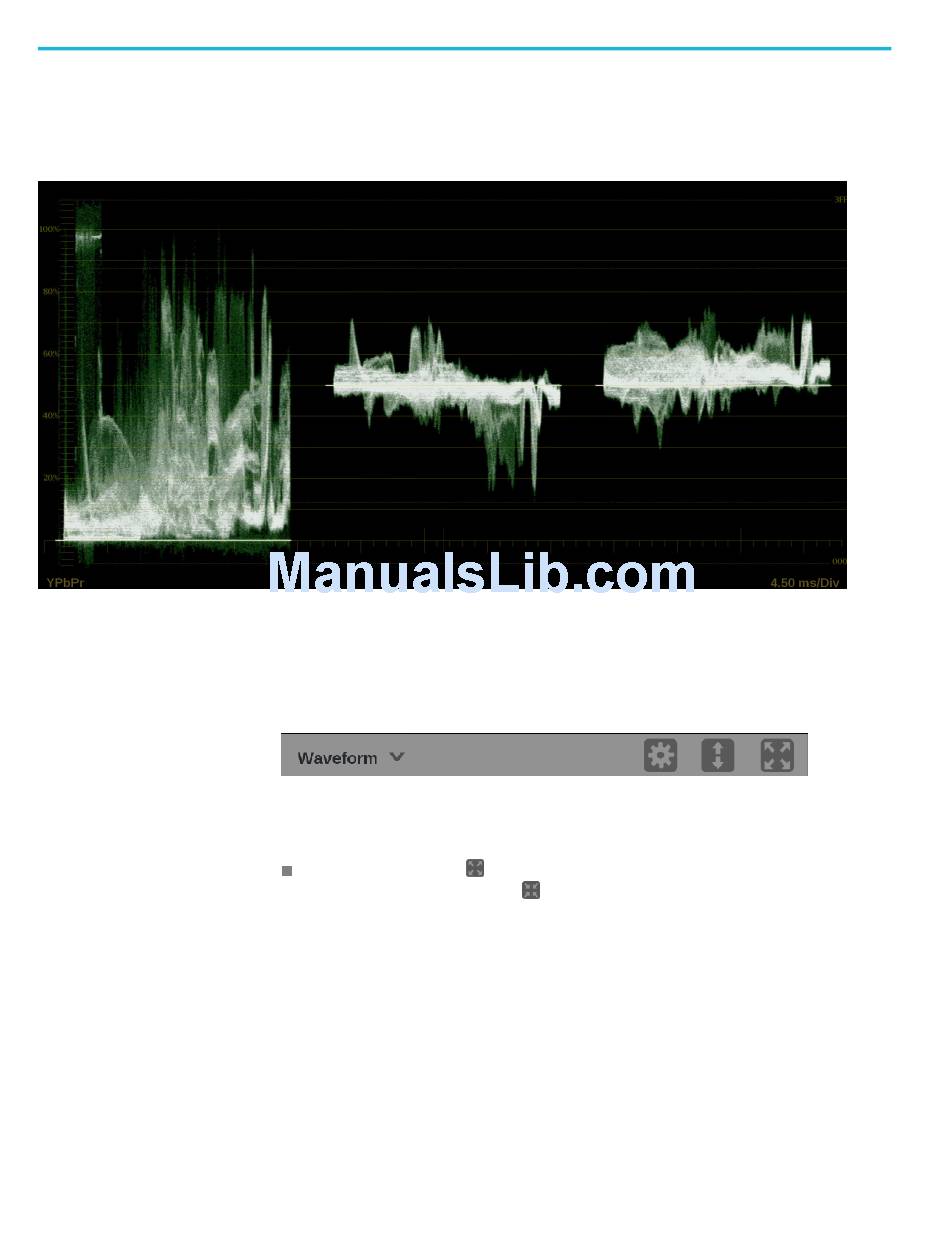

Figure 66: Waveform display application
Waveform application
banner
88
The Waveform display is a voltage versus time display of the video signal.
The following figure shows the available options after pressing and holding
anywhere on the Waveform application tile.
Figure 67: Waveform application banner
The following options adjust how the waveform is displayed:
The maximize icon ( ) expands the Waveform application tile to the full
screen. The minimize icon ( ) collapse the tile back to its original size.
