Application information
LAYER 1/2 tab display

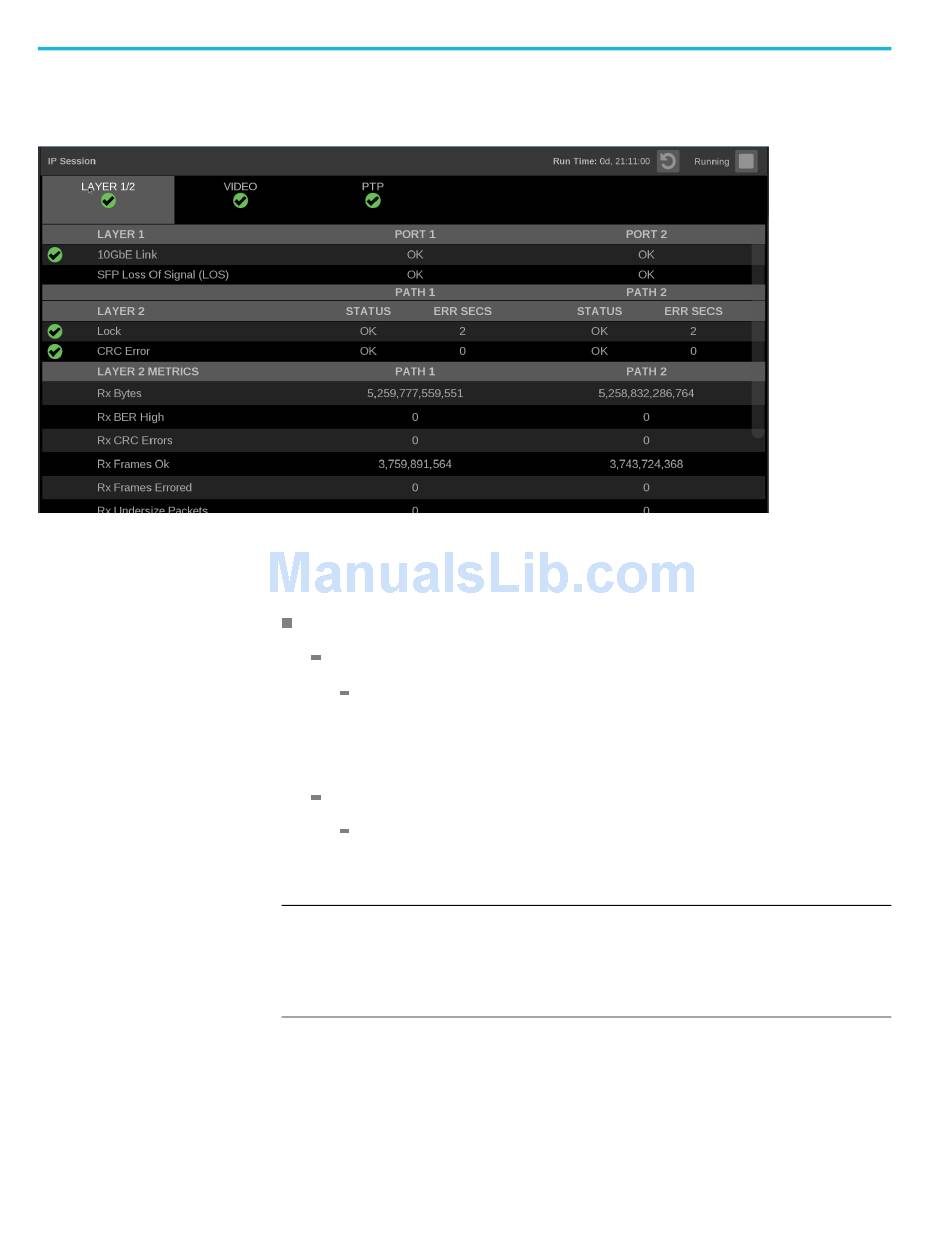

Figure 107: IP Session application – Layer 1/2 tab display
128
Use this tab to view the status of the following signal parameters:
Elements of the Layer 1/2 tab display.
Layer 1:
10GbE Link: Shows the status of the link connection.
Disconnected: No SFP module present.
No Signal: No input signal detected.
OK: Locked to input signal.
SFP Loss of Signal (LOS)
Disconnected: No SFP module present.
OK: Locked to input signal.
NOTE.
Functionality of this signal will vary depending on the brand of SFP
installed. The signal is intended as a preliminary indication that the received
signal strength is below a range specified by the SFP vendor. Such an indication
typically points to non-installed cables, broken cables, or a disabled, failing or a
powered off transmitter at the far end of the cable.
