Application information
Stop Display application
settings menu
92
The expand icon ( ) expands or collapses the tile vertically. If the tile
expands it will cover the tile above or below, depending on whether you are
expanding the top or bottom quarter tile. Use the collapse icon ( ) to bring
the tile back to its original size.
The gear icon ( ) opens the Stop Display application settings menu to adjust
the tile settings.
NOTE.
After the Stop Display application settings menu is opened, a move icon
( ) is displayed. Press this icon to move the settings menu horizontally.
The following figure shows the different choices in the Stop Display application
settings menu.

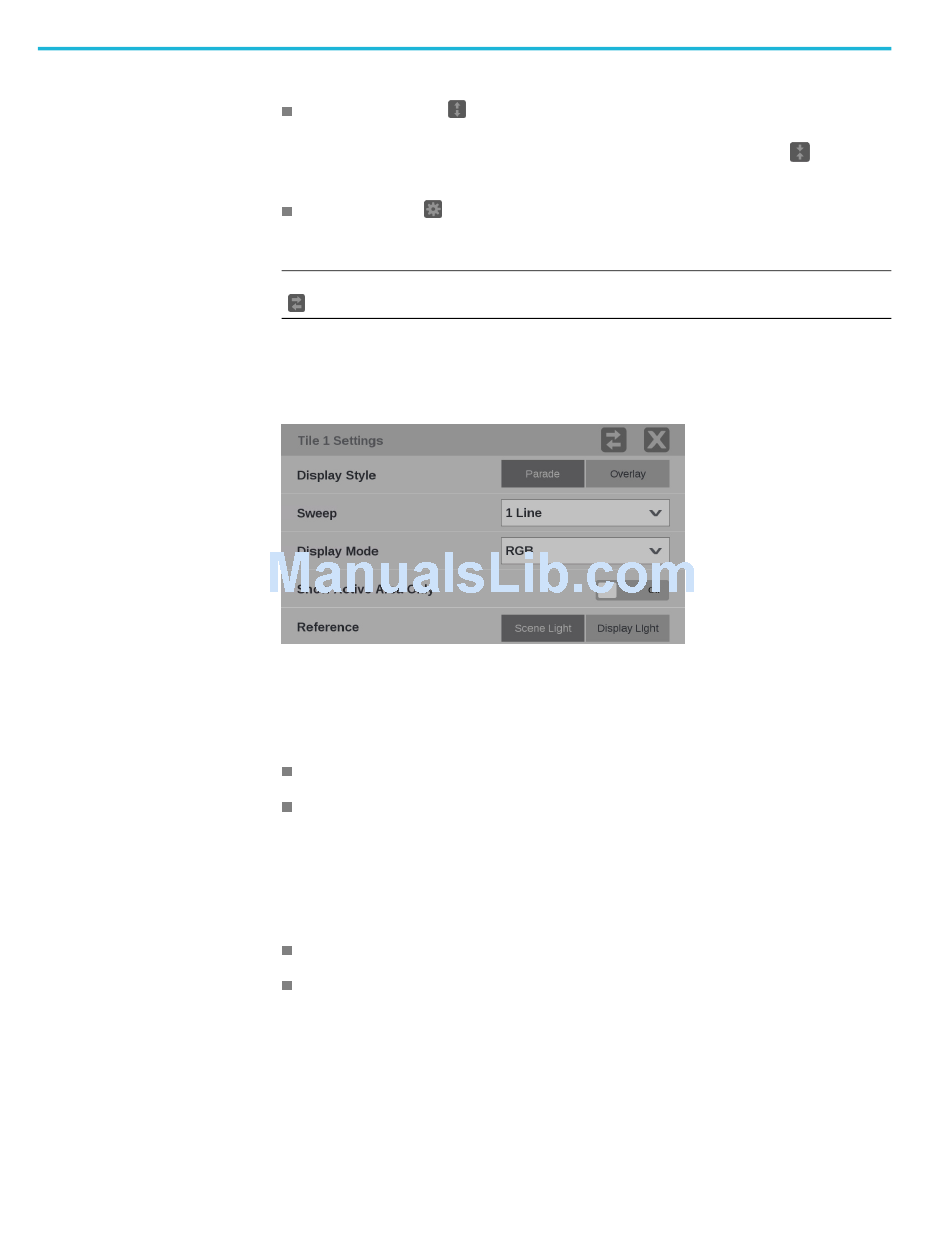

Figure 71: Stop Display application settings menu

Display Style. Choose how the signal components are displayed in the active tile,
use the Display Style buttons to select:
Parade. All the components are shown one beside the other.
Overlay. All the components are drawn at the same location so that they
appear one on top of the other.
Sweep. Use the drop-down menu to select the waveforms to view between the
lines or fields and/or make timing measurements on them. The available sweep
options depend on which display style is active.
When the Parade display style is active you can select from 1 line or 1 field.
When Overlay display style is active you can select from 1 line, 2 line, 1
field, or 2 field.
