Application information

Picture application

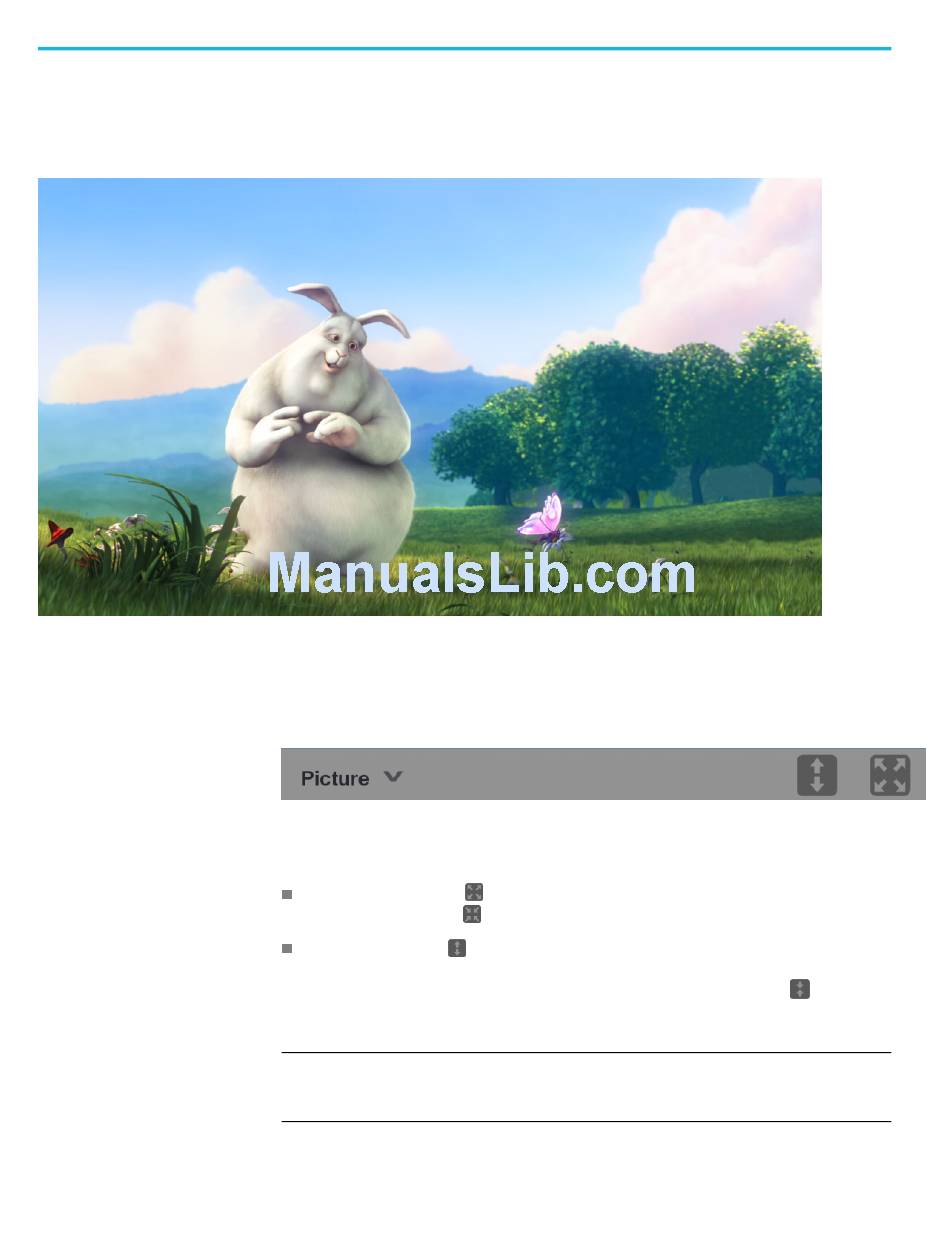

Figure 86: Picture application display (Copyright 2008, Blender Foundation / www.bigbuckbunny.org)
Picture application banner
106
The Picture display lets you see the picture generated by the video signal.
The following figure shows the available options after pressing and holding
anywhere on the Picture application tile.
Figure 87: Picture application banner
The following options adjust the Picture application:
The maximize icon ( ) expands the Picture application tile to the full screen.
The minimize icon ( ) collapse the tile back to its original size.
The expand icon ( ) expands or collapses the tile vertically. If the tile
expands it will cover the tile above or below, depending on whether you are
expanding the top or bottom quarter tile. Use the collapse icon ( ) to bring
the tile back to its original size.
NOTE.
In full screen mode, there is no cropping. Pictures are decimated
horizontally or vertically to obtain the correct aspect ratio. This decimation may
cause some artifacts.
