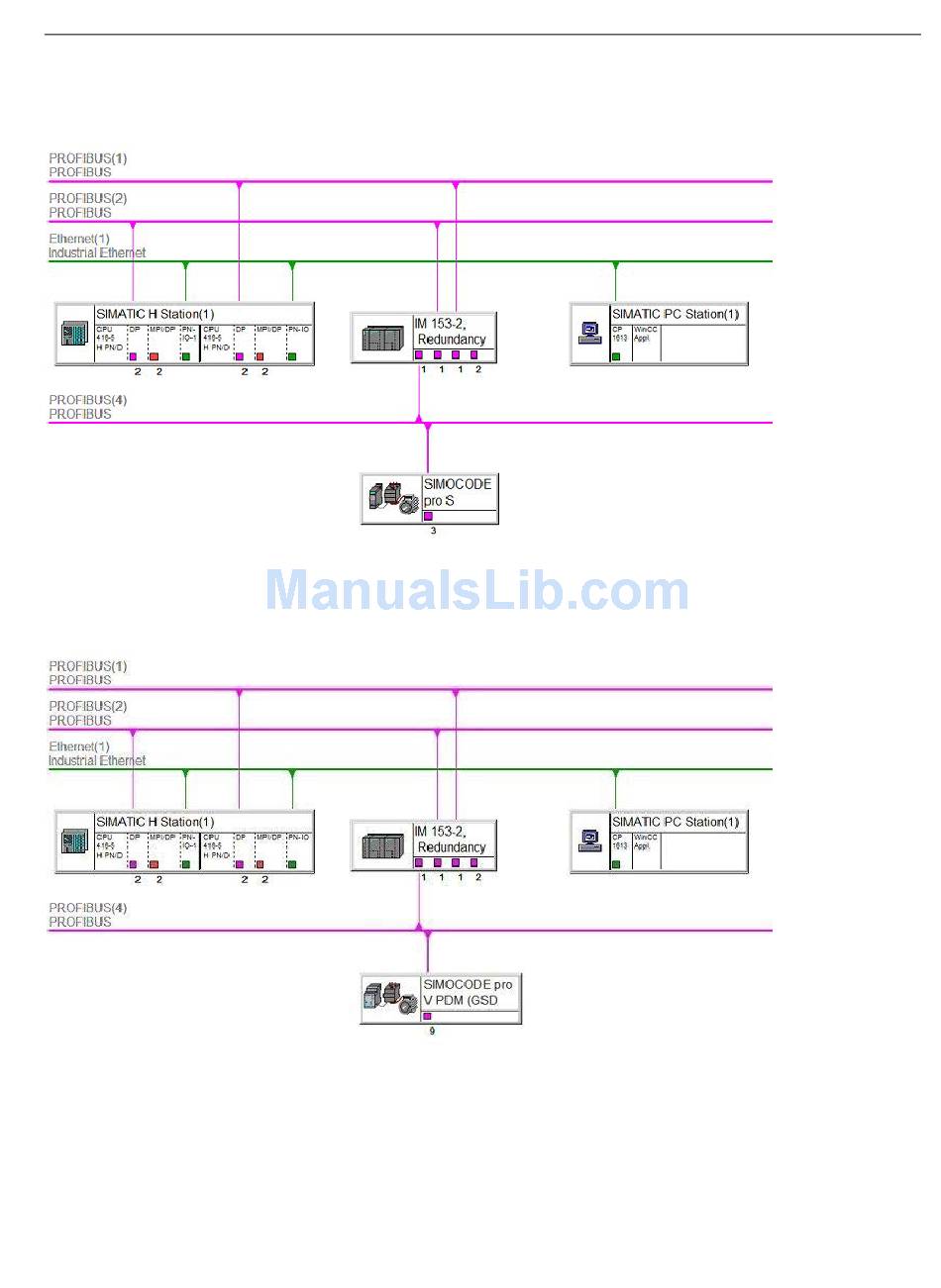

SIMOCODE pro S on PROFIBUS DP behind a Y-link
Figure 1-5
SIMOCODE pro S on PROFIBUS behind a Y-link
SIMOCODE pro V on PROFIBUS DP behind a Y-link
Figure 1-6
SIMOCODE pro V on PROFIBUS behind a Y-link
SIMOCODE pro PCS 7 Library V9.0
Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
Introduction
1.7 Example configurations
23
