Introduction

1.5 Configuration Steps

1.5 Configuration Steps
1.5.1

Configuring in HW Config

The two bytes of the process image inputs (PII) are transferred from the SIMOCODE device
based on the logical address configured for the module. This is a manual configuration that a
user has to configure for both the inputs and outputs.

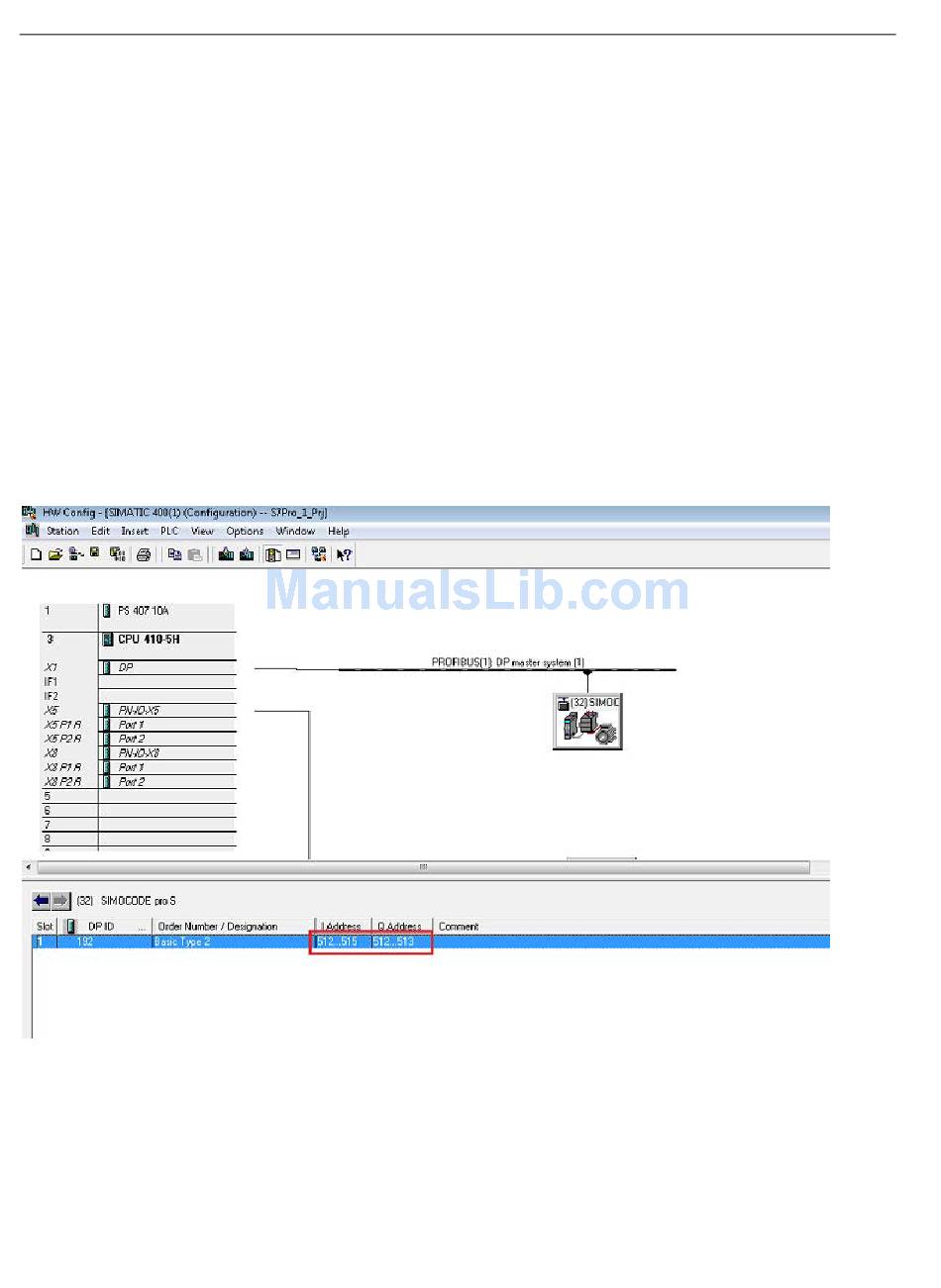

Configuring in HW Config
● Drag and drop the desired SIMOCODE pro object (OM, PDM or GSD) out of the HW
Catalog into the "Station" window of HW Config and connect it to the desired fieldbus
(PROFIBUS or PROFINET).
● HW Config assigns the logical address to the object which will be used for setting up of
the CFC template.
