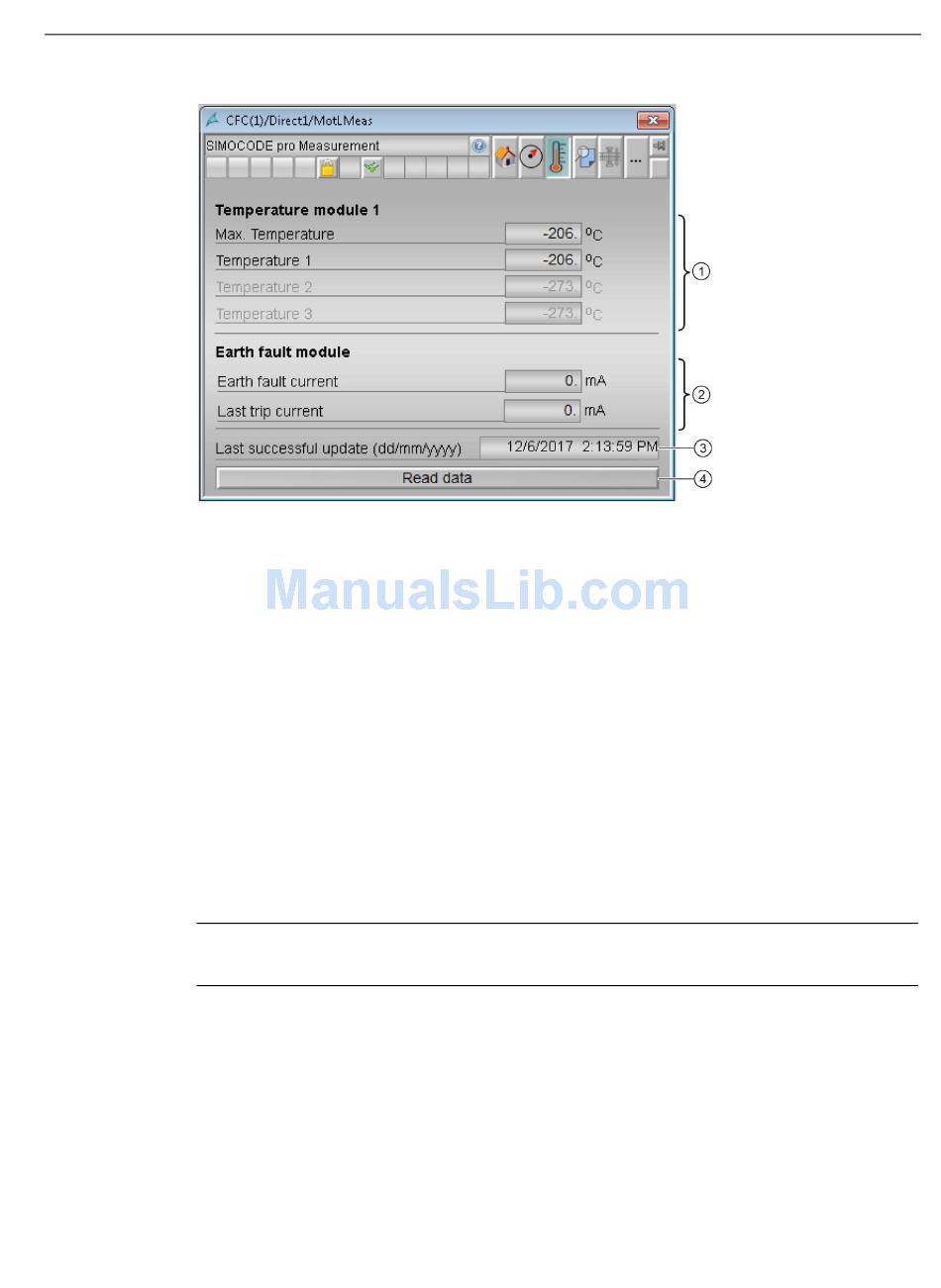

Figure 4-7
Temperature module 1 (for SIMOCODE pro devices)
①
Temperature module values (MaxTemp, TMTemp1, TMTemp2, TMTemp3)
These parameters are enabled when Temperature module 1 is connected.
Earth fault detection module
②
Earth fault current (EFltCurr),Last trip current (ETrpCurr)
③
Last successfull Timestamp of Read Data
④
Button for updating the data (RdDataOp).
Button is deactivated if RackF_Act = 1, authorization level 5 and higher (ProcessControl-
ing)
These parameters are enabled when Earth fault detection module is connected.
Note
Only the number of temperature sensors which are configured will be enabled.
SIMOCODE pro PCS 7 Library V9.0
Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
Temperature module and Earth fault module
4.4 Block for MMMeas measured value function
