4.6.11.2

MMLog - Logbook

The Logbook view shows the error buffer with tripping faults and events (Page 185) saved by
a SIMOCODE pro device.
The logbook can be updated using the "ReadData" button.

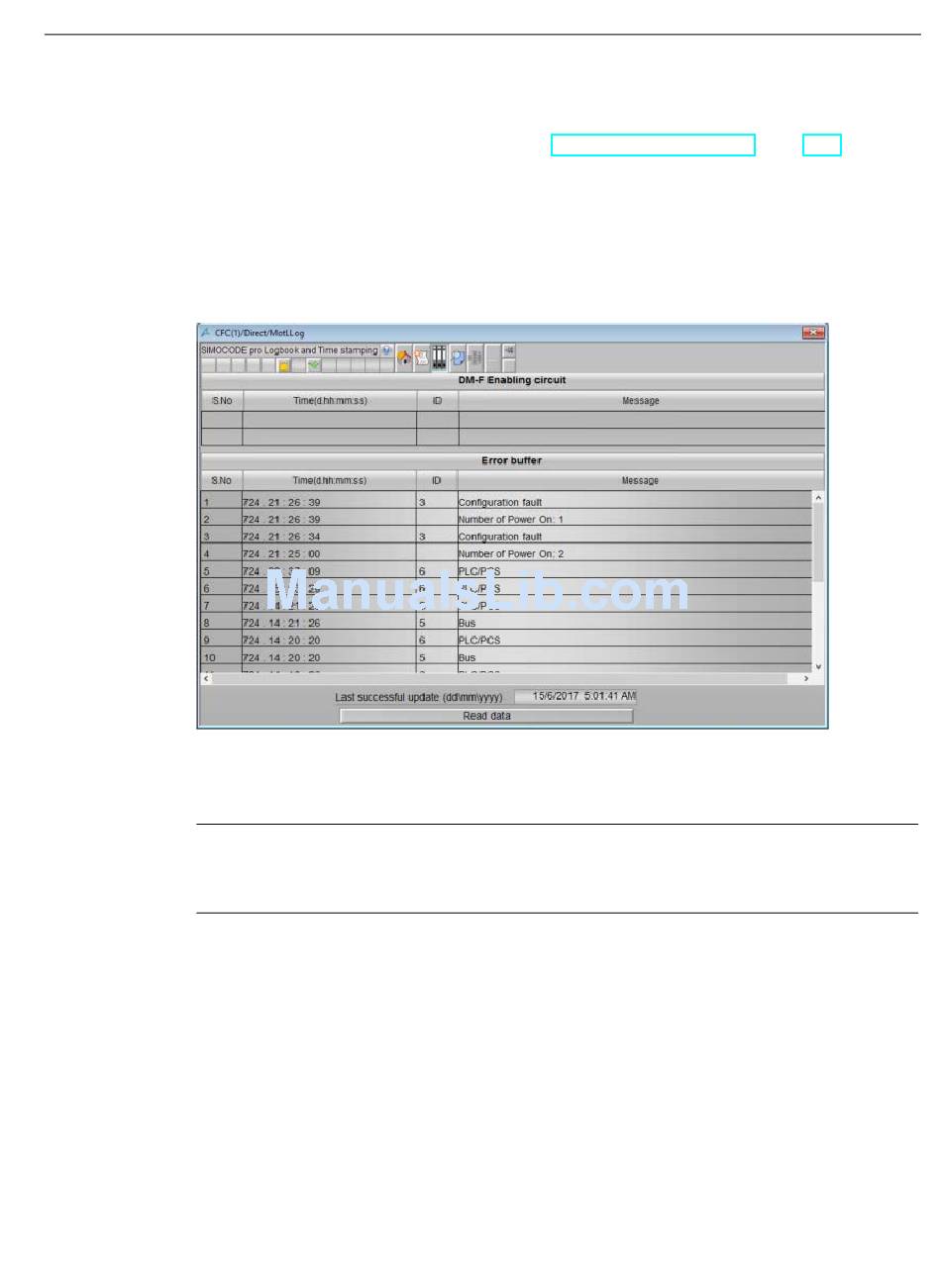

Logbook view for PROFIBUS
With PROFIBUS, up to 21 messages are listed with ID and operating hours of the device.
Figure 4-8
The tool bar button for logbook view gets disabled when the feature bit 26 is high.
Note
Alarm view
In the Alarm view, the information is entered if the time stamping function is activated.
SIMOCODE pro PCS 7 Library V9.0
Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
Logbook view for PROFIBUS
Description of the blocks
4.6 Block for timestamping MMLog
195
