Introduction

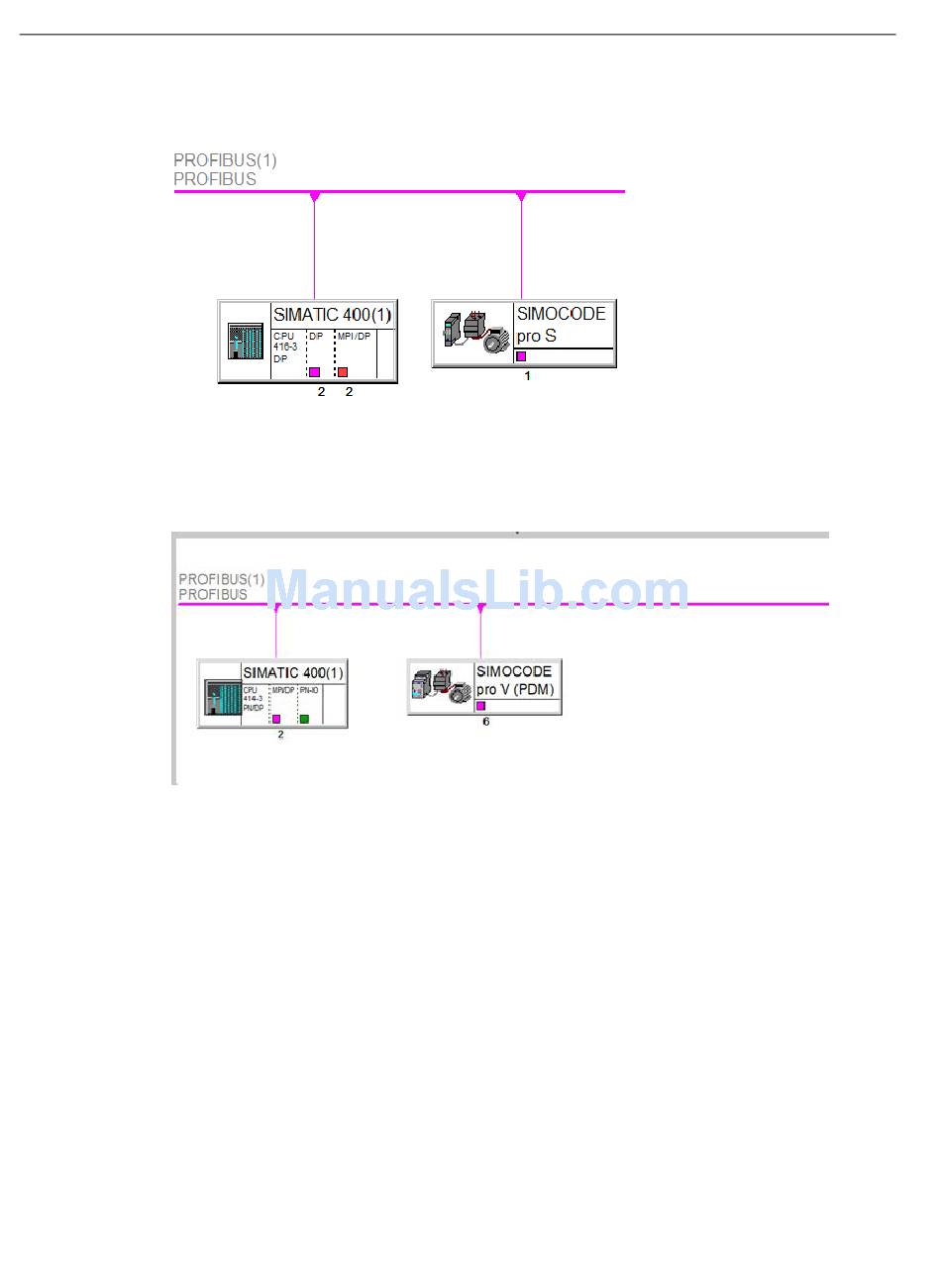

1.7 Example configurations
SIMOCODE pro S on DP master system
Figure 1-3
SIMOCODE pro V on DP master system
Figure 1-4
22
SIMOCODE pro S on DP master system
SIMOCODE pro V on DP master system
Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
