Description of the blocks
4.3 MMOprtn block
4.3.23

Faceplate views

4.3.23.1

MMOprtn - Standard

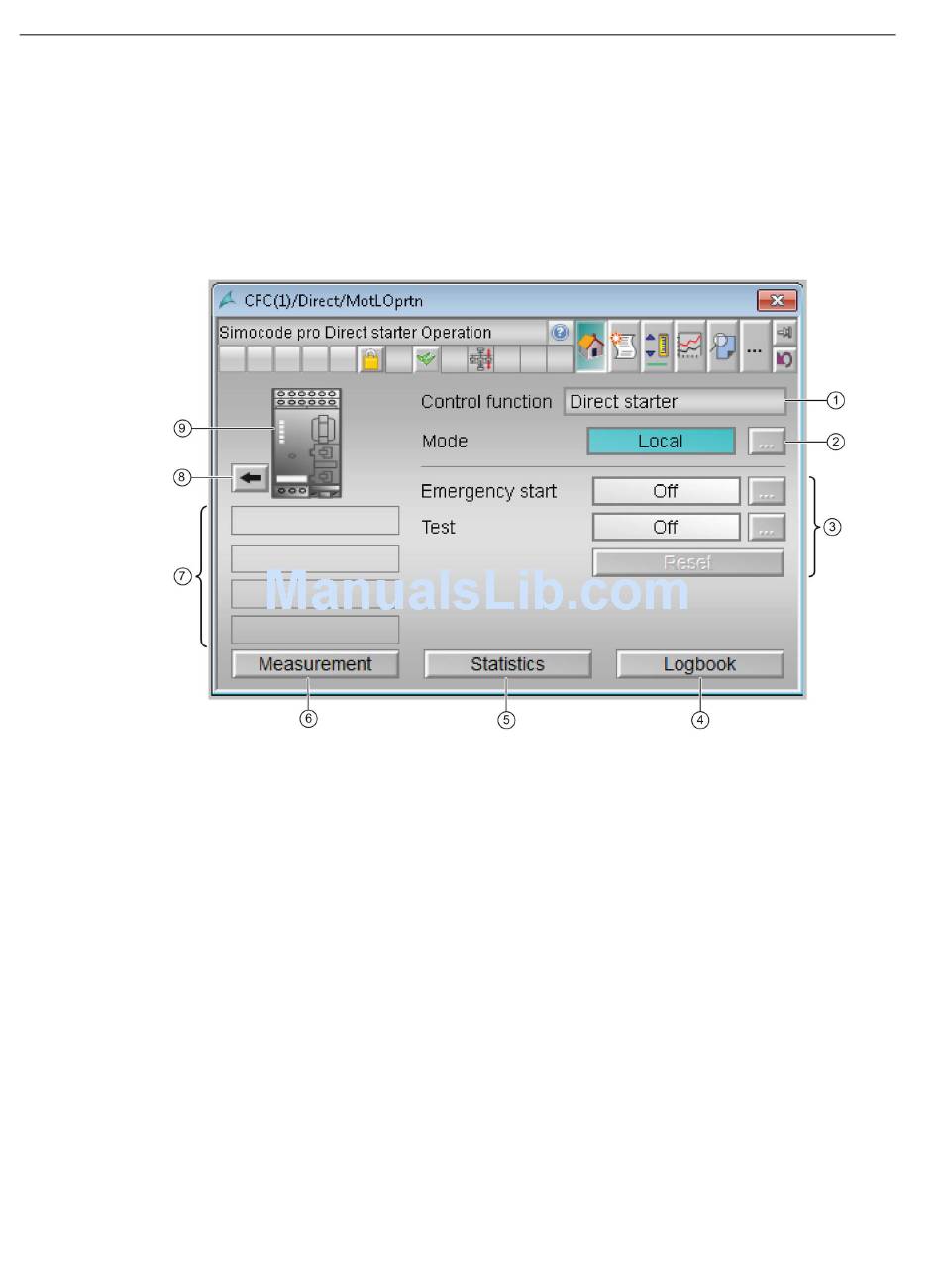

Standard view
①
②
③
④
⑤
⑥
⑦
148
Display of the control function
Button for changing the operating mode (AutoModOp, ManModOp, LocalOp, OosOp); opens
the expanded command range
Buttons
for emergency start
•
for testing
•
for resetting the trip (TrpRstOp)
•
The buttons open the expanded command area; authorization level 5 and higher.
Button for switching to the standard view of a faceplate for representing the logbook values
(MMLog); visible if the Selfp1 input parameter of the MMOprtn block is configured.
Button for switching to the standard view of a faceplate for representing the statistical values
(MMStat); visible if the Selfp2 input parameter of the MMOprtn block is configured.
Button for switching to the standard view of a faceplate for representing the measured values
(MMMeas); visible if the Selfp1 input parameter of the MMOprtn block is configured.
Status displays of the block:
Test position
•
Invalid signal
•
Rack fault
•
Group error
•
