Optional Accessories

The following accessories can be ordered for your probe.
Accessory
Ground Lead, Clip-on, 6 in
Ground Lead, Alligator, 12 in
MicroCKT Test Tip
Circuit Board Test Point/PCB Adapter
Compact Probe Tip Ckt Board Test Point
Wire, spool, 32 AWG

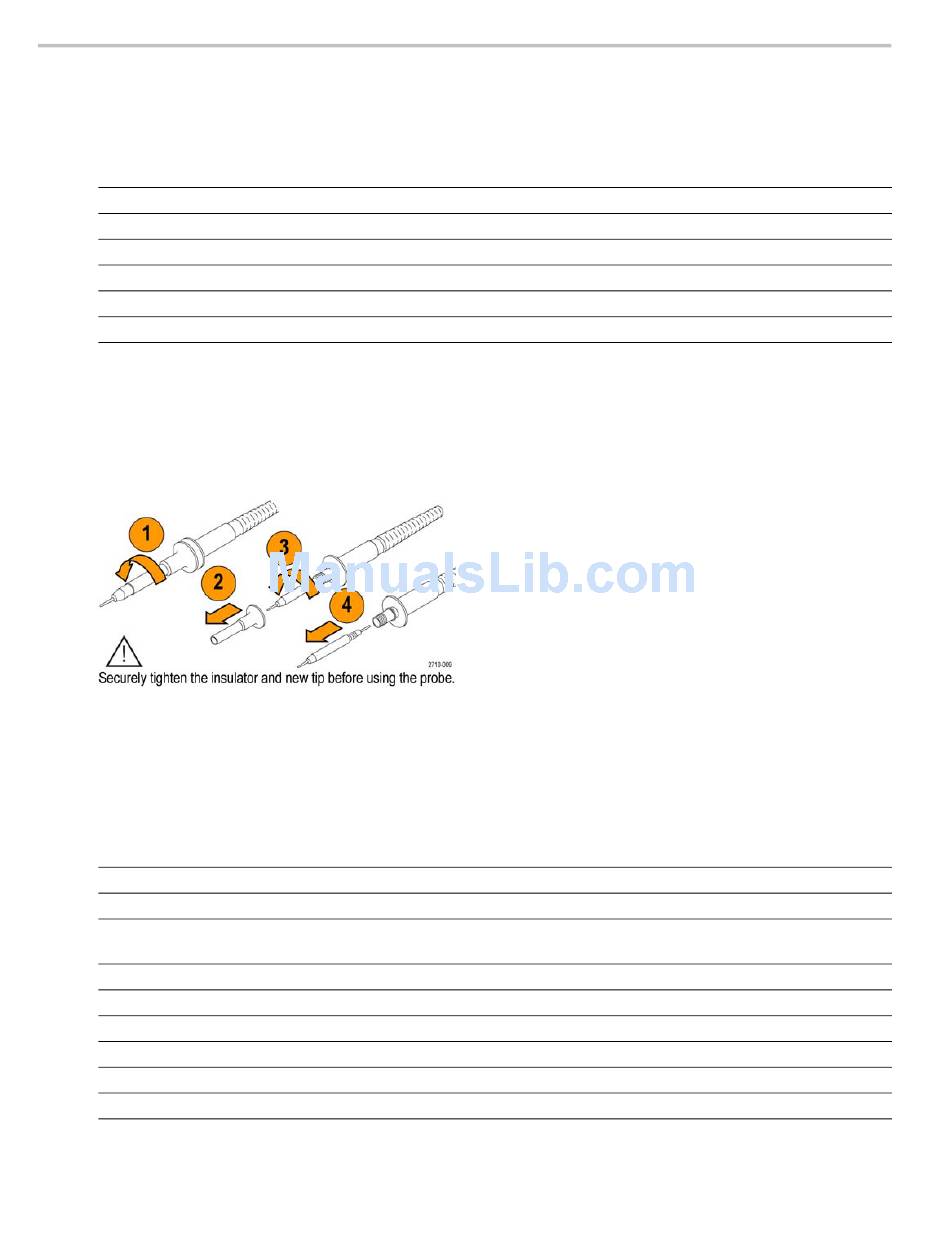

Replacing the Probe Tip

Order Tektronix part number 206-0610-xx for rigid tip replacement, or order part number 206-0611–xx for pogo pin
replacement.
Specifications
Table 1: Electrical and mechanical specifications
Characteristic
Bandwidth (–3 dB)
System rise time (typical)
System input capacitance
System attenuation accuracy
Probe series resistance @DC
System input resistance @DC
Propagation delay
Maximum input voltage
Cable length
174
TPP0500
500 MHz
<350 ps
Rigid tip: 3.9 pF ±0.3 pf
Pogo pin tip: 5.1 pf ±0.5 pf
10:1 ±2.2%
9.75 MΩ ±0.5%
10 MΩ ±2%
~5.67 ns
300 V
1.3 m, ±3 cm
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
Tektronix part number
196-3198-xx
196-3512-xx
206-0569-xx
016-2016-xx
131-4210-xx
020-3045-xx
TPP1000
1 GHz
<700 ps
CAT II
RMS
