Display a Waveform

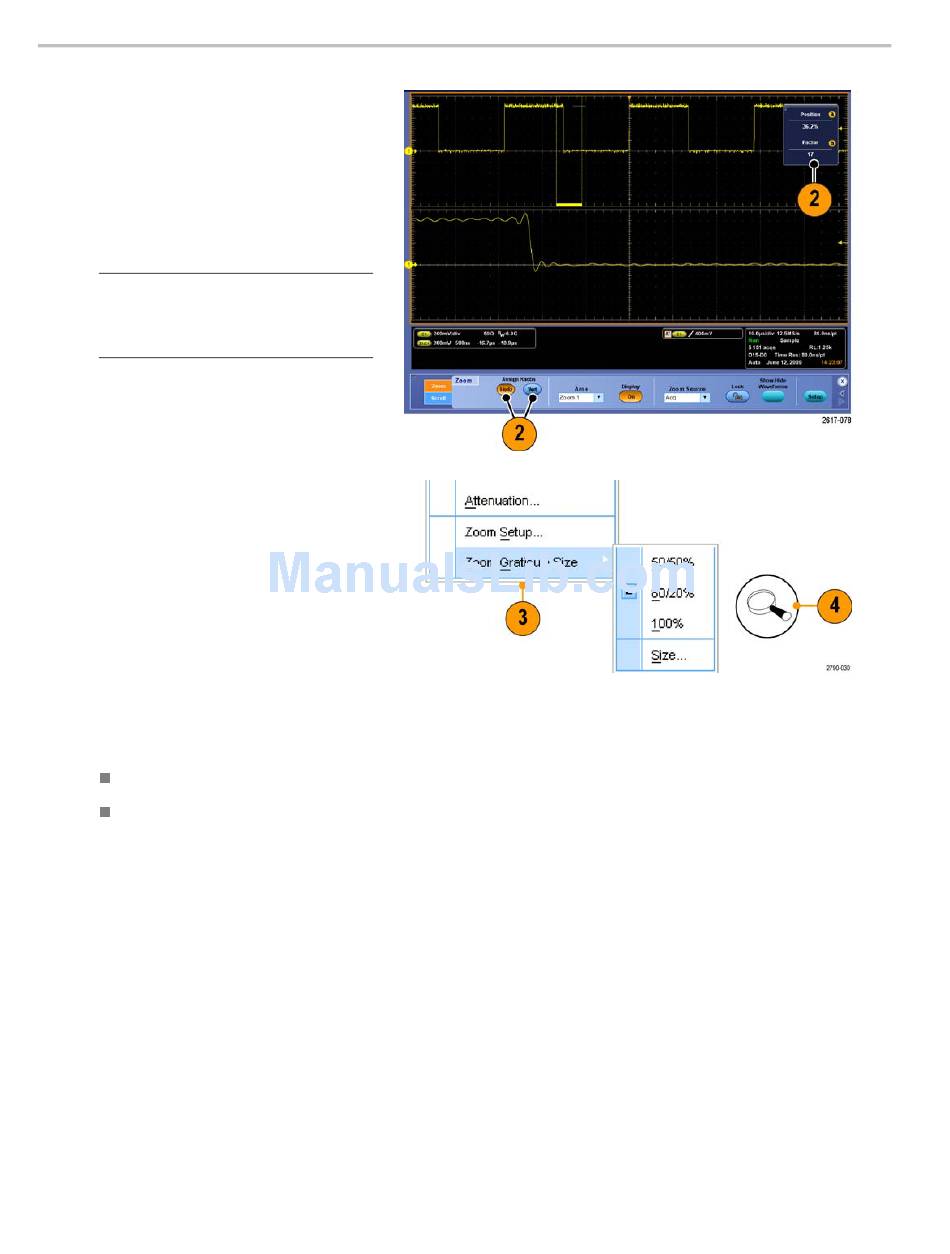

2. Push HORIZ or VERT to select which
axis to magnify in the zoom graticule.
Use the multipurpose knobs to adjust
scale and position of the magnified
waveform.
In this example the main graticule is
the top half of the graticule and the
zoomed graticule is the bottom half of
the graticule.
NOTE. You can hide or display zoomed
waveforms by pressing Show/Hide
Waveforms and then checking which
zoomed waveforms to display.
3. To adjust the zoom graticule size, select
Zoom Graticule Size from either the
Vertical or Horiz/Acq menus.
4. To turn zoom off, push the front-panel
button.
Quick Tips
Use the Zoom Setup menu to change the graticule size of the zoomed waveform.
Use Wave Inspector to manage long record length waveforms. (See page 103, Using Wave Inspector to Manage
Long Record Length Waveforms.)
