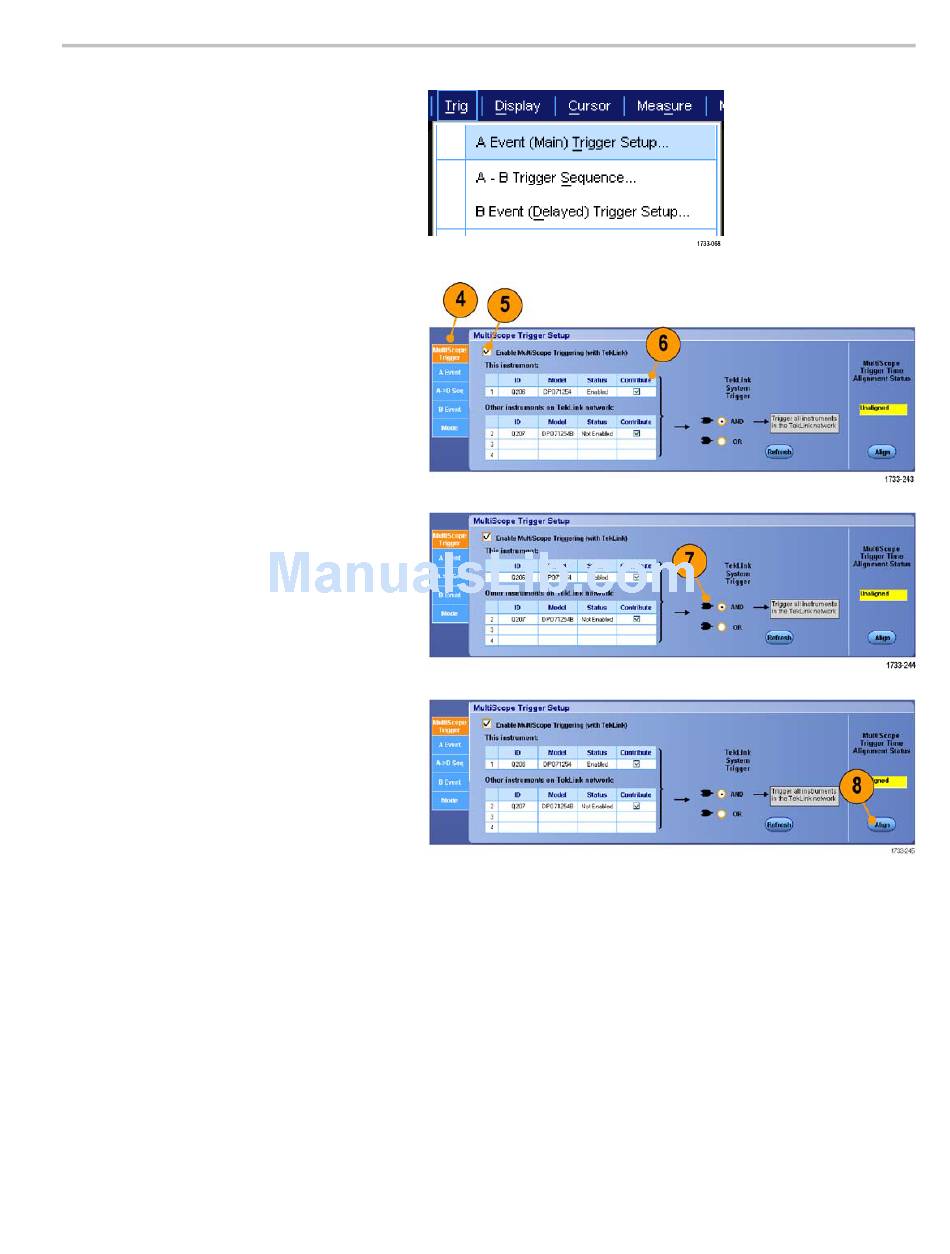

3. Select Trig > A Event (Main) Trigger
Setup....
4. Select the MultiScope Trigger tab.
5. Enable MultiScope Triggering by
selecting Enable MultiScope Triggering
(with TekLink).
6. Select Contribute to enable the
instrument to supply a trigger in the
TekLink setup. The other instruments are
automatically set to receive the trigger.
7. Select AND or select OR to combine all
contributed triggers before triggering all
instruments in the TekLink setup.
AND triggering with a hub works with
edge and pattern trigger types.
OR triggering with a hub works with all
trigger types.
8. To align the MultiScope Trigger, press
the Align button.
