Acquisition
Setting Up a Bus
You can set up serial and parallel buses on MSO70000/C, MSO5000, and DPO5000 Series instruments.

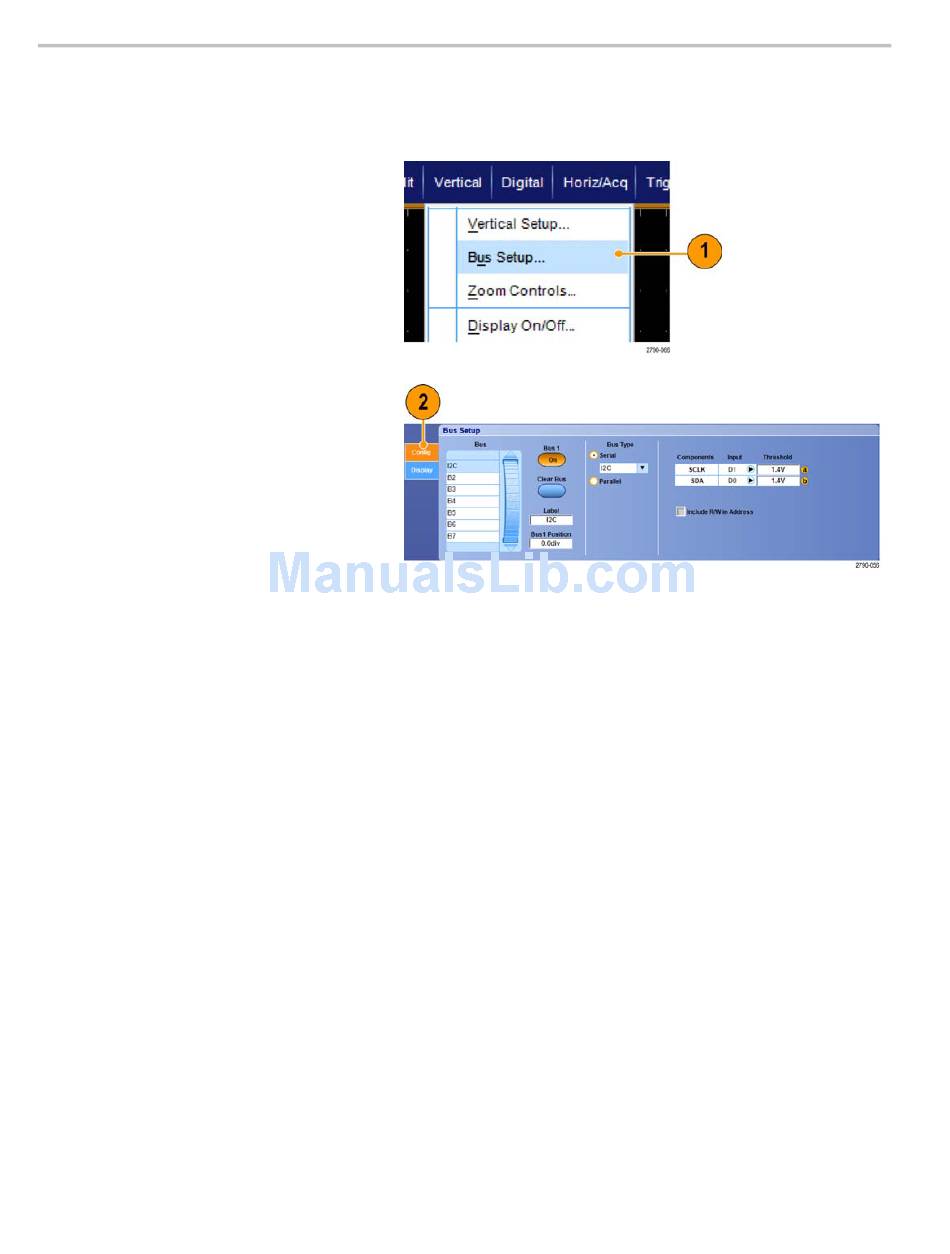

1. Select Vertical > Bus Setup or, on some
instruments, Digital > Bus Setup.
2. Select the Config tab.
50
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
