Pinpoint Triggers

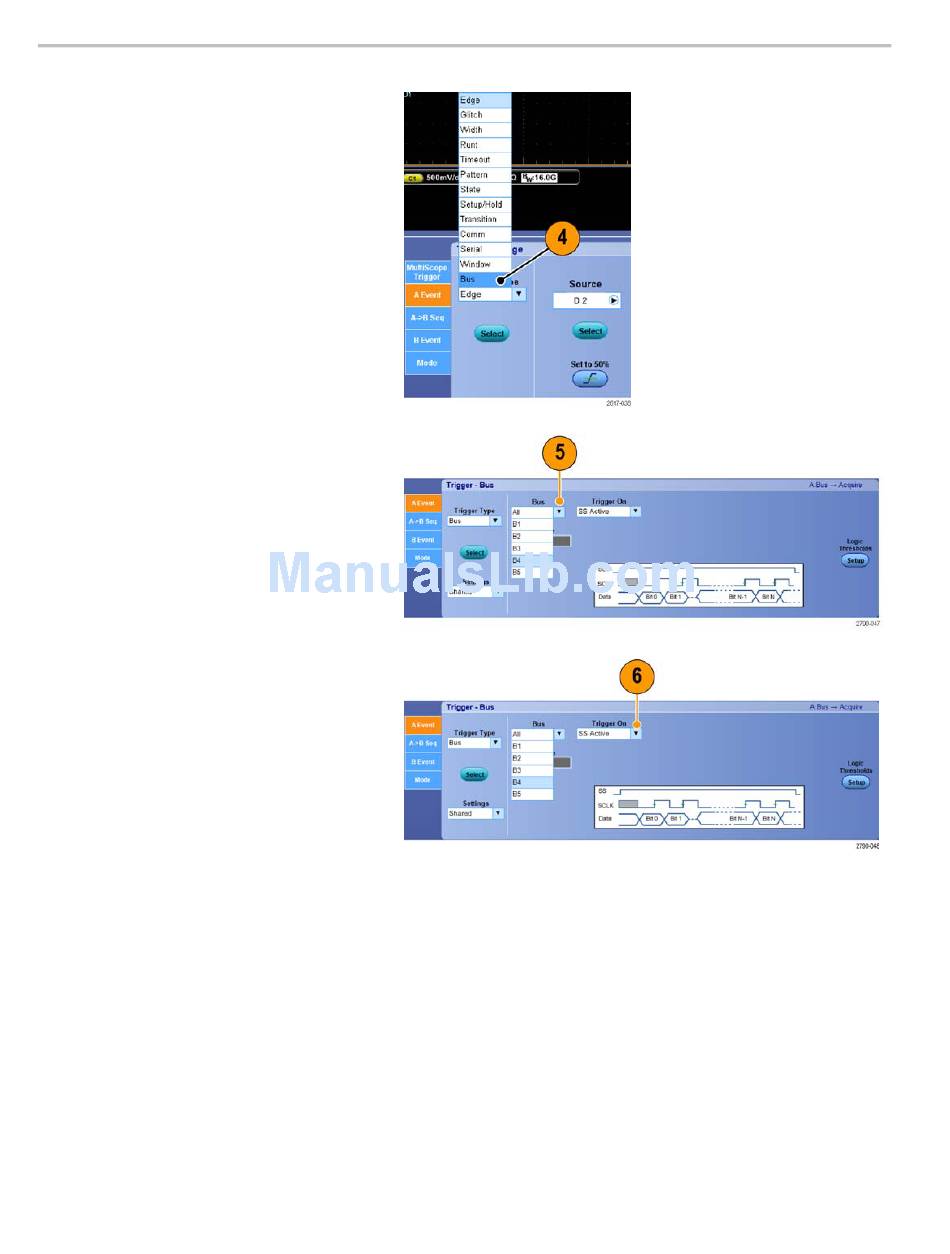

4. Select the Bus Trigger Type.
5. Select the bus.
6. Select the bus signal to trigger on.
7. Depending on your Trigger On choice
and your bus type, make the required
selections for the bus.
See the online help for additional help
setting up a bus.
84
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
