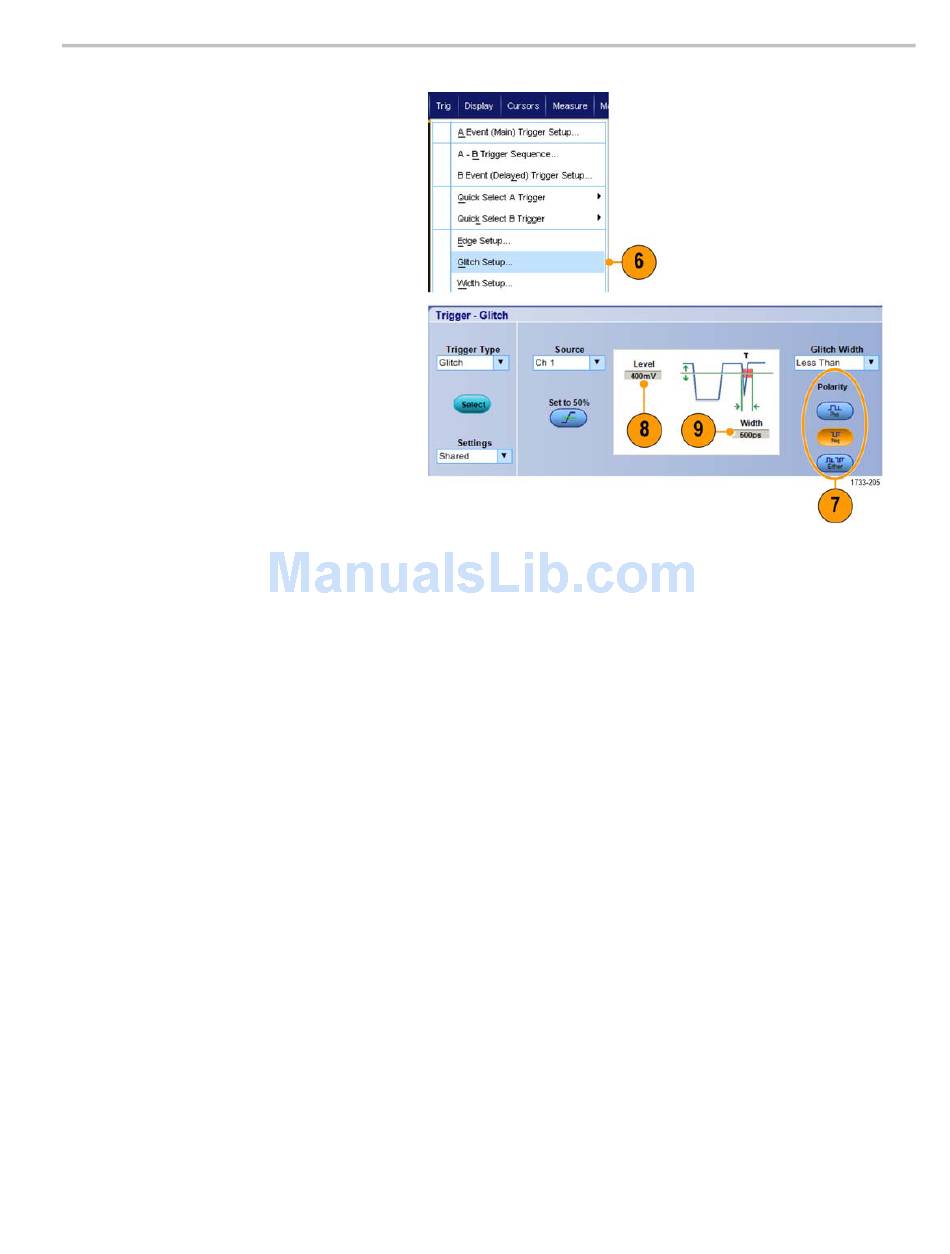

6. To trigger on the glitch that you identified
in step 5, select Trig > Glitch Setup....
7. Select the appropriate polarity.
8. Click Level, and then set the level based
on what you found in step 5.
9. Click Width, and then set the width
based on what you found in step 5.
