Display a Waveform
This section contains concepts and procedures for displaying a waveform. Detailed information is available in the online help.
Setting the Display Style

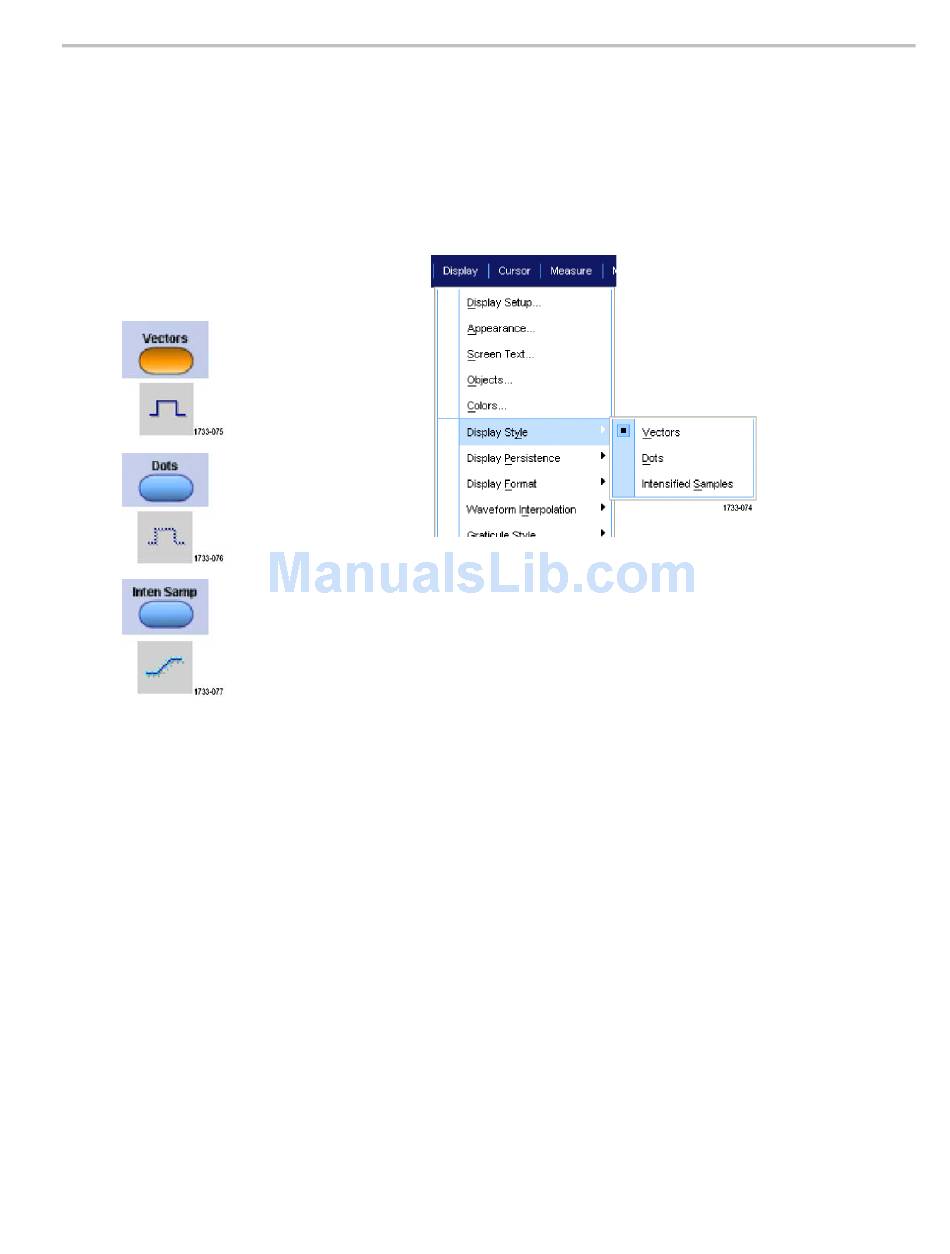

To set the display style select Display >
Display Style, and then select one of the
following styles:
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
Displays waveforms with
lines drawn between
record points.
Displays waveform
record points as dots on
the screen.
Displays the actual
samples. Interpolated
points are not displayed.
Display a Waveform
89
