Analyzing Waveforms

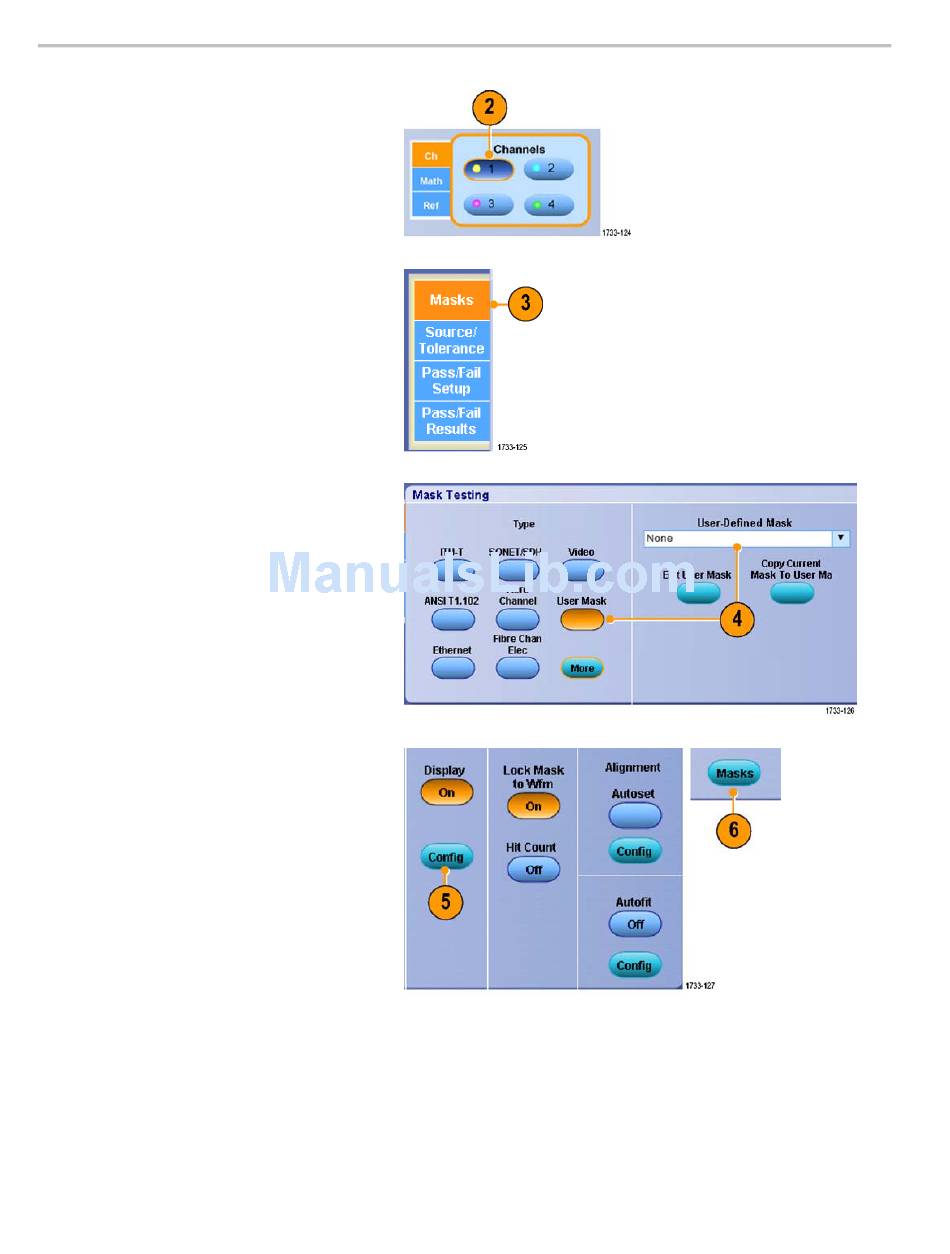

2. Select the signal source.
3. Click the Masks tab.
4. Select the Type and standard.
5. Click a Configbutton to access a Mask
Configuration control window, where you
can adjust how masks and violations are
displayed and how Mask Autoset and
Autofit are configured.
6. Click Masks to return to the Mask Setup
control window.
132
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
