Saving Waveforms - Tektronix MSO70000/C Series User Manual

Saving and Recalling Information

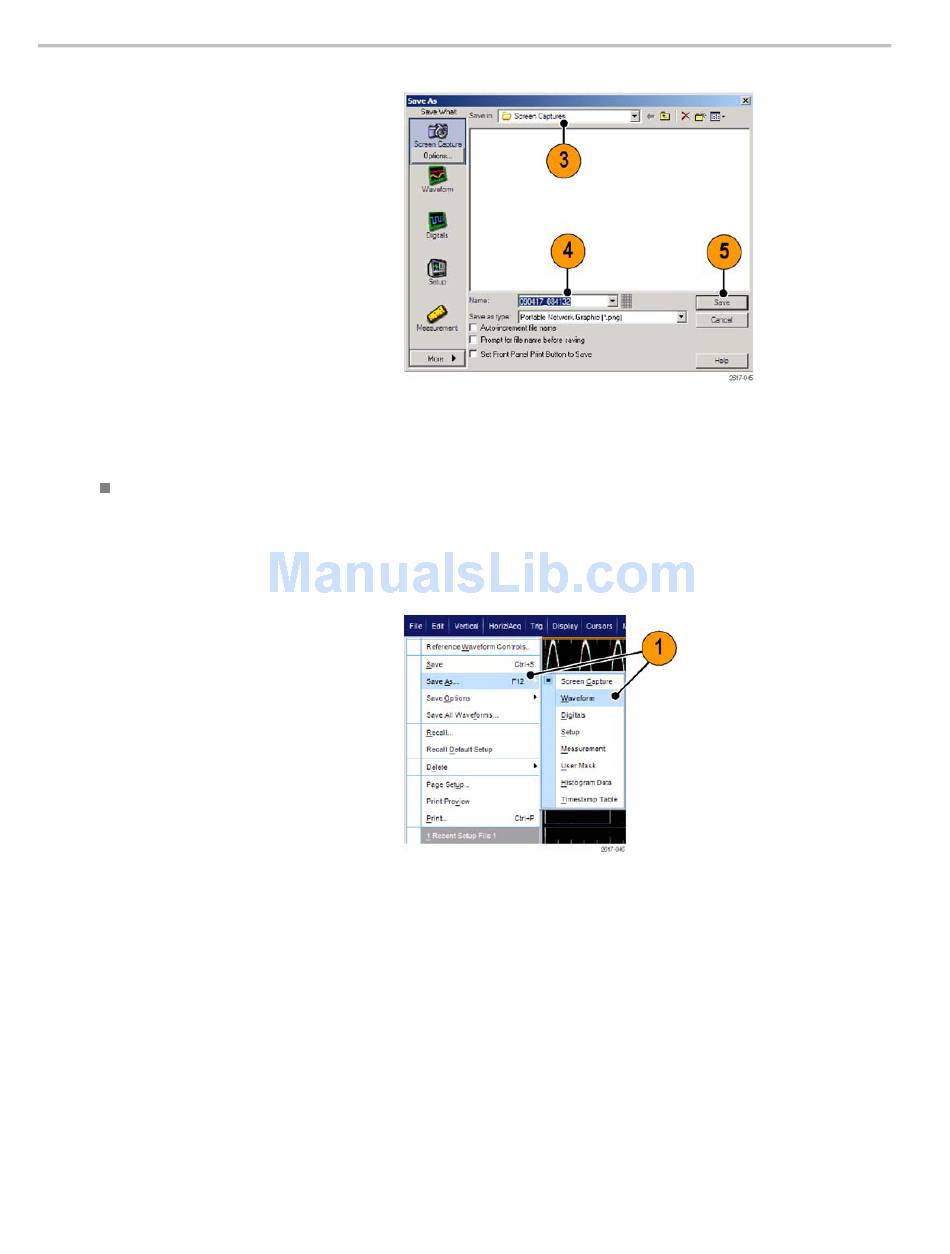

3. Select the location to save the screen
capture.
4. Type in a name for the screen capture,
or use the default name, and then select
a file type.
5. Click Save.
Quick Tip
To quickly save multiple screen captures, select Set Front Panel Print Button to Save, and then click Save. You can
now save a screen capture by pushing the front panel Print button.

Saving Waveforms

1. To save waveforms, select File > Save
or Save As > Waveform....
144 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
