Using FastFrame Mode

FastFrame allows you to capture many trigger events as single records in a larger record, and then view and measure
each record individually. Time Stamps display the absolute trigger time for a specific frame and the relative time between
triggers of two specified frames.

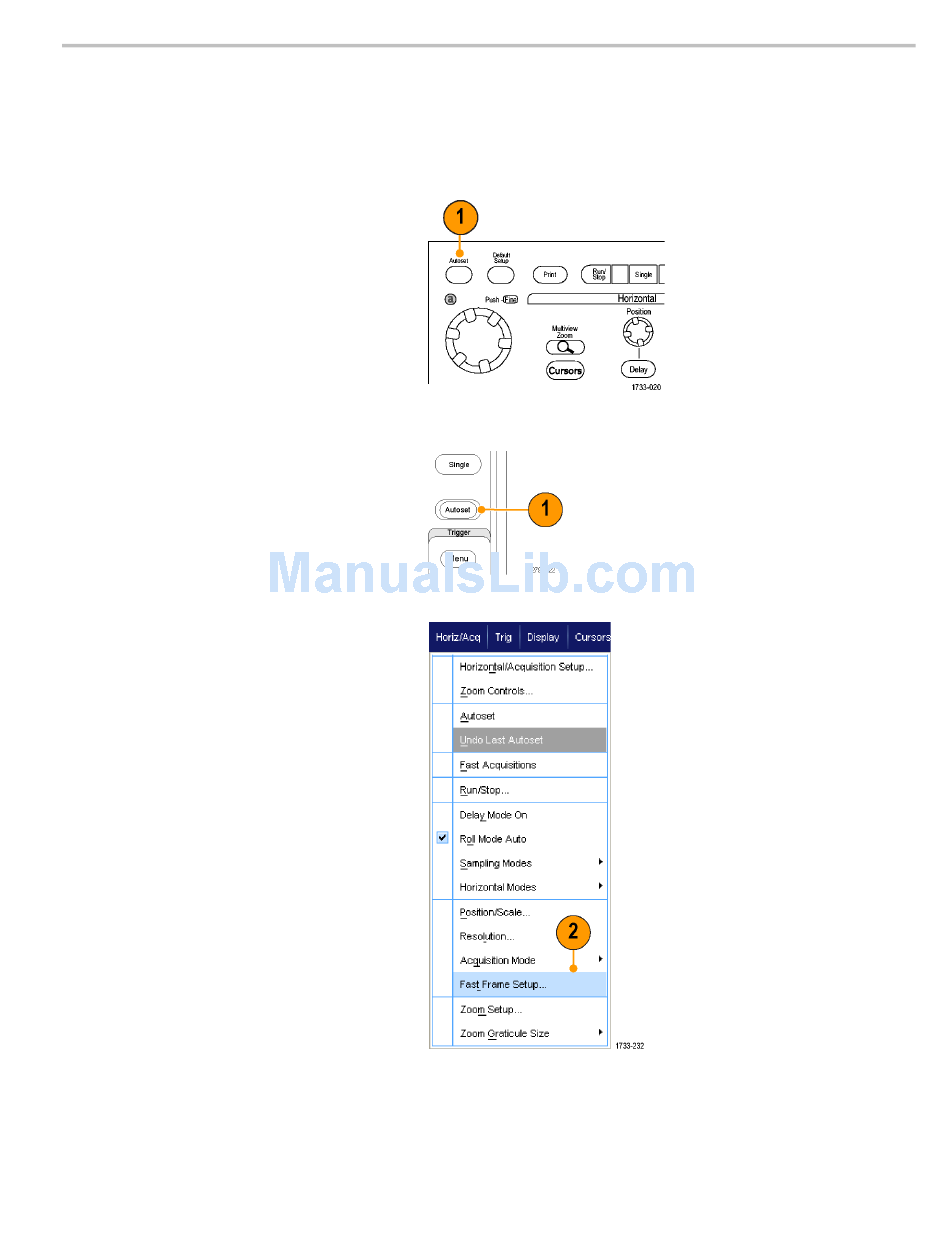

1. Push AUTOSET to set the horizontal,
vertical, and trigger controls or set the
controls manually.
2. Select Horiz/Acq > FastFrame Setup....
