Tektronix MSO70000/C Series User Manual page 79

Acquisition

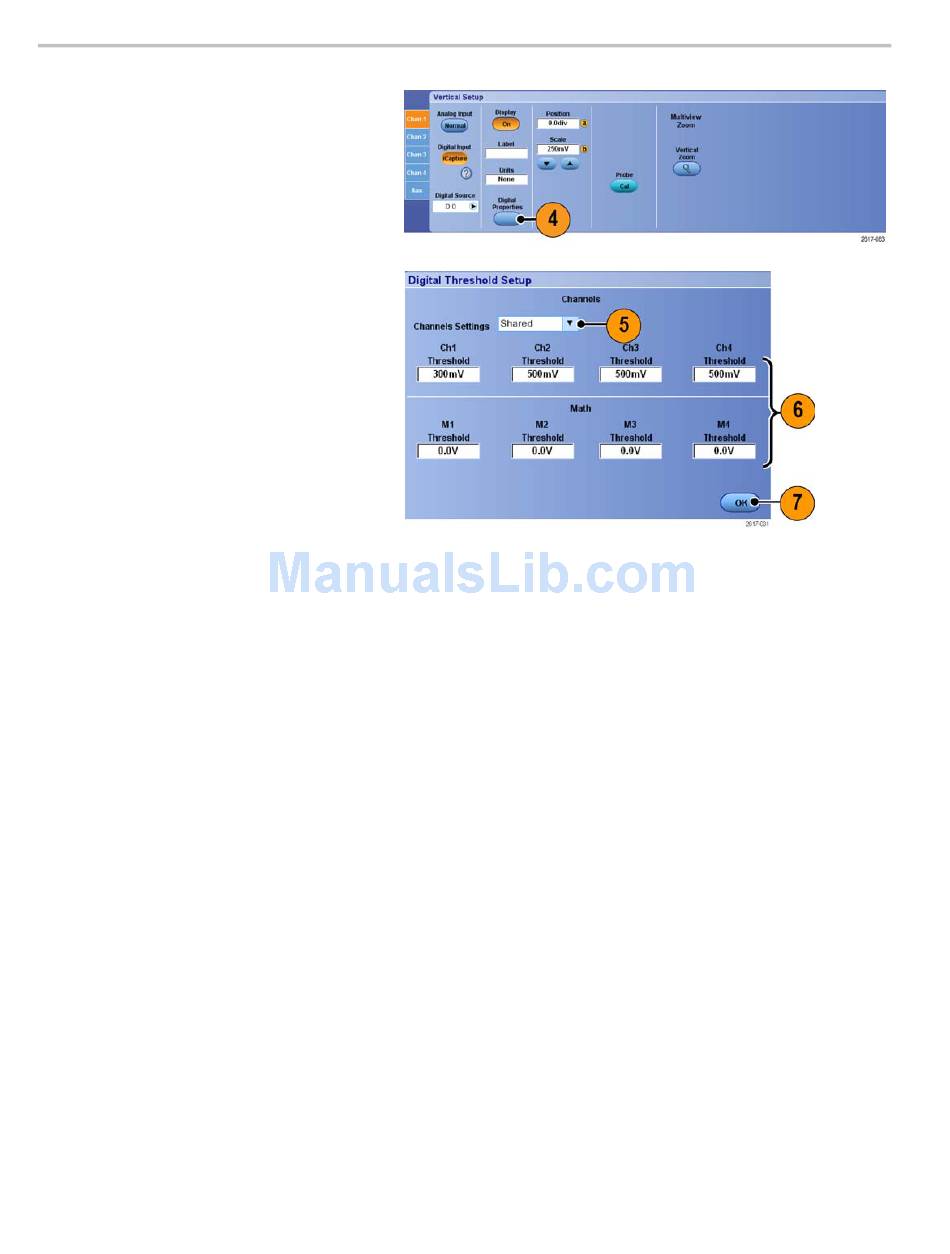

4. To set channel thresholds used when
converting an analog waveform to digital
format for inclusion in a bus, click the
Digital Properties button.
5. To choose whether to share threshold
settings or have independent threshold
settings, click Channel Settings and
select Shared or Independent from the
list.
6. For each threshold you want to set, click
the channel threshold. Set the threshold
using the keypad or multipurpose knobs.
7. When the required thresholds have been
set, click the OK button.
58 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
