Choosing a Trigger Type
Your instrument allows you to modify basic trigger parameters from the front panel or set up more advanced triggers in
the Trigger Setup control window.
NOTE.
Some trigger type selections are not available on some instruments.

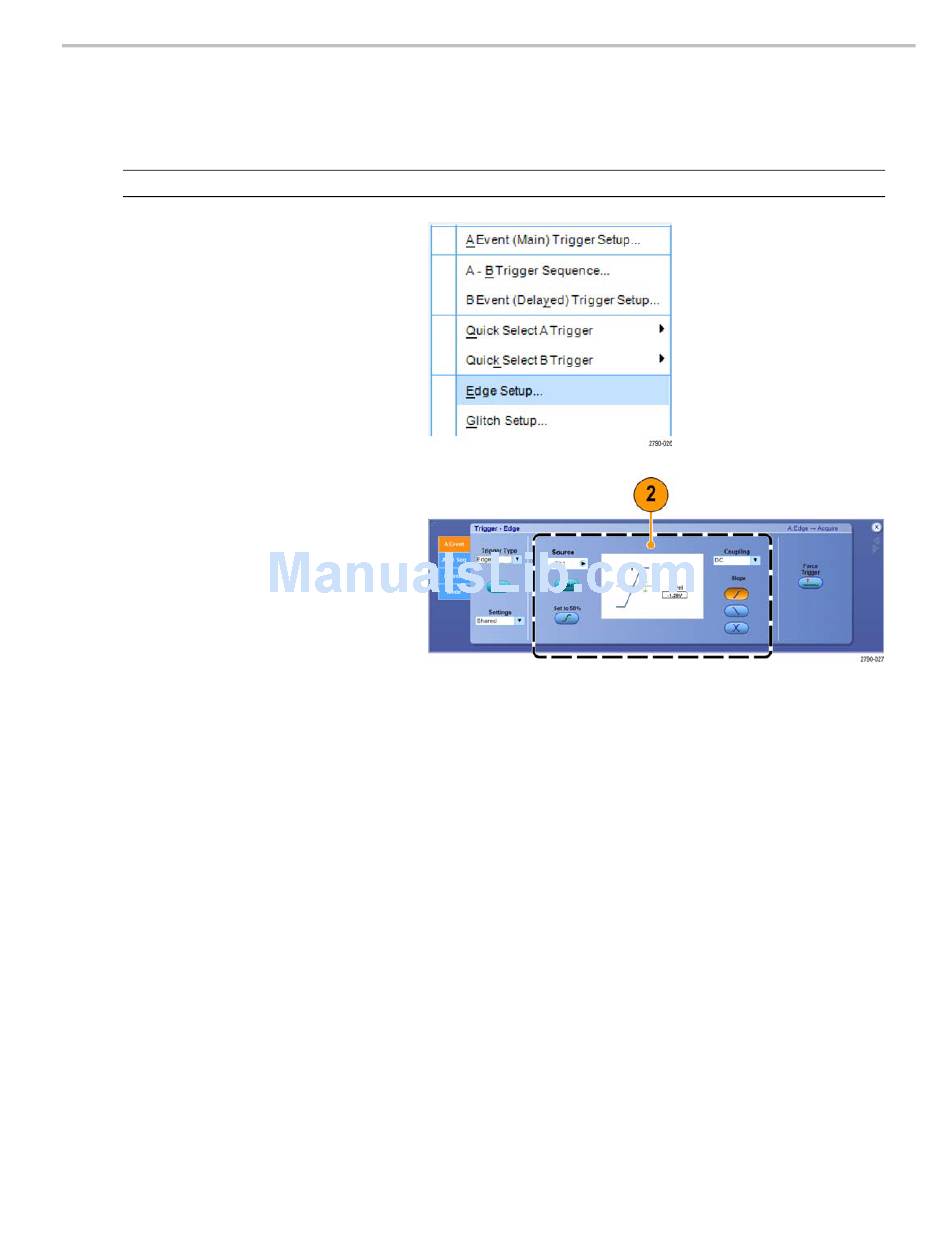

1. Select Trig > Edge Setup.
2. Set the source, slope, coupling, and
mode using the setup menu.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
