DPO7000

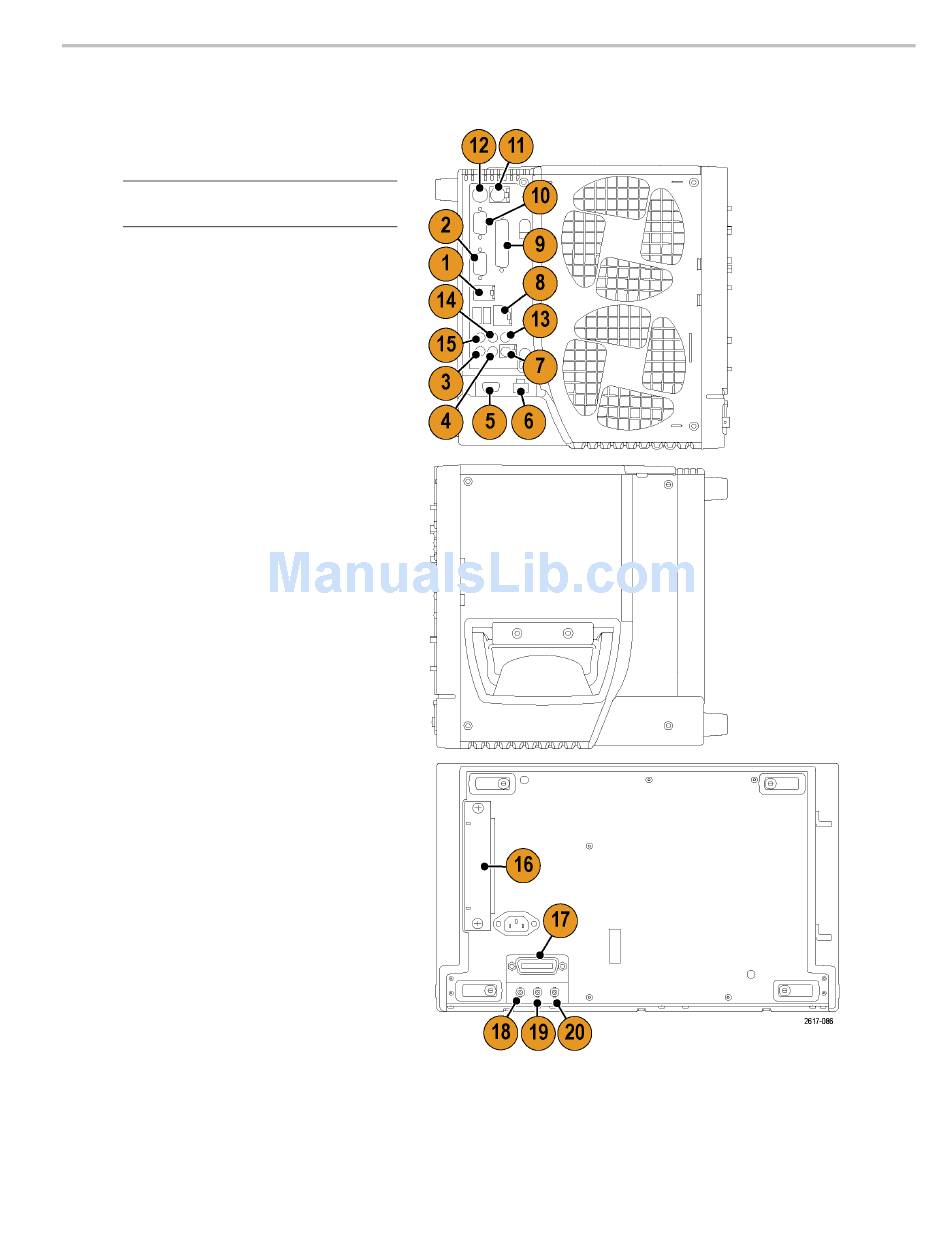

1. USB host ports
2. Video port to connect a monitor
NOTE. Some instruments may have
additional audio connectors.
3. Mic connector for microphone
4. Line Out connector for speaker
5. Oscilloscope Only XGA Out video port to
connect a monitor
6. Printer connection
7. Line In connector
8. RJ-45 LAN connector to connect to
network
9. Centronics Parallel Port
10. COM 1 serial port
11. PS-2 connector for mouse
12. PS-2 connector for keyboard
13. Rear speaker out
14. Side speaker out
15. CTR Bass speaker
16. Removable hard disk drive
17. GPIB port to connect to controller
18. Auxiliary output
19. Channel 3 output
20. External reference input
