Lock and Scroll Zoomed Waveforms

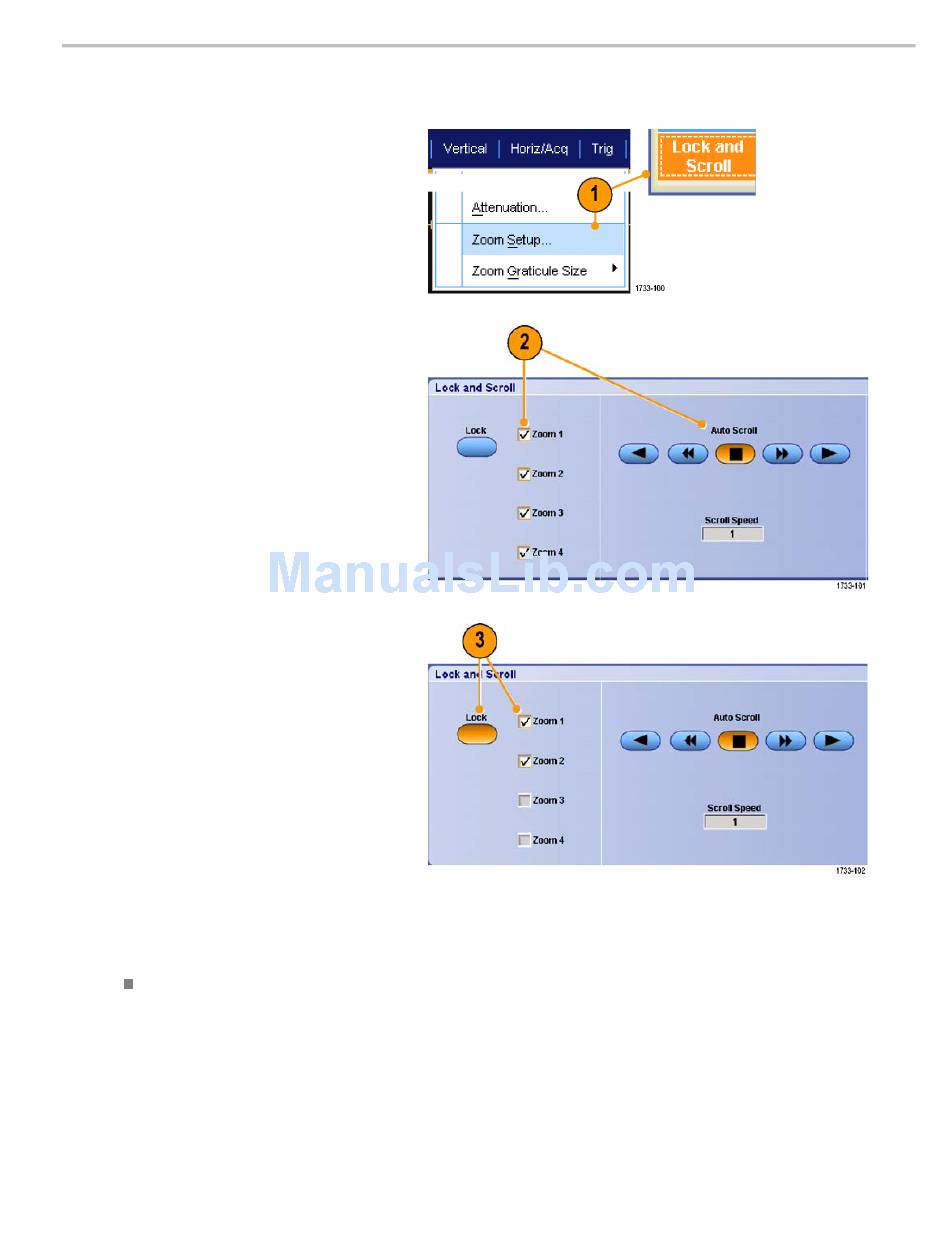

1. To use Lock and Scroll select Zoom
Setup... from either the Vertical or
Horiz/Acq menu, and then select the
Lock and Scroll tab.
2. To scroll a single zoomed area, select a
Zoom 1-4 check box, and then click an
Auto Scroll button.
3. To scroll multiple zoomed areas
simultaneously, click Lock, and then
select the Zoom1-4 check boxes that
you want to scroll through.
Locking the zoomed areas locks in their
relative horizontal position. Changing
the horizontal position of one locked and
zoomed area changes them all.
Quick Tips
When multiple zoom areas are selected but not locked, the zoom area with the highest number will autoscroll, while the
other zoom areas remain stationary.
