Using Math Waveforms - Tektronix MSO70000/C Series User Manual

Using Math Waveforms

Create math waveforms to support the analysis of your channel and reference waveforms. By combining and transforming
source waveforms and other data into math waveforms, you can derive the data view that your application requires.
Use the following procedure for predefined math equations.

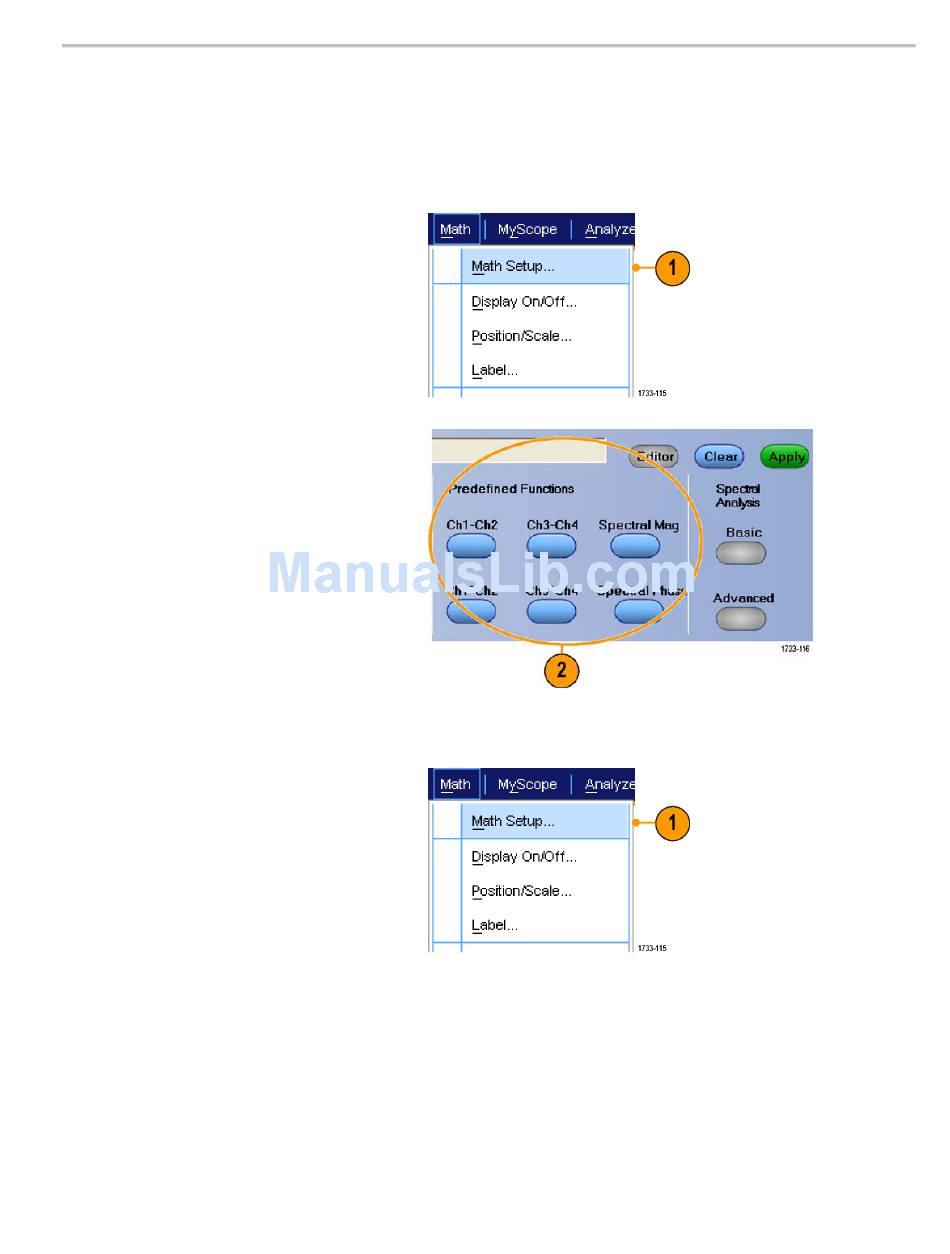

1. Select Math > Math Setup....
2. Choose one of the predefined math
equations.
Use the following procedure to build an advanced math waveform expression.
1. Select Math > Math Setup....
