Getting Acquainted with Your Instrument

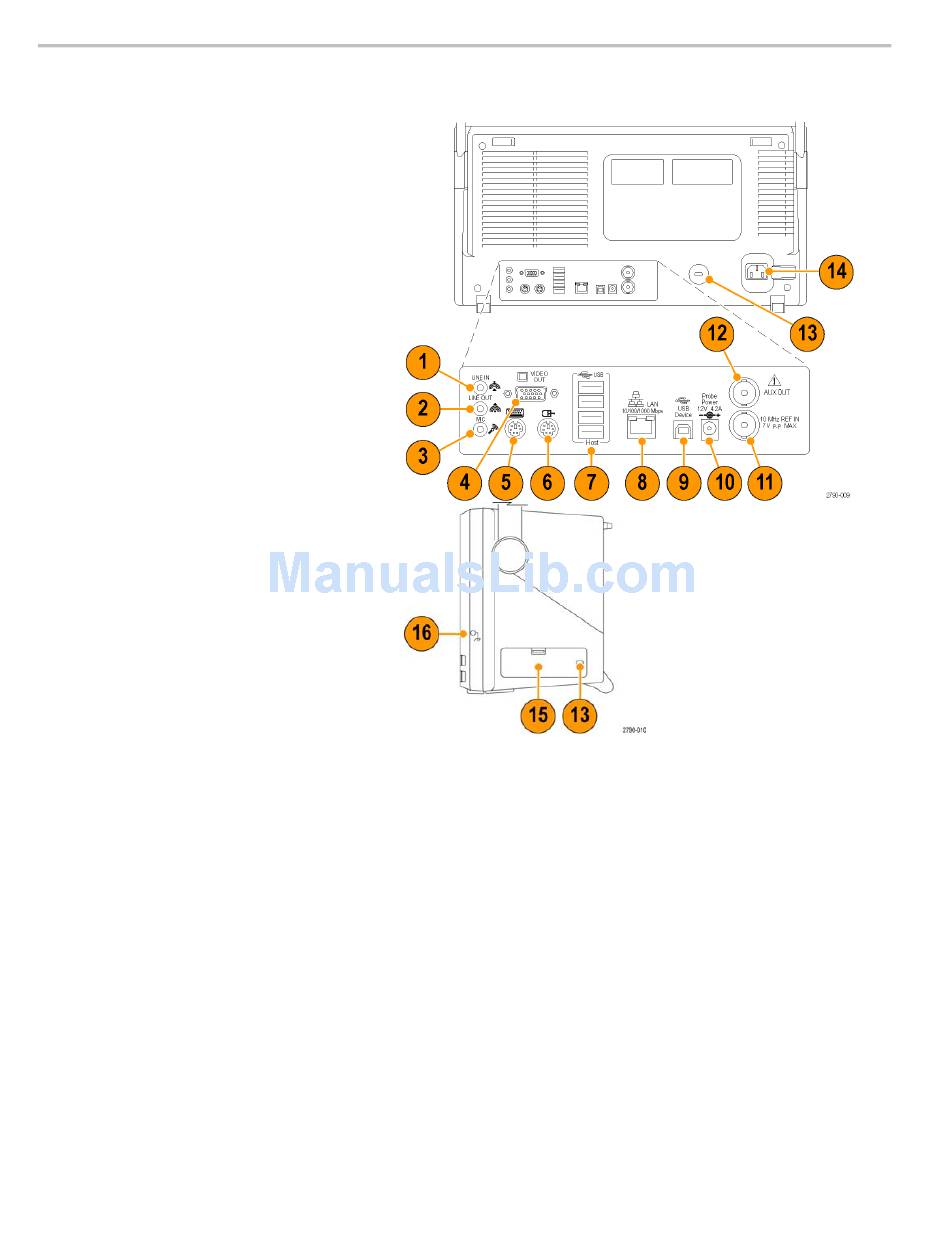

MSO5000 and DPO5000
1. Line In connector
2. Line Out connector for speaker
3. Mic connector for microphone
4. Video port to connect a monitor
5. PS-2 connector for keyboard
6.
PS-2 connector for mouse
7. USB host ports
8. RJ-45 LAN connector to connect to
network
9. USB Device port
10. Probe Power input, use 119-7465-xx
power supply
11. External reference input
12. Auxiliary output
13. Security lock input
14. AC Power input
15. Removable hard disk drive cover
16. Ground connection
20
MSO5000 and DPO5000 Series
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
