Display a Waveform

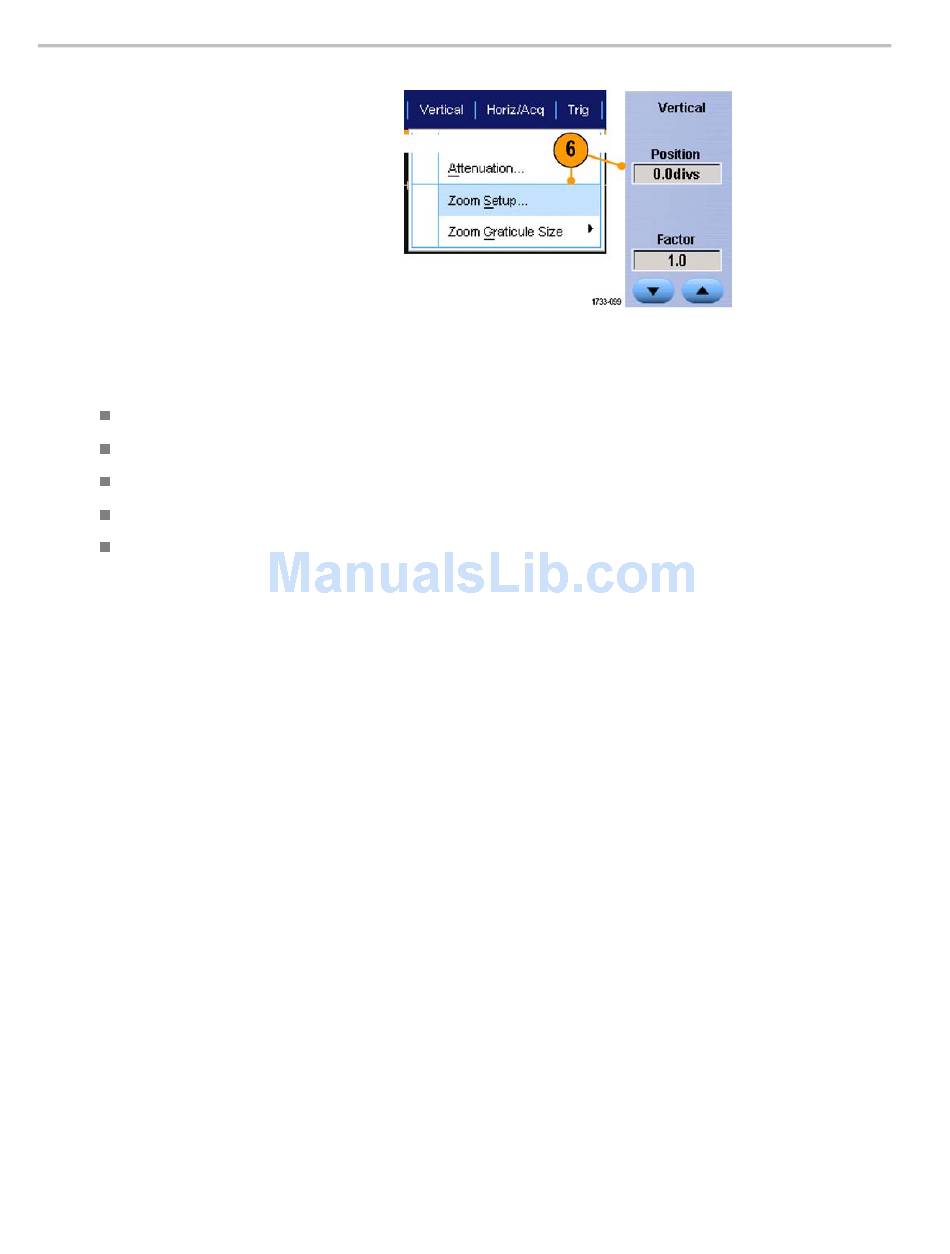

6. To adjust the zoomed area vertically,
select Vertical > Zoom Setup...,
click a vertical field, and then use the
multipurpose knobs to adjust the Vertical
Position and Factor.
Quick Tips
To clear the zoom area, click Position Factor Reset from the Zoom Setup control window.
Turn each zoom display on and off from the Zoom Setup control window.
Push the MultiView Zoom button to toggle all zoom displays on and off.
To reposition the zoomed area horizontally, click and drag the horizontal marker at the bottom of the zoom box.
Use Wave Inspector to manage long record length waveforms. (See page 103, Using Wave Inspector to Manage
Long Record Length Waveforms.)
