Display a Waveform

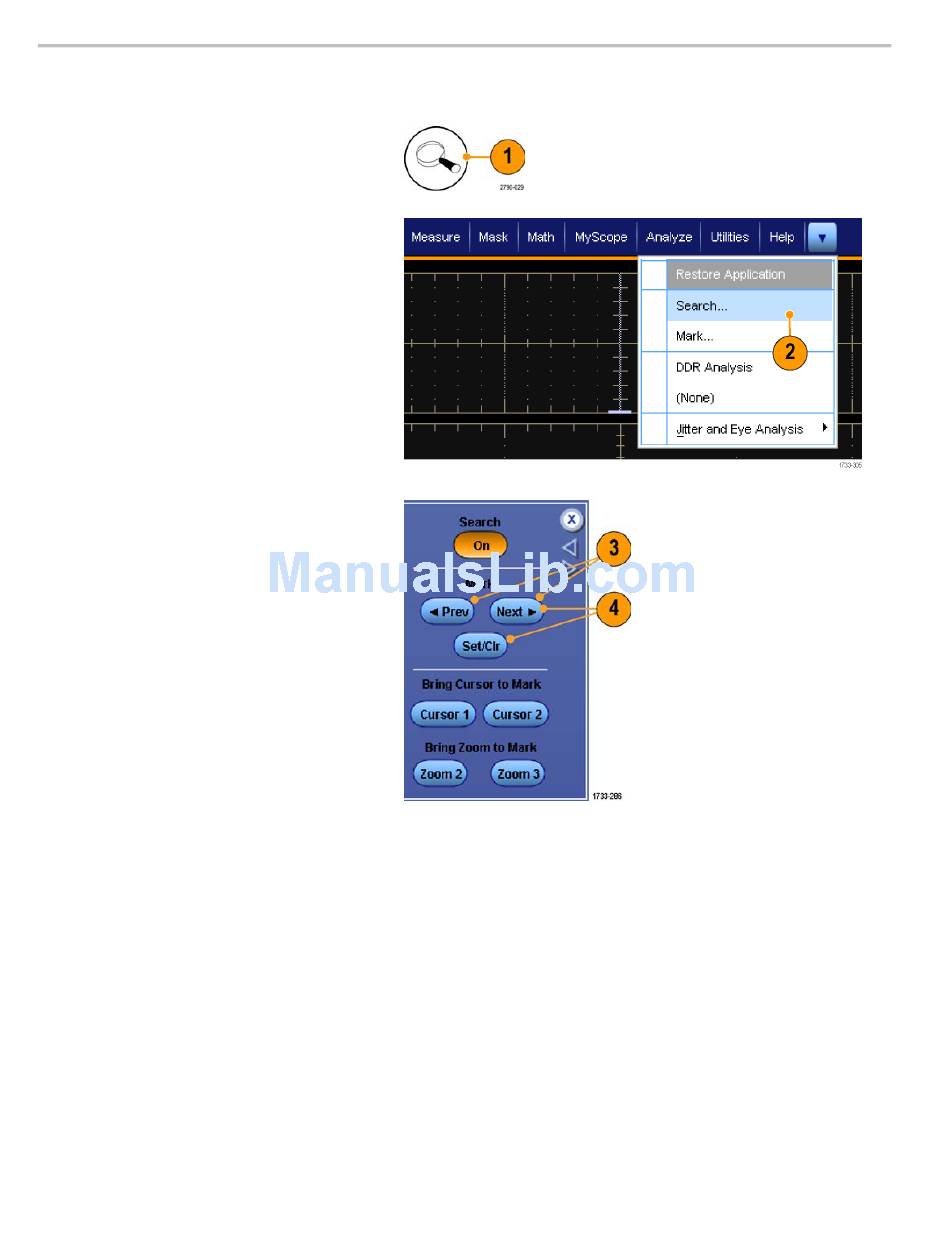

To Manually Set and Clear (delete) Marks:
1. Push Multiview Zoom. Zoom 1 is used
with marks.
2. Select Analyze > Search.
3. Move (the zoom box) to the area on
the waveform where you want to set
(or clear) a search mark by turning a
multipurpose knob.
Push the Next ( →) or Prev (←) arrow
button to jump to an existing mark.
4. Push Set Clr or the front panel Set/Clear
button.
If no search mark is at the screen center,
the instrument will add one.
When a mark is created, the horizontal
zoom factor is saved. When you use
Next or Prev to move between marks,
the zoom factor is restored.
