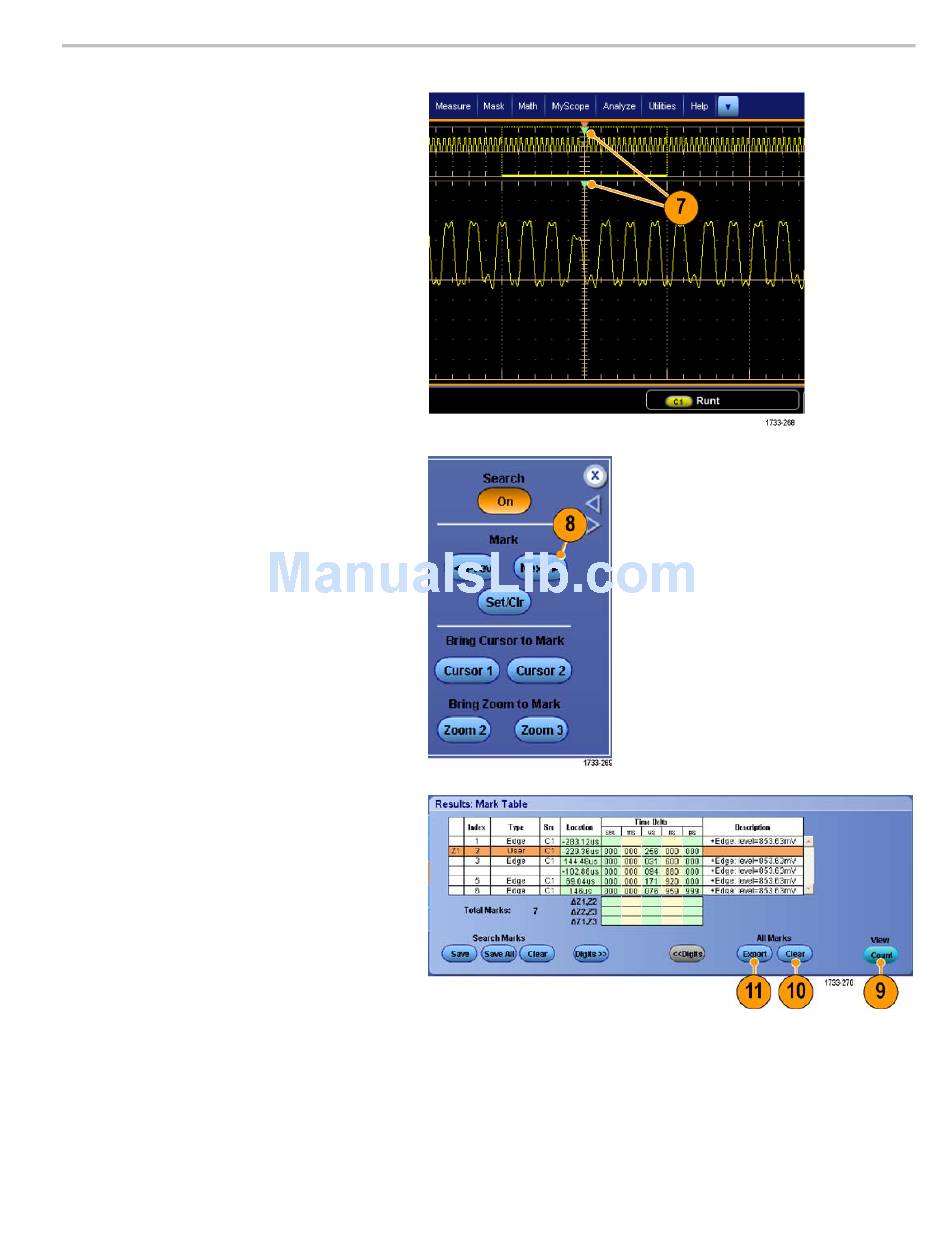

7. On the screen, triangles show the
location of automatic marks and triangles
with a white outline show the custom
(user-defined) locations. These appear
on both normal and zoomed waveform
views.
8. Quickly investigate your waveform by
moving from mark to mark with the Next
( →) or Prev (←) arrow button. No other
adjustments are needed.
9. To toggle between the display of search
events counts or Marks time, select the
Results tab and press View Count.
10. To clear all marks from the table, press
All Marks Clear.
11. To export the Mark Table to a file, press
All Marks Export.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
Display a Waveform
109
