Getting Acquainted with Your Instrument

Getting Acquainted with Your Instrument

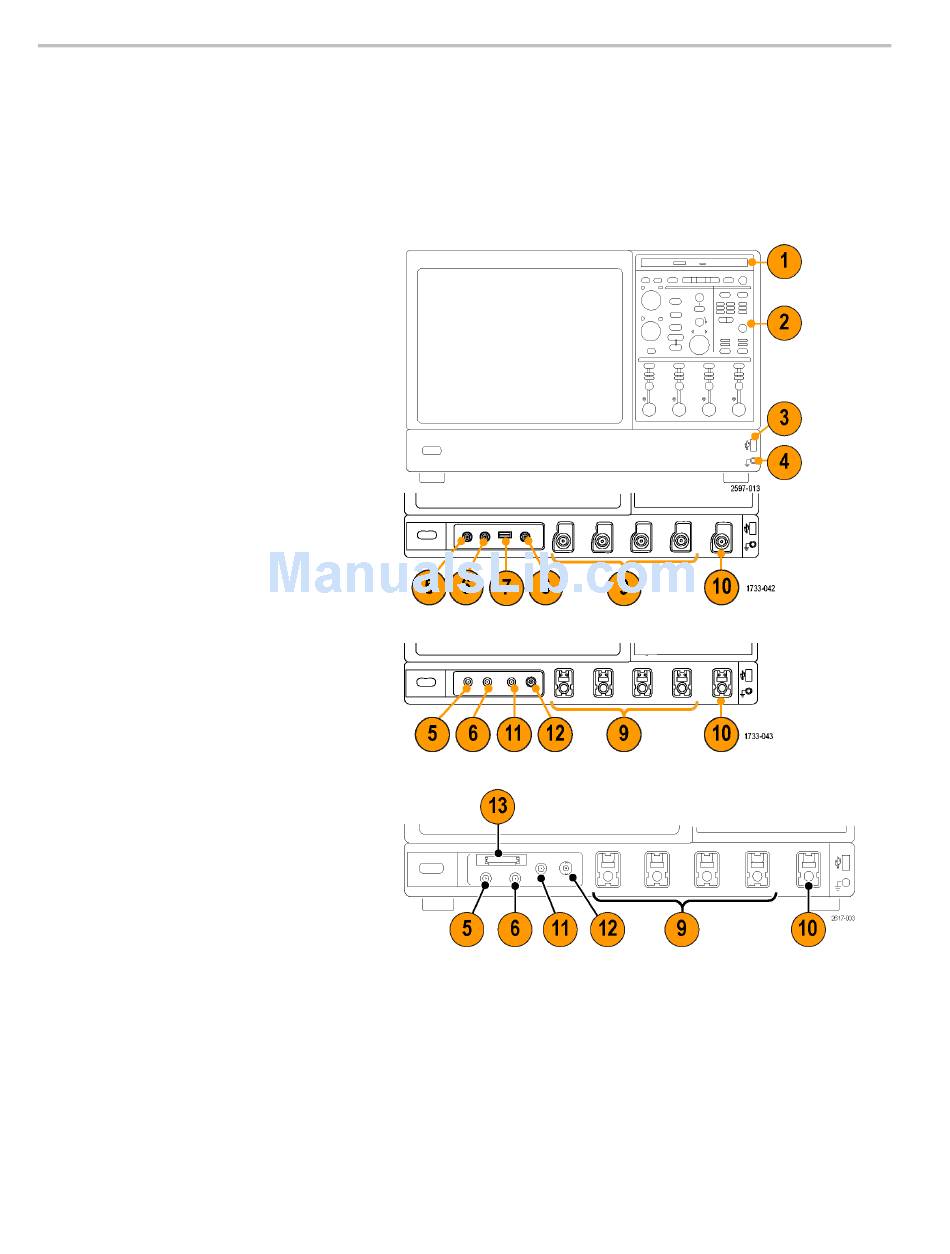

Front Panel

MSO70000/C, DSA7000B/C, DPO70000B/C, and DPO7000
1. DVD/CD-RW drive
2. Front panel controls
3. USB port
4. Ground terminal
5. Recovered data output (not available on
DPO7104 and DPO7054)
6. Recovered clock output (not available on
DPO7104 and DPO7054)
7. Probe compensation output
8. Probe calibration output
9. Channel 1–4 input
10. Auxiliary Trigger input
11. Fast Edge output
12. DC Probe Cal output
13. Logic probe input
16
DPO7000 Series
DSA70000B/C and DPO70000B/C Series
MSO70000/C Series
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
