Side And Rear Panels - Tektronix MSO70000/C Series User Manual

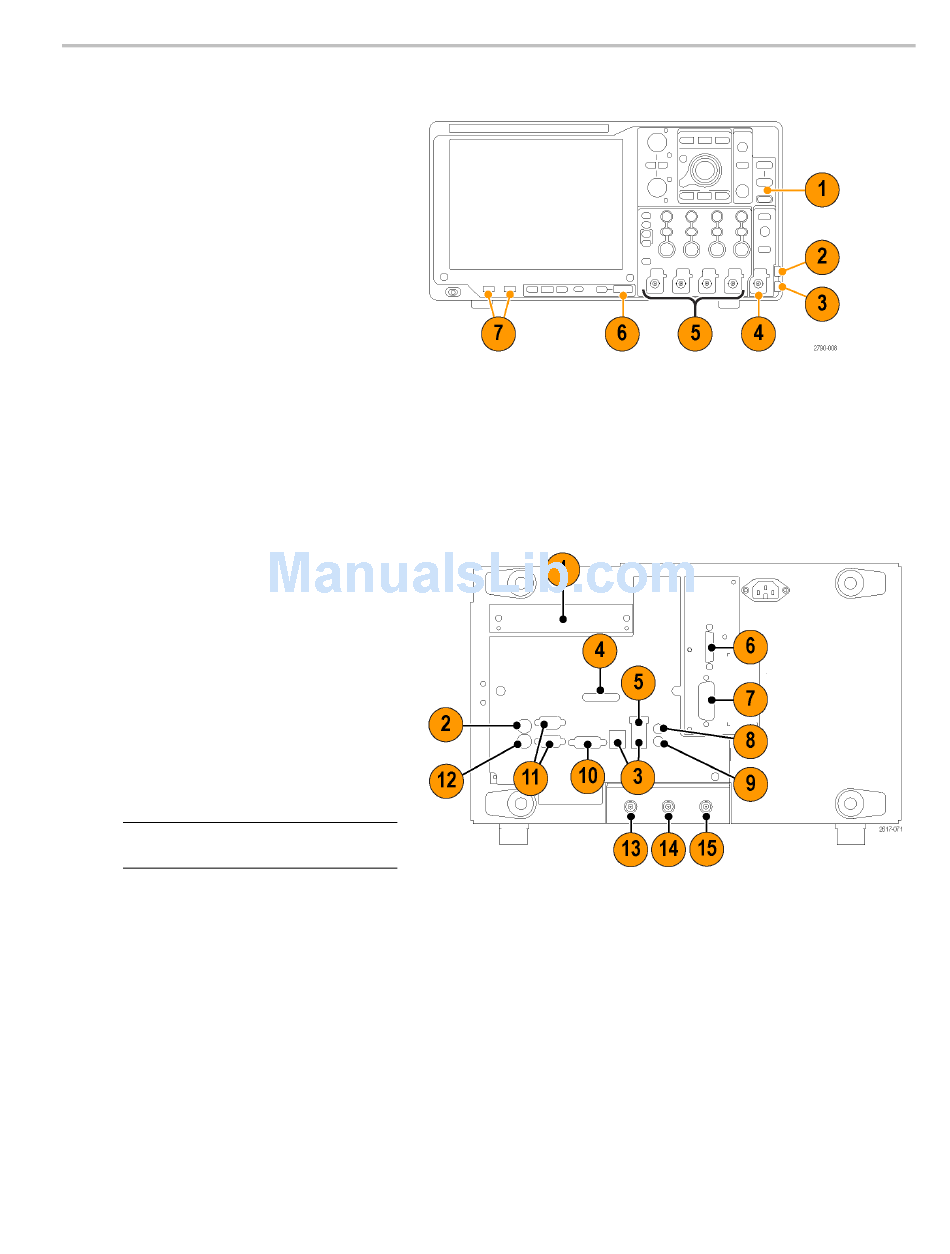

MSO5000 and DPO5000 Series
1. Front panel controls
2. Ground terminal
3. Probe compensation output
4. Auxiliary Trigger input
5. Channel 1–4 inputs
6. Logic probe input
7. USB ports

Side and Rear Panels

MSO70000/C, DSA70000B/C, and DPO70000B/C
1. Removable hard disk drive
2. PS-2 connector for mouse
3. USB host ports
4. Passive eSATA Port
5. RJ-45 LAN connector to connect to
network
6. TekLink connector
7. GPIB port to connect to controller
8. Line Out connector for speaker
NOTE. Some instruments may have
additional audio connectors.
9. Mic connector for microphone
10. DVI-I Video port
11. COM 1 and COM 2 serial ports
12. PS-2 connector for keyboard
13. Auxiliary output
14. Reference output
15. External reference input
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
MSO5000 and DPO5000 Series
MSO70000/C, DSA70000B/C, and DPO70000B/C Series
Getting Acquainted with Your Instrument
17
