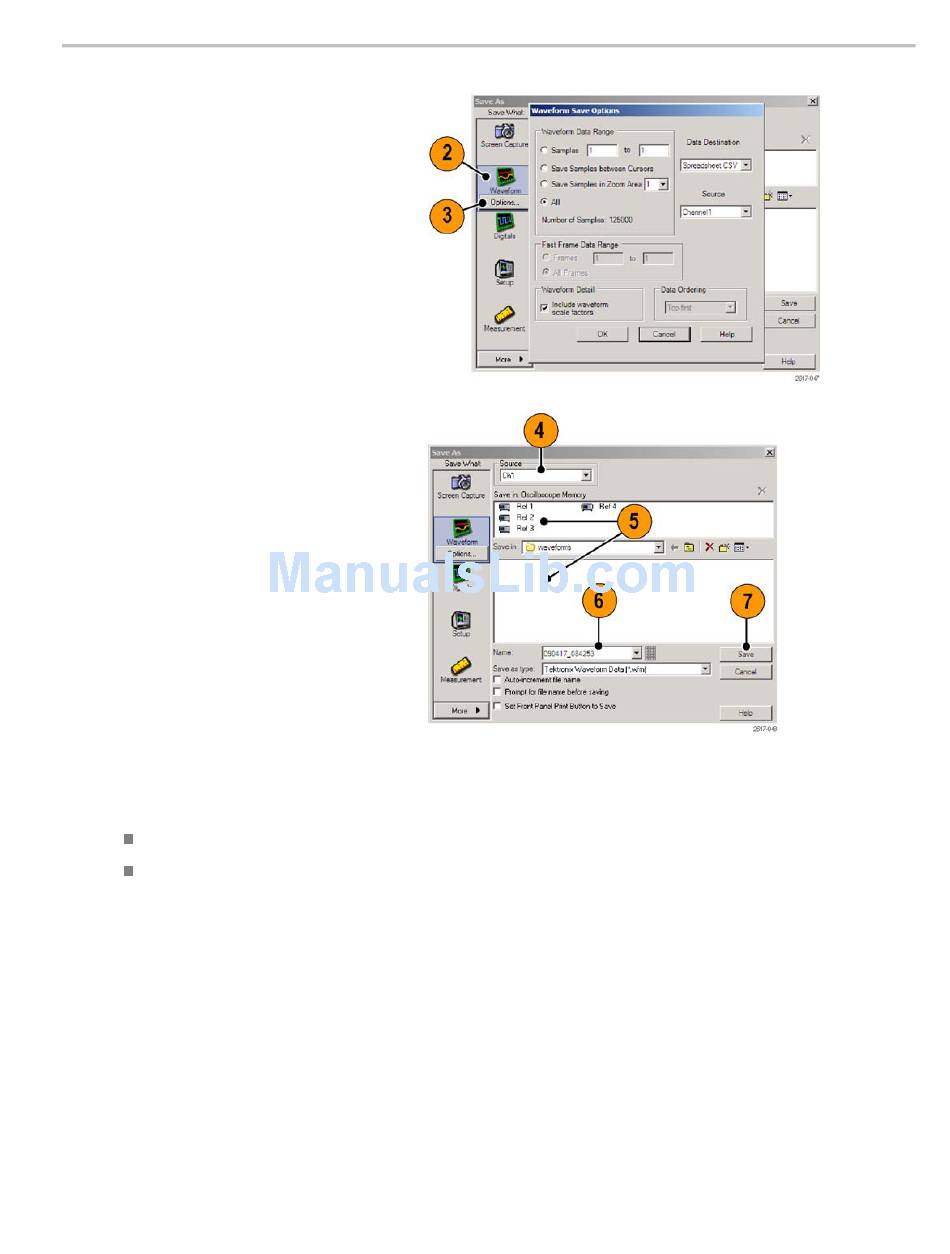

2. Click Waveform.
3. Click Options... to specify the Waveform
Data Range, FastFrame Data Range,
Waveform Detail, Data Destination,
Source, or Data Ordering; otherwise,
skip to step 4.
4. Select the Source.
5. You can either save the waveform as a
reference waveform in the instrument
memory or as a .wfm file in a Windows
directory. To save the waveform as a
reference, select Ref 1–4. To save as a
.wfm file, select the location where you
want to save the waveform.
6. If you are saving as a .wfm file, type in a
file name, or use the default.
7. Click Save.
Quick Tips
Select Auto-increment file name to save similar waveforms without having to retype the entire name.
To quickly save multiple waveforms, select Set Front Panel Print Button to Save, and then click Save. You can now
save a waveform by pushing the front-panel Print button.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
Saving and Recalling Information
145
