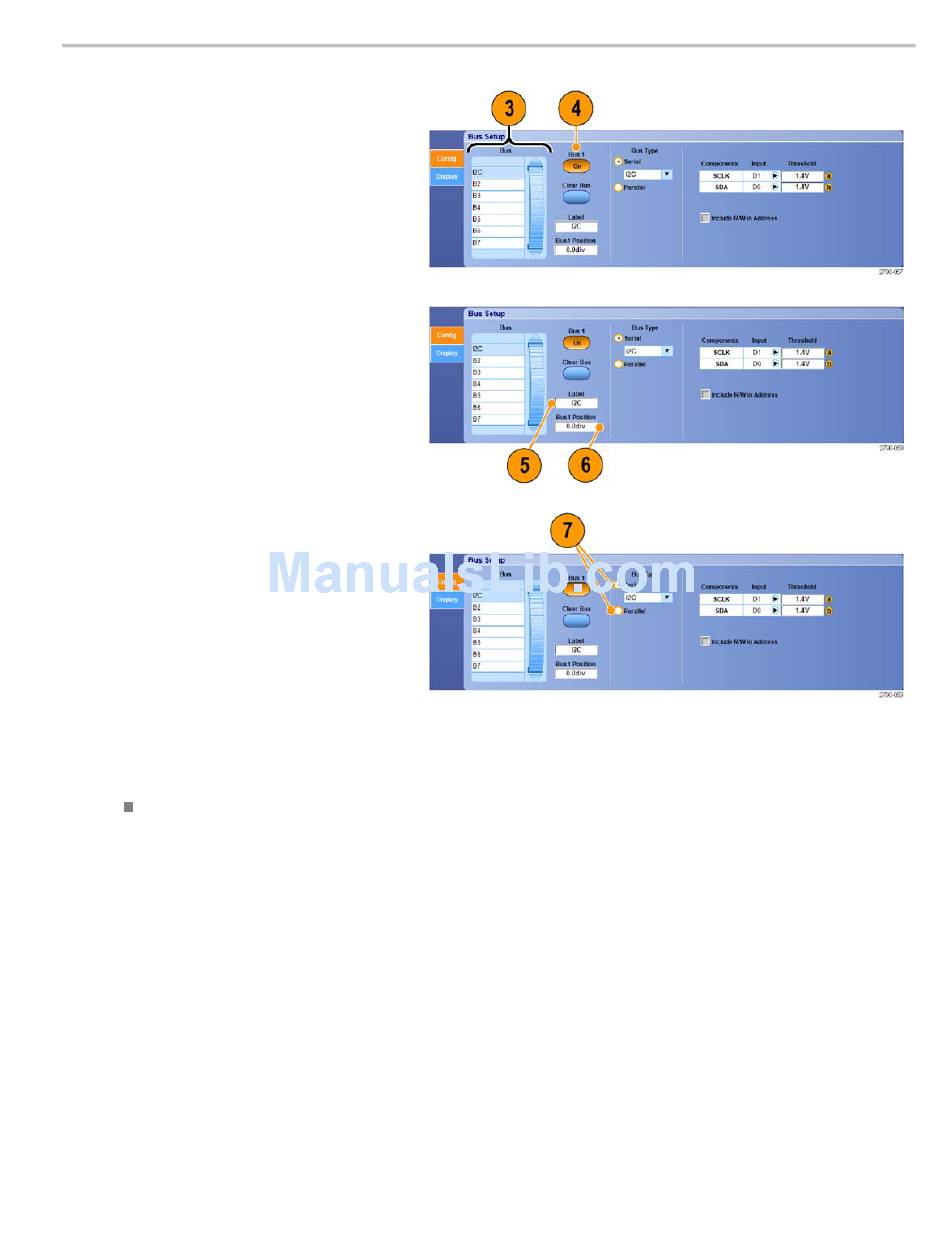

3. Scroll to, and then select the bus to set
up.
4. To toggle the display of the bus on or off,
click the Bus button.
5. To change the default label of the bus,
click Label and enter a new label using
the keyboard.
6. To change the displayed position of the
bus, click Bus Position and use the
keyboard or multipurpose knob to enter
a new bus position.
7. To select the bus type, click Bus Type
Serial or Parallel.
You can set up each bus type.
(See page 51, Set Up a Serial Bus.) or (See
page 53, Set Up a Parallel Bus.)
Quick Tips
Position a bus or waveform by clicking on the bus or waveform handle and dragging the handle to the desired position.
Set Up a Serial Bus
You can set serial bus parameters. You can use digital channels in bus definitions on MSO Series instruments only.
