Getting Acquainted with Your Instrument

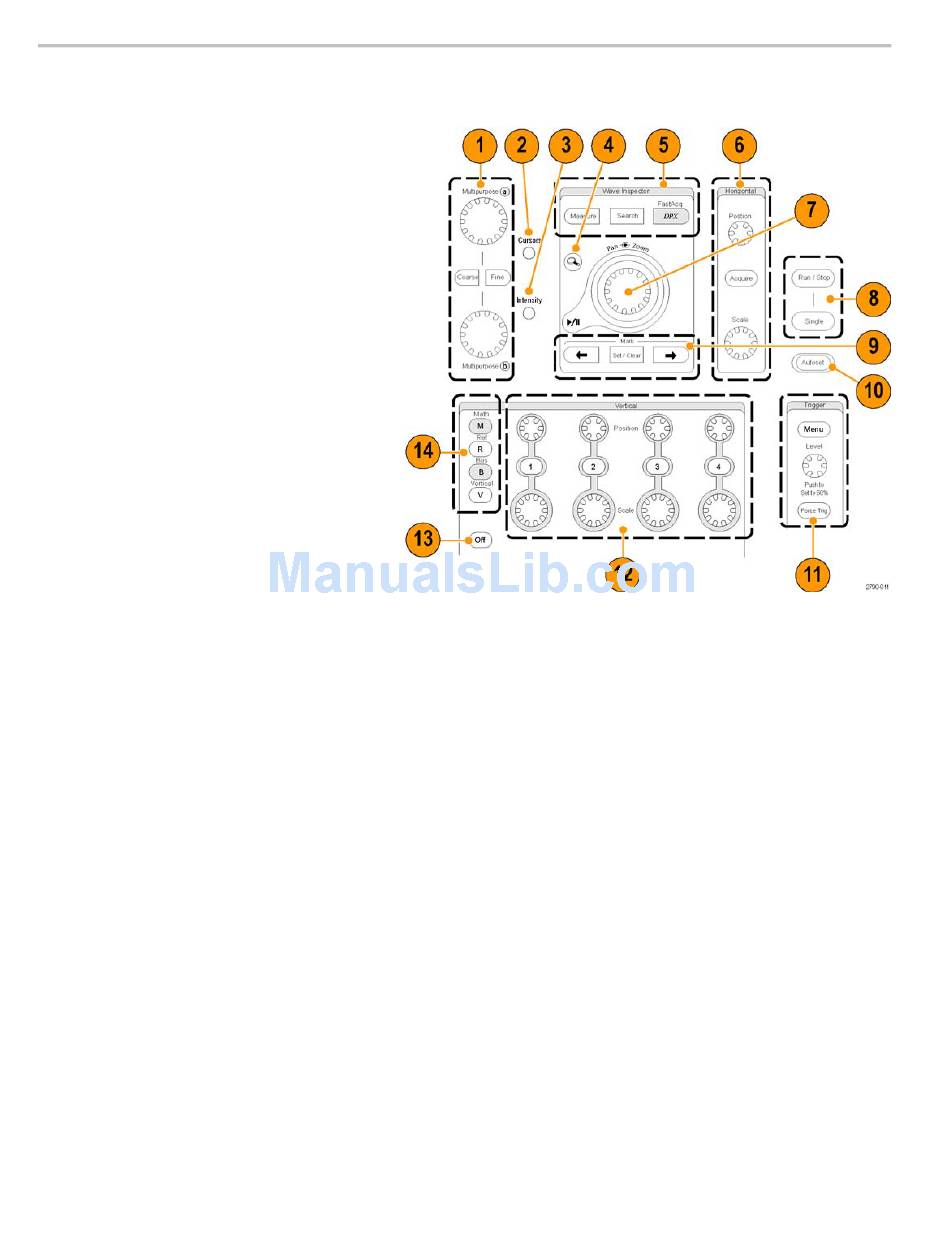

MSO5000 and DPO5000
1. Turn to adjust parameters selected from
the screen interface. Push Fine to select
fine adjustment, push Course to select
course adjustment.
2. Push to turn cursors on or off.
3. Push to adjust waveform intensity using
a Multipurpose knob.
4. Push to turn on MultiView Zoom and add
a magnified graticule to the display.
5. Push to perform automated
measurements, search through
an acquisition for user-defined
events/criteria, or start or stop fast
acquisitions.
6. Horizontally scale, position, and set the
horizontal and acquisition parameters of
all waveforms.
7. Turn the inner zoom knob to control the
zoom factor. Turn the outer pan knob
to scroll the zoom window through the
acquired waveform. Push the play-pause
button to start or stop the automatic
panning of a waveform. Control the
speed and direction with the pan knob.
8. Use to start and stop acquisition or start
a single acquisition sequence.
9. Use to search and mark waveforms, to
establish or delete a waveform mark, or
to jump to the previous or next waveform
mark.
10. Push to automatically set up the vertical,
horizontal, and trigger controls based on
selected channels.
