Application Examples

Triggering on a Video Signal

The instrument supports triggering on NTSC, SECAM, PAL, and high definition signals.
To trigger on the video fields:
NOTE. The video trigger type is available only on DPO7000, MSO5000, and DPO5000 Series instruments.

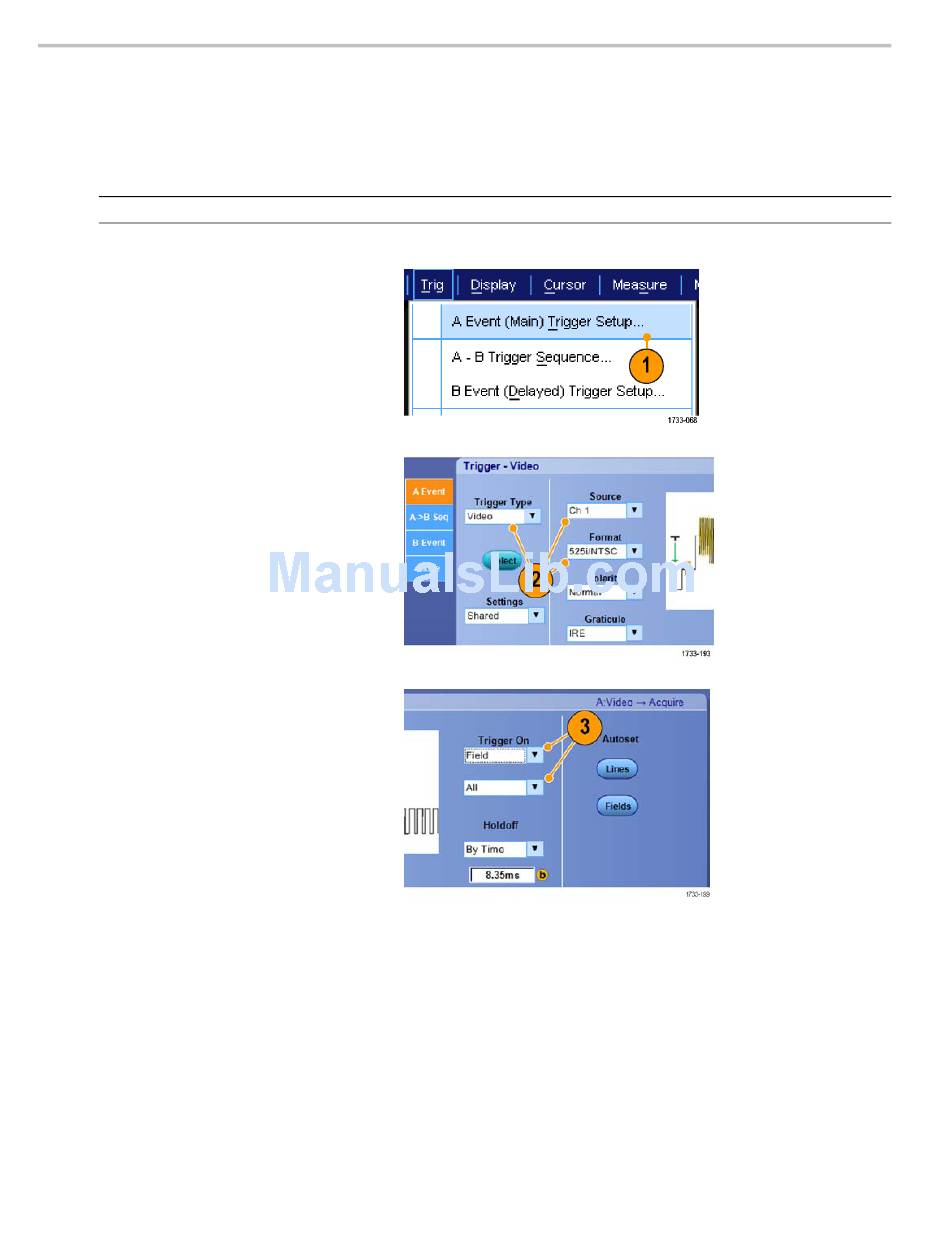

1. Select Trig > A Event (Main) Trigger
Setup....
2. Set the A trigger type and source in the
A Event tab.
Select Format > 525i/NTSC.
3. Select Trigger On > Field.
Select Odd, Even, or All fields.
166 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
