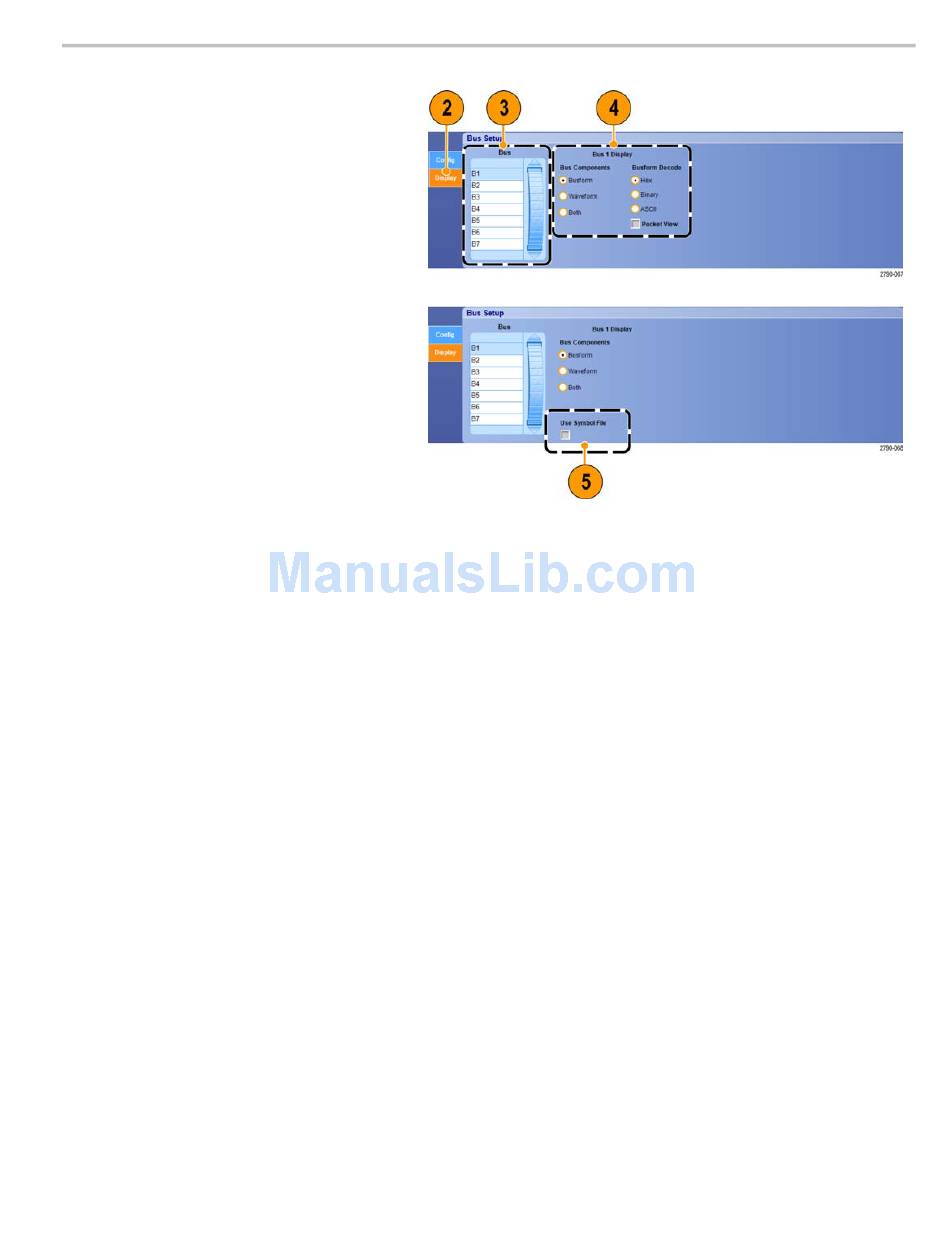

2. Select the Display tab.
3. To select the bus, scroll to display the
bus, and then select the bus.
4. To select the bus style and decoding,
click the desired bus style and decoding
buttons.
5. If using a symbol table, check Use
Symbol. Click Lookup Table and use
the keyboard to enter the full path to the
table file, or click Browse and browse to
the symbol table file.
For some buses other settings are
available. Set the other settings as
appropriate for your bus.
See the online help for additional help
setting up a bus.
