Appendix
TPP0500 and TPP1000 500 MHz and 1 GHz 10X Passive Probes Instructions
071-2809-xx
Copyright © Tektronix, Inc. All rights reserved.
Operating Information
The TPP0500 & TPP1000 10X Passive Probes are compact passive probes with 10X attenuation that are designed for use
with Tektronix MSO/DPO4000B & 5000 Series oscilloscopes.
The probes have no user- or Tektronix-serviceable parts.
Connecting the Probe to the Oscilloscope

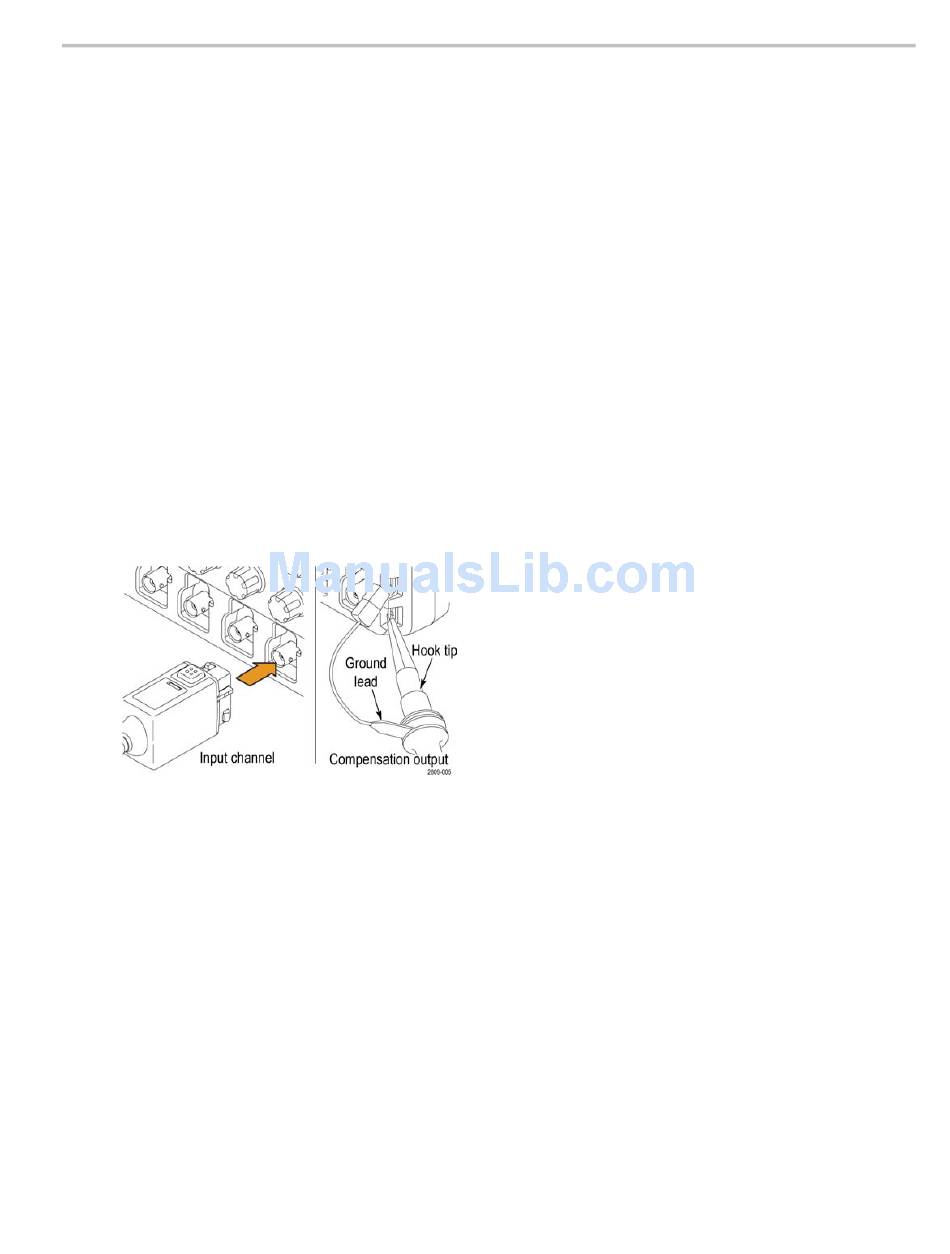

Connect the probe as shown in the illustrations below.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual
Appendix
171
